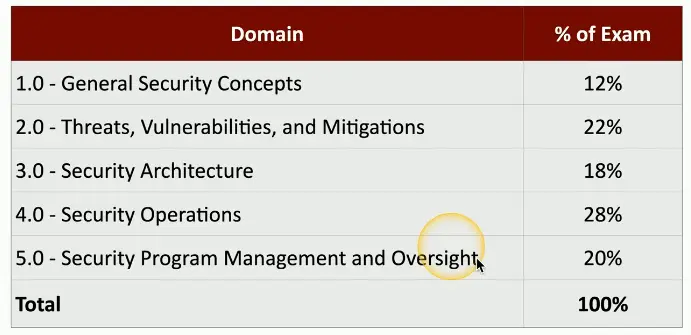

How to Pass Your SY0-701 Security+ Exam
The CompTIA Security+ Advantages
CompTIA stands for Computing Technology Industry Association.
- The most popular
- builds a solid foundation
- Many organizations require some type of certifications
- Knowledge and satisfaction
- Recognition in over 100 countries
- Available in different languages
About this Training Course
- SY0-701
- Released in Nov. 7, 2023
- Smaller video duration
- Quick and easy
- Follows the CompTIA exam objectives
- 90 minutes, max of 90 questions
- Passing score: 750 on a scale of 100-900

Exam Questions
- Multiple Choice
- Very straightforward
- Single, multiple answers
- Performance based
- Complete a task
- Matching, sorting, drag-and-drop etc.
Security Controls
- Security risks are out there
- Many categories and types to consider
- Assets are also varied
- Data, physically property, computer systems
- Prevent security events, minimize the impact, and limit the damage
Control Categories
- Technical Controls
- Controls implemented using systems
- OSes controls
- Firewalls, anti-viruses
- Managerial Controls
- Admin controls associated with security design and implementation
- Security policies, SOPs
- Operational Controls
- Controls implemented by people instead of systems
- Security guards, awareness programs
- Physical Controls
- Limit physical access
- Guard shack
- Fences, locks
- Badge readers
Preventive Control Types
- Preventive
- Block access to a resource
- You shall not pass
- Prevent access
- Firewall rules
- Follow security policy
- Guard shack checks all identification
- Enable door locks
Deterrent Control Types
- Deterrent
- Discourage an intrusion attempt
- Doesn’t directly prevent access
- Make an attacker think twice
- Application splash screens
- Threat of demotion
- Front reception desk
- Posted warning signs
Detective Control Types
- Detective
- Identify and log an intrusion attempt
- May not prevent access
- Find the issue

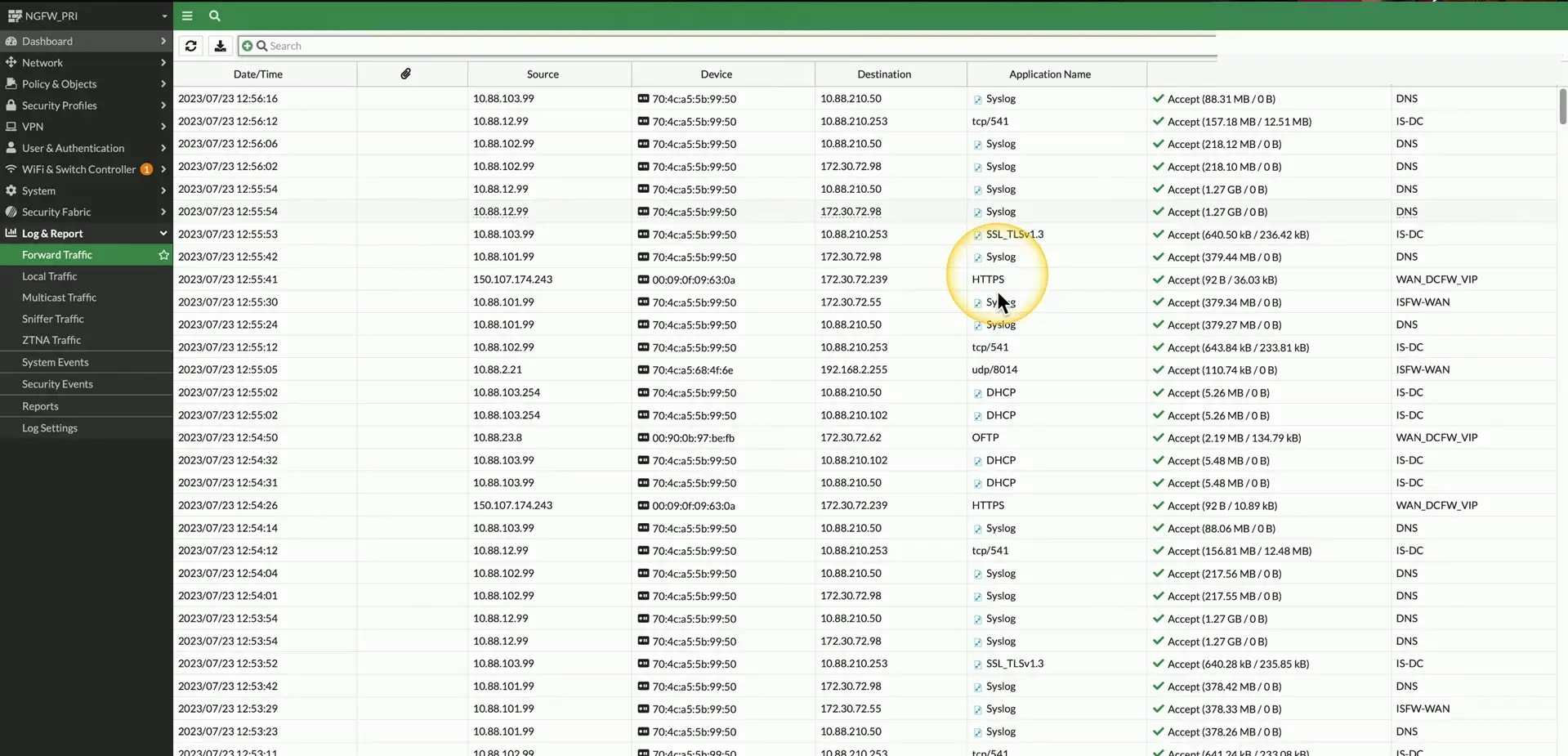

- Collect and review system logs
- Review login reports
- Regularly patrol the property
- Enable motion detectors
Corrective Control Types
- Corrective
- Apply a control after an event has been detected
- Reverse the impact of an event
- Continue operating with minimal downtime
- Correct the problem
- Restoring from backups can mitigate a ransomware infection
- Create policies for reporting security issues
- Contact law enforcement to manage criminal activity
- Use a fire extinguisher
Compensating Control Types
- Compensating
- Control using other means
- Existing controls aren’t sufficient
- May be temporary
- Prevent the exploitation of a weakness
- Firewall blocks a specific application instead of patching the app
- Implement a separation of duties
- Require simultaneous guard duties
- Generator used after power outage
Directive Control Types

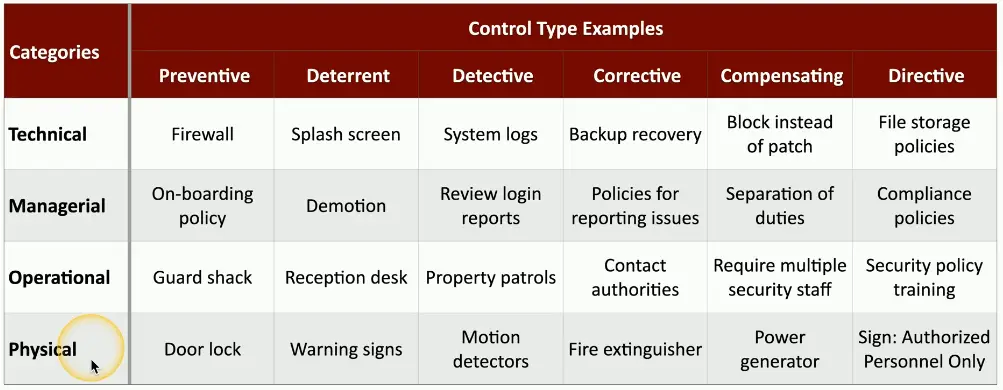

Managing Security Controls
- These are not inclusive lists
- There are many categories of control
- Some organizations will combine types
- There are multiple security controls for each category and type
- Some security controls may exist in multiple types or categories
- New security controls are created as systems and processes evolve
- Your organization may use very different controls
Security Concepts

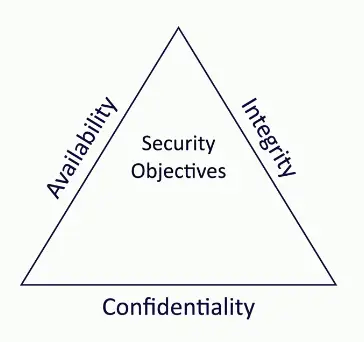

The CIA Triad
- Combination of principles
- The fundamentals of security
- Sometimes referenced as the AIC Triad
- Confidentiality
- Prevent disclosure of information to unauthorized individuals or systems
- Integrity
- Messages can’t be modified without detection
- Availability
- Systems and networks must be up and running

1. Confidentiality
- Certain information should only be known to certain people
- Prevent unauthorized information disclosure
- Encryption
- Encode messages so only certain people can read it
- Access Controls
- Selectively restrict access to a resource
- Two-factor Authentication
- Additional confirmation before information is disclosed
2. Integrity
- Data is stored and transferred as intended
- Any modification to the data would be identified.
- Hashing
- Map data of an arbitrary length to data of a fixed length
- Digital Signatures
- Mathematical scheme to verify the integrity of data
- Certificates
- Combine with a digital signature to verify an individual
- Non-repudiation
- Provides proof of integrity, can be asserted to be genuine!
3. Availability
- Information is accessible to authorized users
- Always at your fingertips

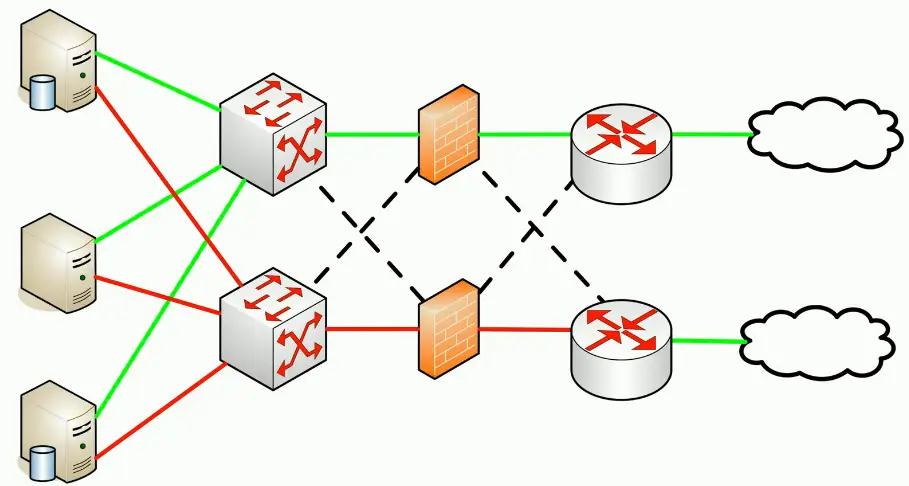

- Redundancy
- Build services that will always be available
- Fault Tolerance
- System will continue to run, even when a failure occurs
- Patching
- Stability
- Close security holes
Non-repudiation
- You can’t deny what you have said
- There is no taking it back
- Signs a contract
- Your signature adds non-repudiation
- You really did sign the contract
- Others can see your signature
- Adds a different perspective for cryptography
- Proof of integrity
- Proof of origin, with high assurance of authenticity

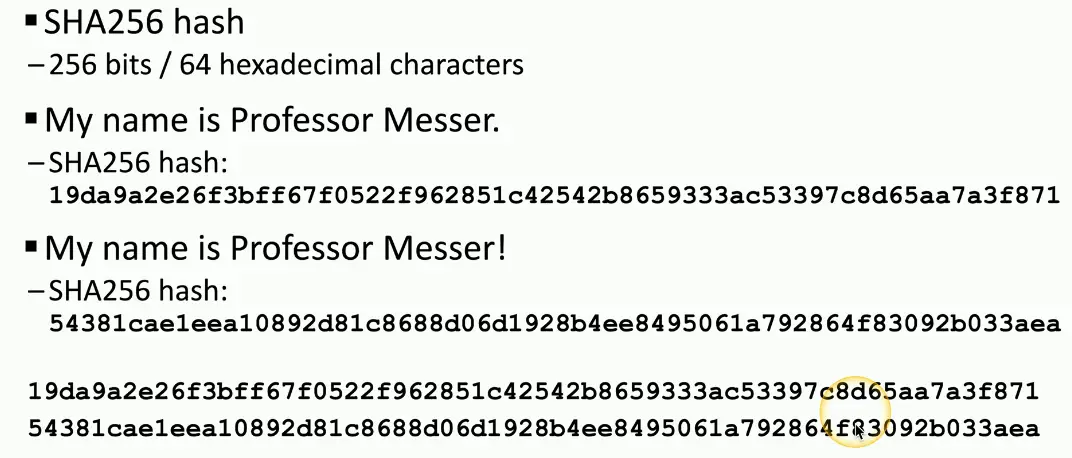

Proof of integrity
- Verify data doesn’t change
- The data remains accurate and consistent

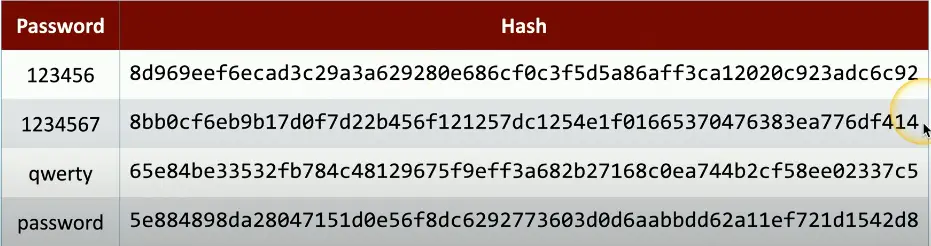

- In cryptography, we use a hash
- Represents data as a short string of text
- A message digest, a fingerprint
- If the data changes, the hash changes
- If the person changes, you get a different fingerprint
- Does not necessarily associate data with an individual
- Only tells you if the data has changed

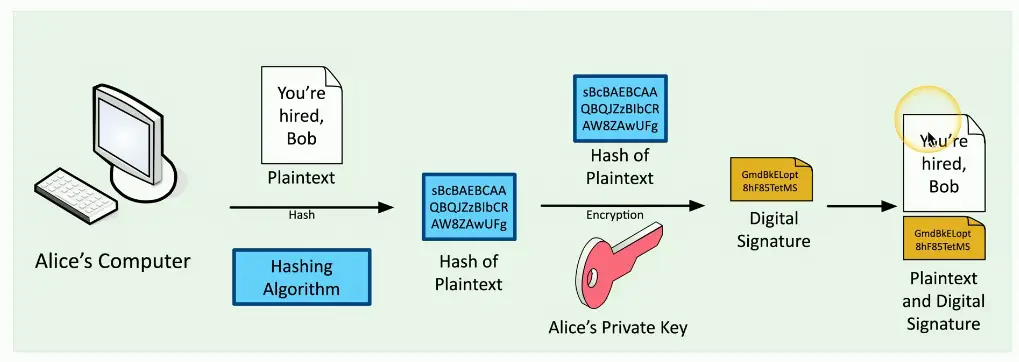

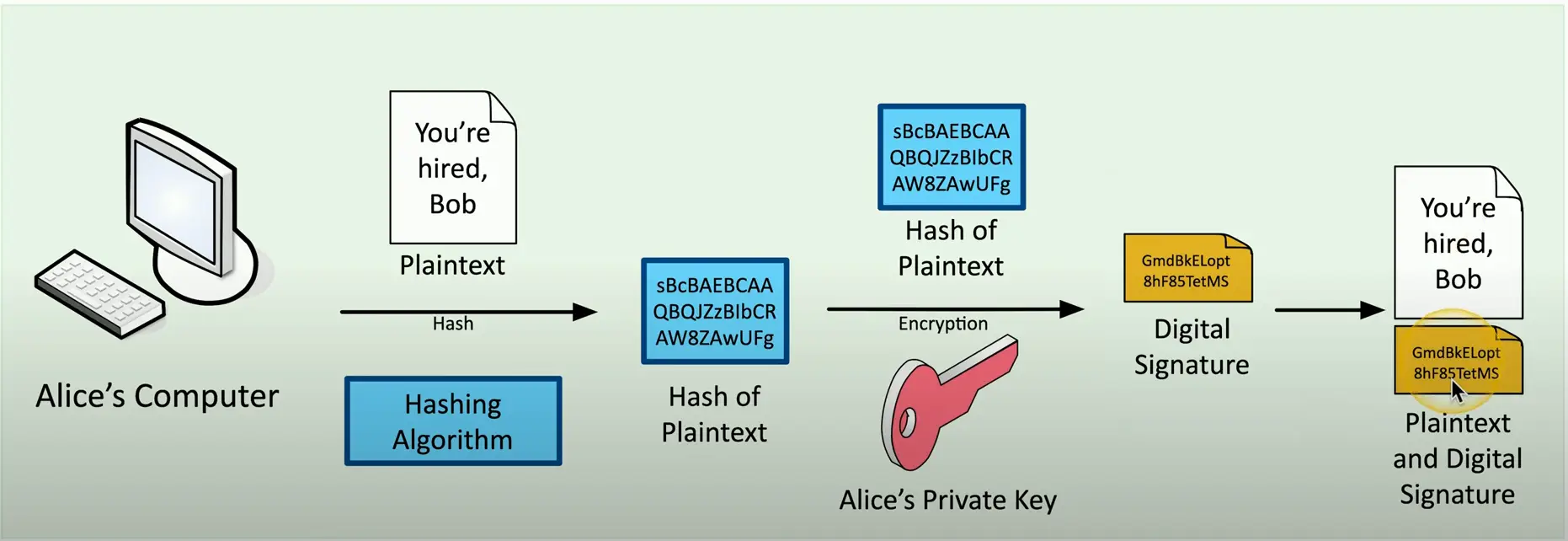

Proof of Origin
- Prove the message was not changed
- Prove the source of the message
- Make sure the signature isn’t fake
- Sign with the private key
- The message doesn’t need to be encrypted
- Nobody else can sign this (obviously)
- Verify with the public key
- Any change to the message will invalidate the signature

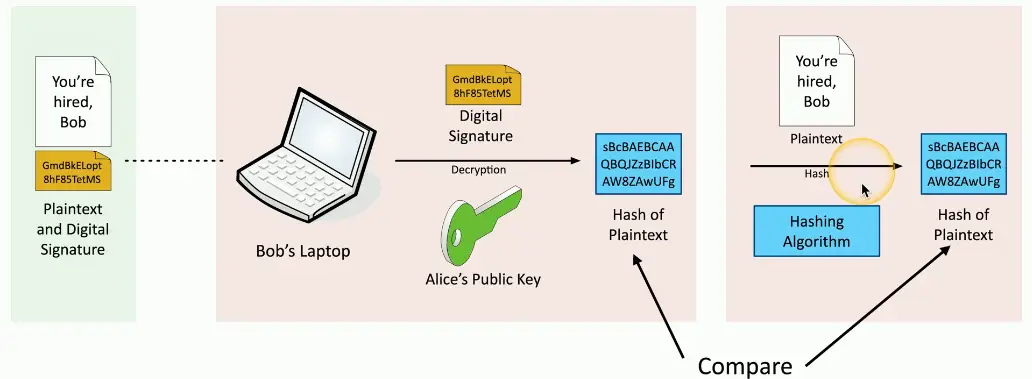

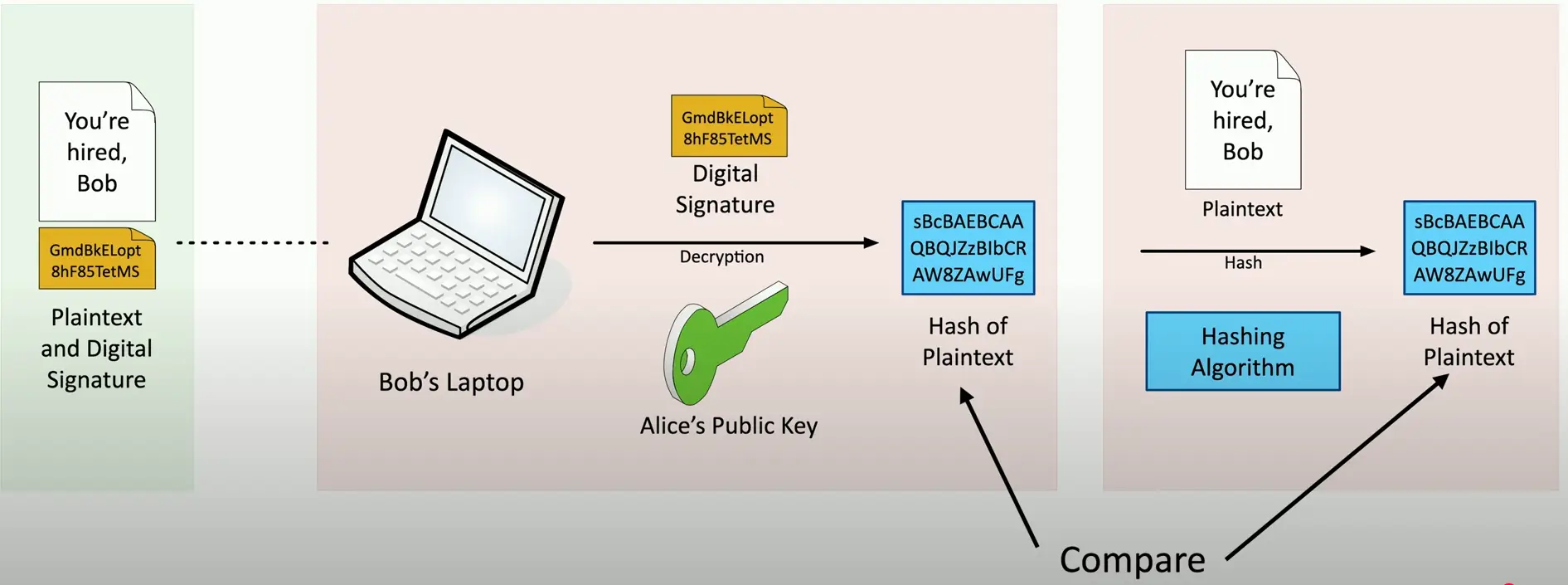

Verifying a Digital Signature

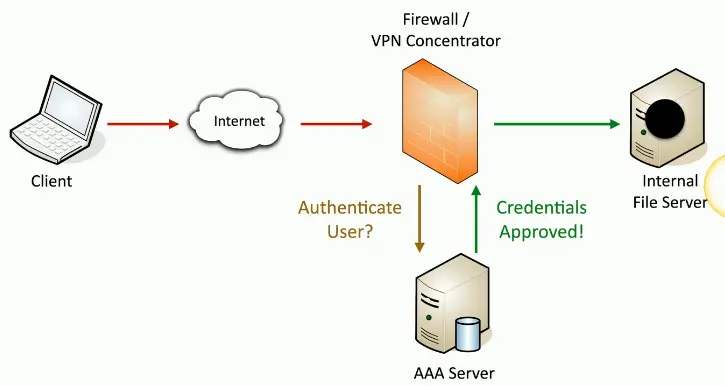

Authentication, Authorization, and Accounting (AAA) Framework
- Identification
- This is who you claim to be
- Usually your username
- Authentication
- Prove you are who you say you are
- Password and other authentication factors
- Authorization
- Based on your identification and authentication, what access do you have?
- Accounting
- Resources used: Login time, data sent and received, logout time
Authenticating People

Authenticating Systems
- You have to manage many devices
- Often devices that you will never physically see
- A system can’t type a password
- And you may not want to store one
- How can you truly authenticate a device
- Put a digitally signed certificate on the device
- Other business processes rely on the certificate
- Acess to the VPN from authorized devices
- Management software can validate the end device

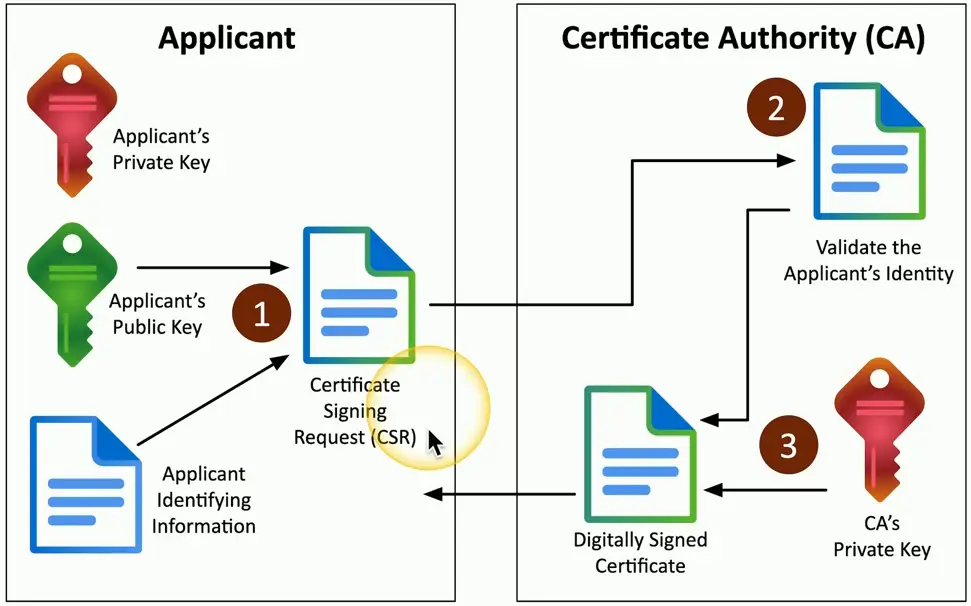

Certificate Authentication
- An organization has a trusted Certificate Authority (CA)
- Most organizations maintain their own CAs
- The organization creates a certificate for a device
- And digitally signs the certificate with the organization’s CA
- The certificate can now be included on a device as an authentication factor
- The CA’s digital signature is used to validate the certificate

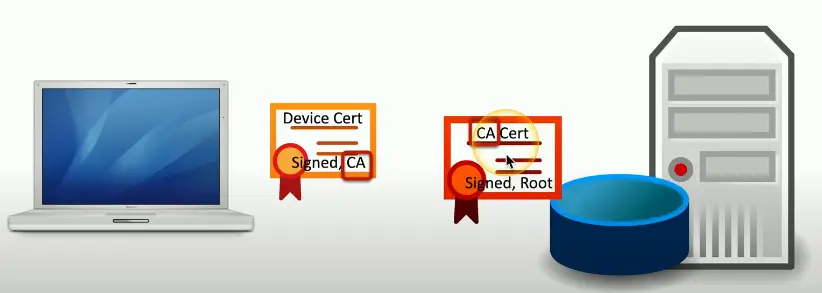

Certificate-based Authentication

Authorization Models
- The user or device has now authenticated
- To what do they now have access?
- Time to apply an authorization model
- Users and services ⇾ data and applications
- Associating individual users to access rights doesn’t scale
- Put an authorization model in the middle
- Define by Roles, Organizations, Attributes, etc.

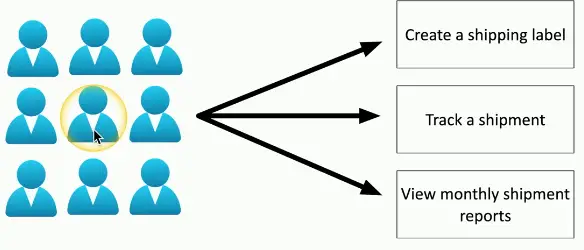

No Authorization Model
- A simple relationship
- Some issues with this method
- Difficult to understand why an authorization may exist
- Doesn’t scale

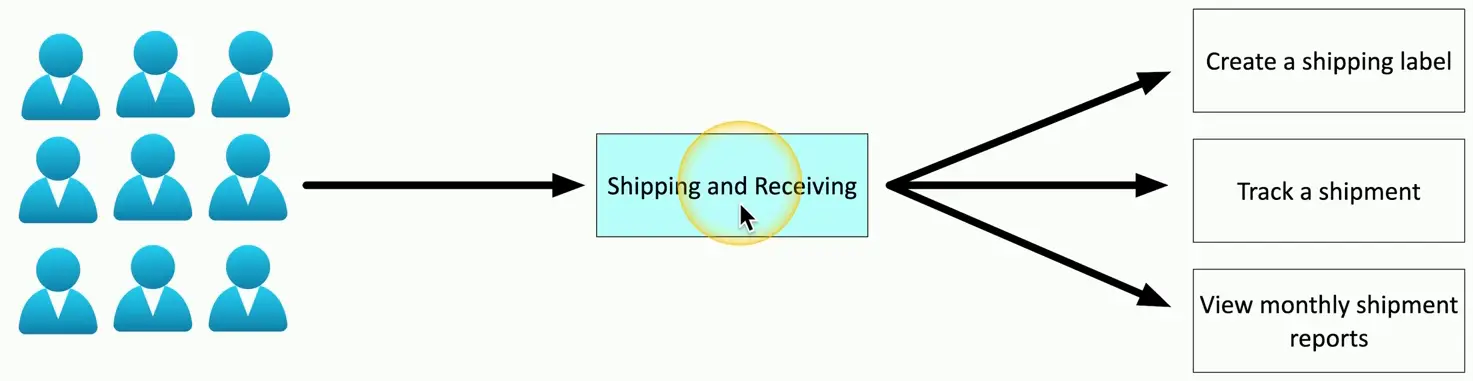

Using an Authorization Model
- Add an abstraction
- Reduce complexity
- Create a clear relationship between the user and the resource
- Administration is streamlined
- Easy to understand the authorizations
- Support any number of users or resources

Gap Analysis
- Where you are compared with where you want to be
- The “gap” between the two
- This may require extensive research
- There is a lot to consider
- This can take weeks or months
- An extensive study with numerous participants
- Get ready for emails, data gathering, and technical research
Choosing the Framework
- Get the baseline of employees
- Formal experience
- Current training
- Knowledge of security policies and procedures
- Examine the current processes
- Research existing IT systems
- Evaluate existing security policies
Compare and Contrast
- The comparison
- Evaluate existing systems
- Identify weakness
- Along with the most effective processes
- A detailed analysis
- Examine broad security categories
- Break those into smaller segments
The Analysis and Report
- The final comparison
- Detailed baseline objectives
- A clear view of the current state
- Need a path to get from the current security to the goal
- This will almost certainly include time, money, and lots of change control
- Time to create the gap analysis report
- A formal description of the current state
- Recommendations for meeting the baseline

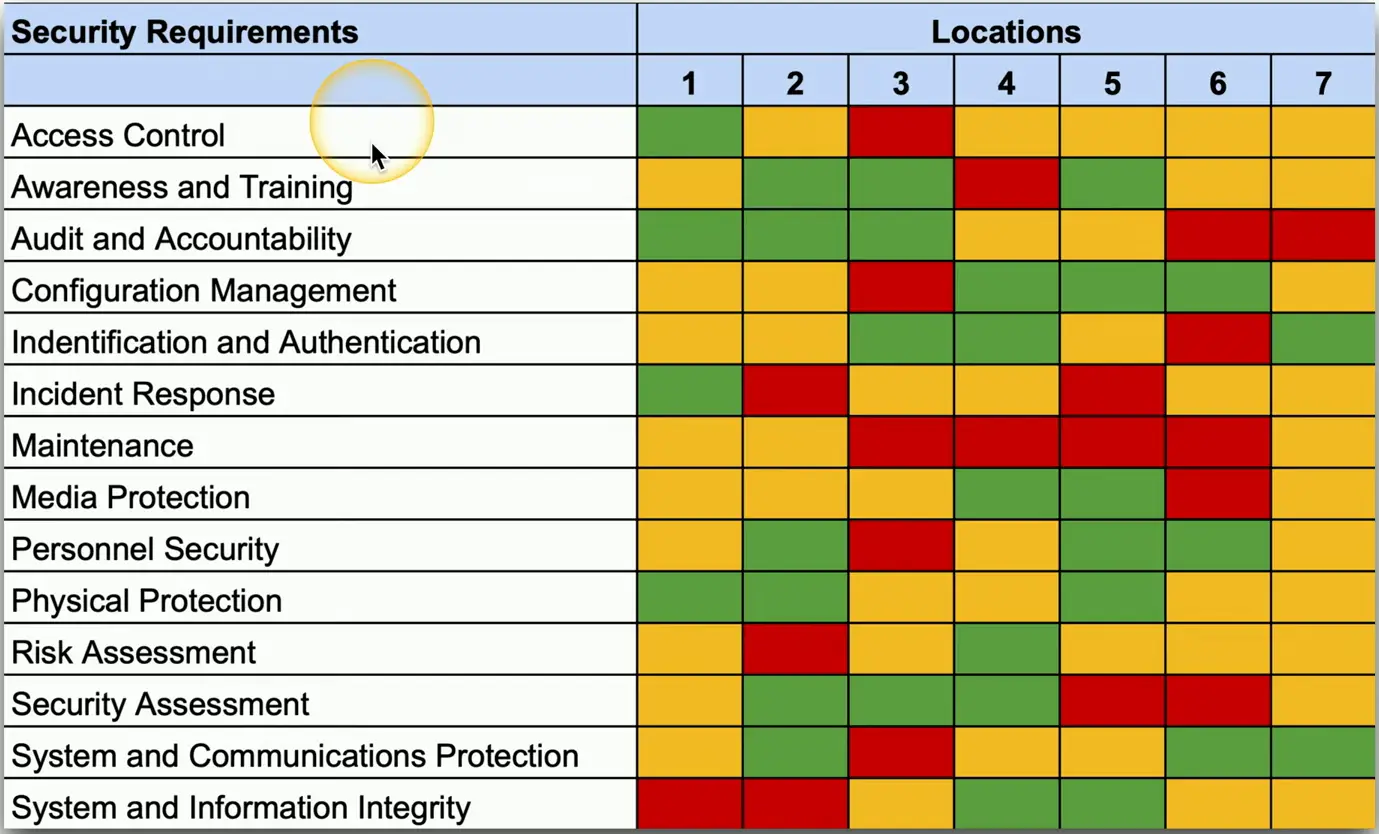

Gap Analysis Overview

Zero Trust
- Many networks are relatively open on the inside
- Once you’re through the firewall, there are few security controls
- Zero trust is a holistic approach to network security
- Covers every device, every process, every person
- Everything must be verified
- Nothing is inherently trusted
- Multi-factor authentication, encryption, system permissions, additional firewalls, monitoring, and analytics etc.

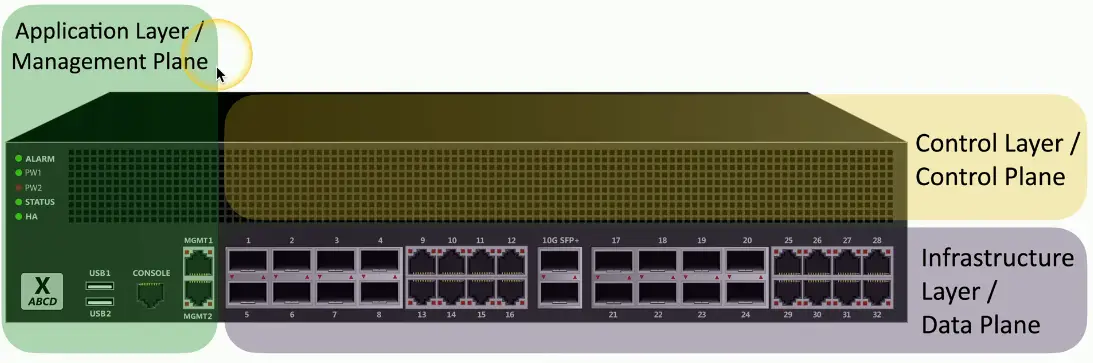

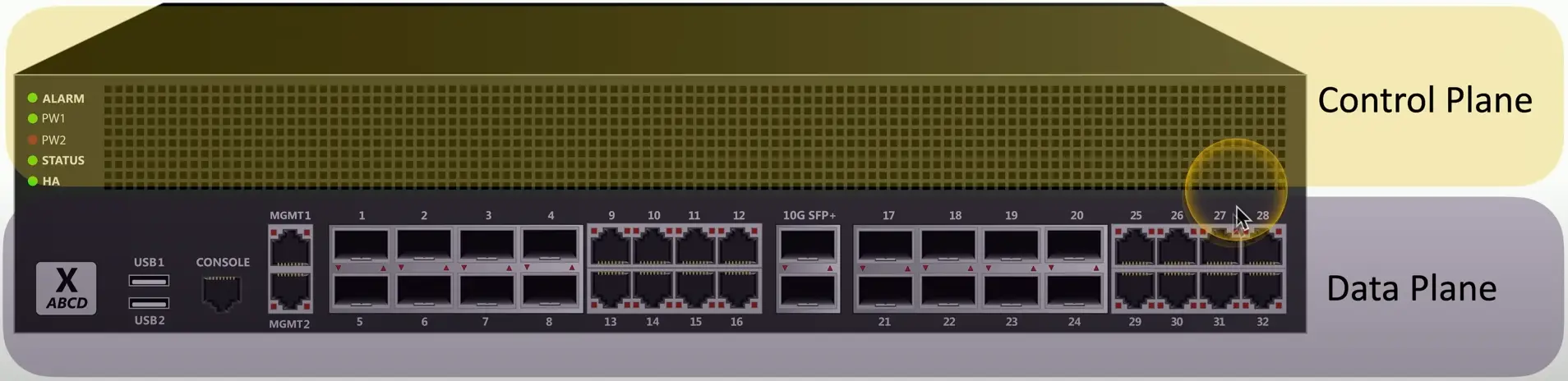

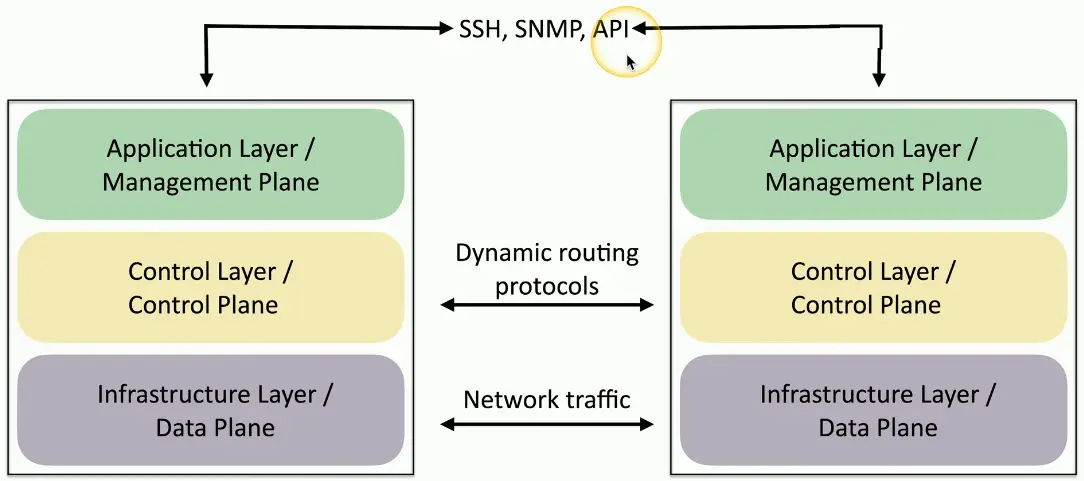

Planes of Operation
- Split the network into functional planes
- Applies to physical, virtual, and cloud components
- Data Plane
- Process the frames, packets, and network data
- Processing, forwarding, trunking, encrypting, NAT
- Control Plane
- Manages the actions of the data plane
- Define policies and rules
- Determine how packets should be forwarded
- Routing tables, session tables, NAT tables
Extend the Physical Architecture
- Separate into functional tasks
- Incorporate into hardware or software

Controlling Trust
- Adaptive Identity
- Consider the source and the requested resources
- Multiple risk indicators — relationship to the organization, physical location, type of connection, IP address, etc.
- Make the authentication stricter, if needed
- Threat Scope Reduction
- Decrease the number of possible entry points
- Policy-driven access control
- Combine the adaptive identity with a predefined set of rules

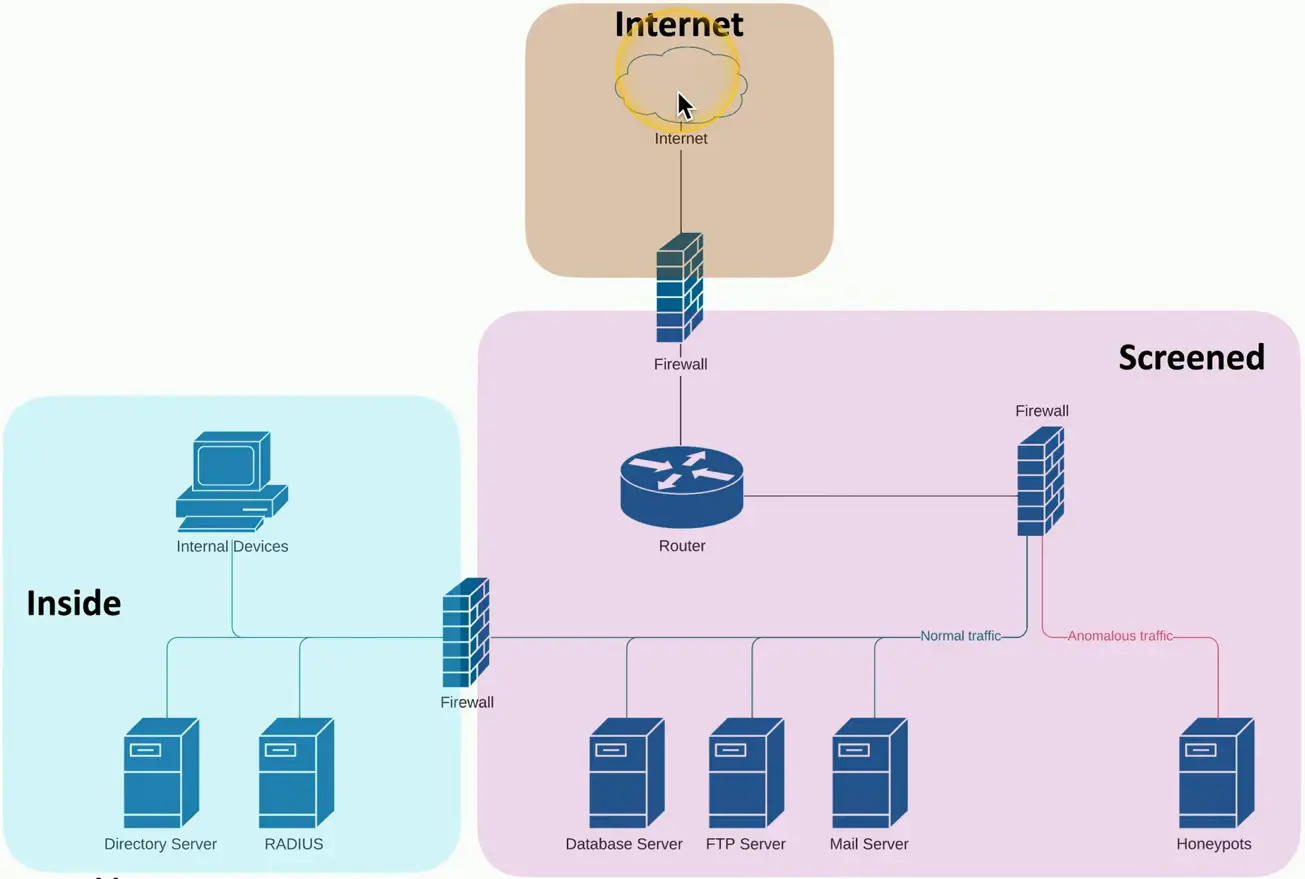

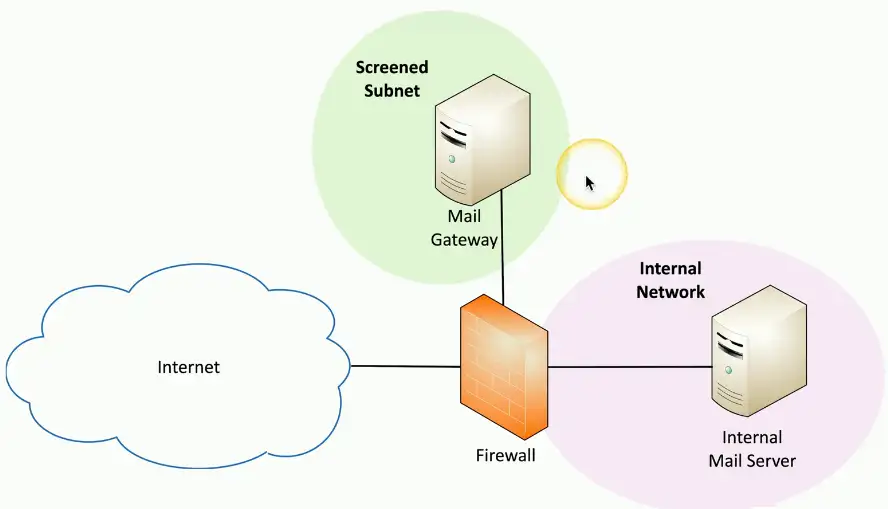

Security Zone
- Security is more than a one-to-one relationship
- Broad categorization provide a security-based foundation
- Where are you coming from and where are you going
- Trusted, untrusted
- Internal network, external network
- VPN 1, VPN 5, VPN 11
- Marketing, IT, Accounting, HR
- Using the zones may be enough by itself to deny access
- For example,

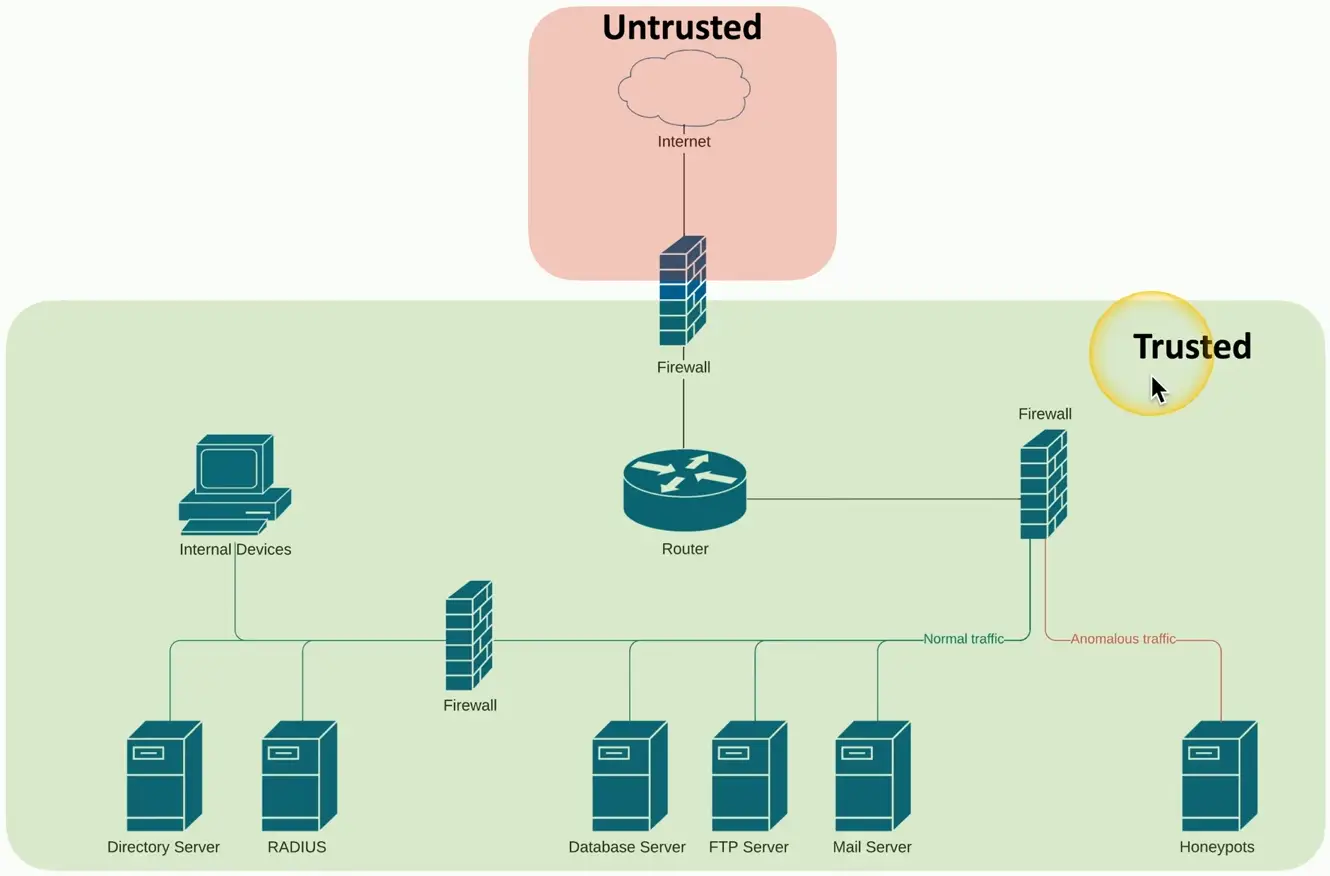

Untrusted to Trusted zone traffic
- Some zones are implicitly trusted
- For example,
Trusted to Internal zone traffic

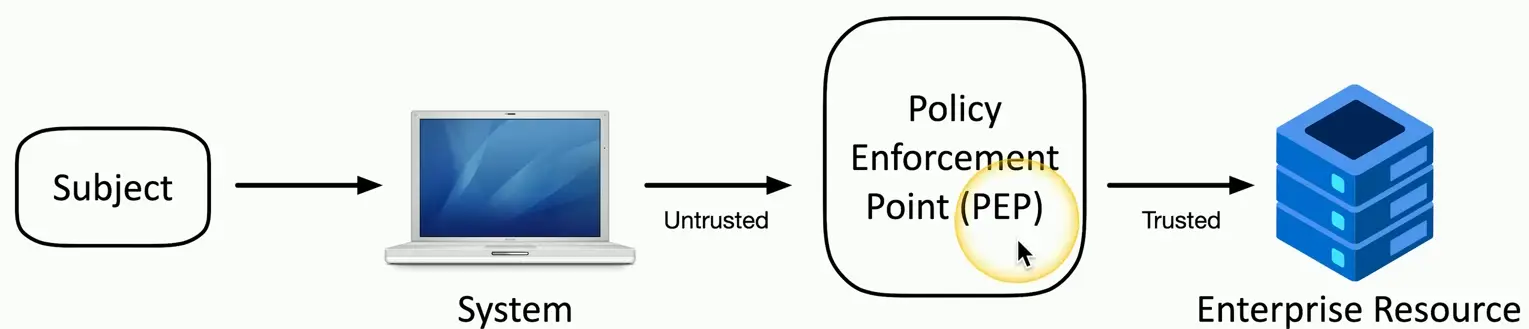

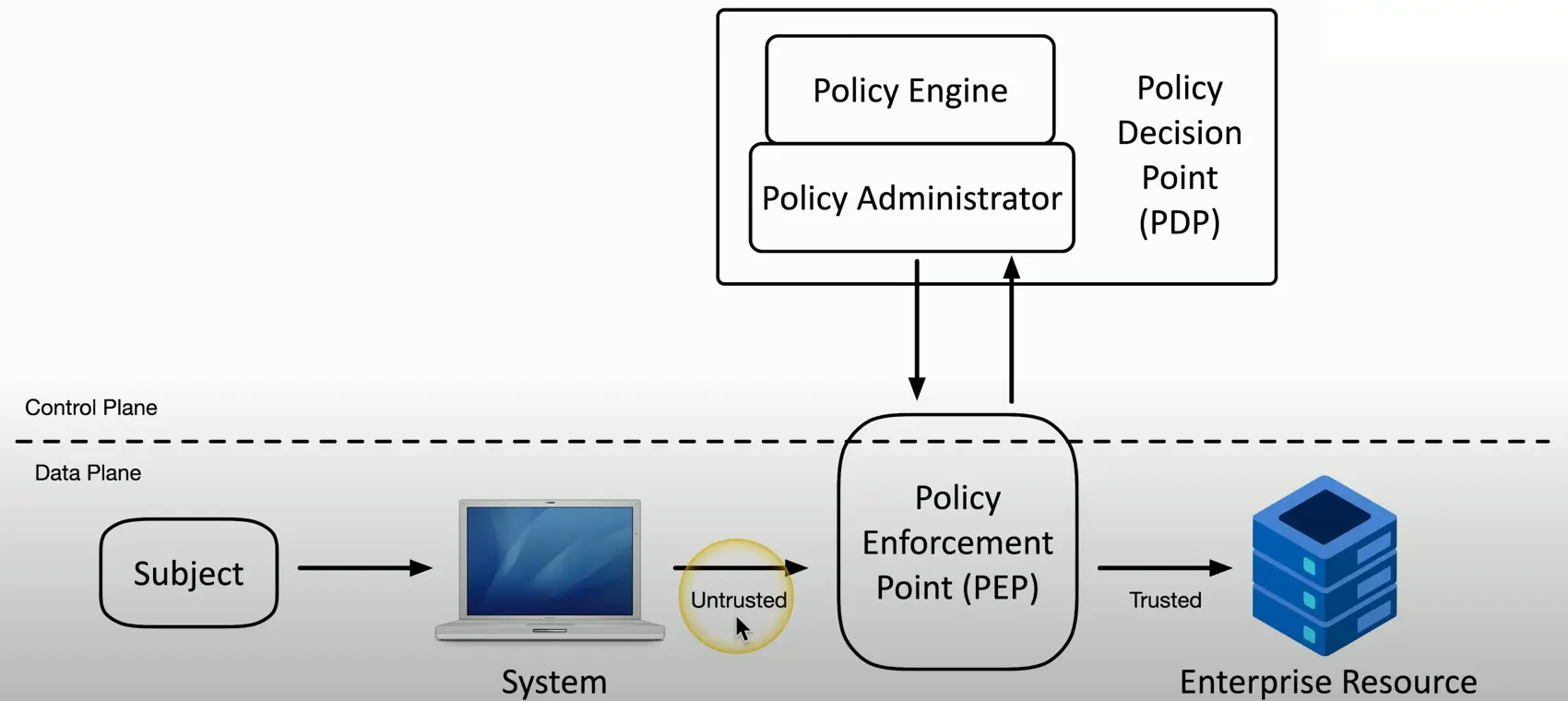

Policy Enforcement Point
- Subjects and systems
- End users, applications, non-human entities
- Policy enforcement point (PEP)
- Allow, monitor, and terminate connections
- Can consist of multiple components working together

Applying Trust in the Planes

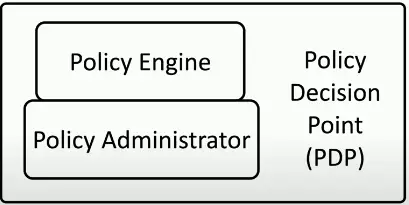

- Policy Decision Point
- There’s a process for making an authentication decision
- Policy Engine
- Evaluates each access decision based on policy and other information sources
- Grant, deny, or revoke
- Policy Administration
- Communicates with the Policy Enforcement Point
- Generates access tokens or credentials
- Tells PEP to allow or disallow access

Zero Trust Across Planes

Physical Security
Barricades/ Bollards
- Prevent access
- There are limits to the prevention
- Channel people through a specific access point
- And keep out other things
- Allow people, prevent cars and trucks
- Identify safety concerns
- Can be used to an extreme
- Concrete barriers/bollards
- Moats (Water ditch around the facility)
Access Control Vestibules
- All doors normally unlocked
- Opening one door causes others to lock
- All doors normally locked
- Unlocking one door prevents others from being unlocked
- One door open/others locked
- When one is open, the other cannot be unlocked
- One at a time, controlled groups
- Managed control through an area
Fencing
- Build a perimeter
- Usually very obvious
- May not be what you’re looking for
- Transparent or opaque
- See through fence (or not)
- Robust
- Difficult to cut the fence
- Prevent Climbing
Video Surveillance
- CCTV (Closed circuit television)
- Can replace physical guards
- Camera features are important
- Motion recognition can alarm and alert when something moves
- Object detection can identify a license plate or person’s face
- Often many cameras
- Networked together and recorded over time
Guards and Access Badges
- Security Guard
- Physical protection at the reception area of a facility
- Validate identification of existing employees
- Two-person integrity/control
- Minimize exposure to an attack
- No single person has access to a physical asset
- Access badge
- Picture, name, other details
- Must be worn at all times
- Electronically logged
Lighting
- More light means more security
- Attackers avoid the light
- Easier to see when lit
- Non IR cameras can see better
- Specialized design
- Consider overall light levels
- Lighting angles may be important
- Avoid shadows and glare
Sensors
- Infrared
- Detects infrared radiation in both light and dark
- Common in motion detectors
- Pressure
- Detects a change in force
- Floor and window sensors
- Microwave
- Detects movement across large areas
- Ultrasonic
- Send ultrasonic signals, receive reflected sound waves
- Detect motion, collision detection etc.
Deception and Disruption
Honeypots
- Attract the bad guys
- The “attacker” is probably a machine
- Makes for interesting recon
- Honeypots
- Create a virtual world to explore
- Many options
- Most are open source and available to download
- Constant battle to discern the real from the fake
Honeynets
- A real network includes more than a single device
- Servers, workstations, routers, switches, firewalls
- Honeynets
- Build a larger deception network with one or more honeypots
- More than one source of information
Honeyfiles
- Attract the attackers with more honey
- Create files with fake information
- Something bright and shiny
- Honeyfiles
- Bait for the honeynet (passwords.txt)
- Add many honeyfiles to files shares
- An alert is sent if the file is accessed
Honeytokens
- Track the malicious actors
- Add some traceable data to the honeynet
- If the data is stolen, you will know where it came from
- API Credentials
- Doesn’t actually provide access
- Notifications are sent when used
- Fake email addresses
- Add it to a contact list
- Monitor the internet to see who posts it
- Many other honeytoken examples
- Database records, browser cookies, web page pixels
Change Management
Change Management
- How to make a change
- Upgrade software, patch an application, change firewall configuration, modify switch ports
- One of the most common risks in the enterprise
- Often overlooked or ignored
- Have clear policies
- Frequency, duration, installation process, rollback procedures
- Sometimes extremely difficult to implement
- It’s hard to change corporate culture
Change Approval Process
- A formal process for managing change
- Avoid downtime, confusion, and mistakes
- A typical approval process
- Complete the request forms
- Determine the purpose of the change
- Identify the scope of the change
- Schedule a date and time of the change
- Determine affected systems and the impact
- Analyze the risk associated with the change
- Get approval from the change control board
- Get end-user acceptance after the change is complete
Ownership
- An individual or entity needs to make a change
- They own the process
- They don’t (usually) perform the actual change
- The owner manages the process
- Process updates are provided to the owner
- Ensures the process is followed, and acceptable
- Address label printers needs to be upgraded
- Shipping and Receiving department owns the process
- IT handles the actual change
Stakeholders
- Who is impacted by this change?
- They’ll want to have input on the change management process
- This may not be as obvious as you might think
- A single change can include one individual or the entire company
- Upgrade software used for shipping labels
- Shipping/receiving
- Accounting reports
- Product delivery timeframes
- Revenue recognition — CEO visibility
Impact Analysis
- Determine a risk value
- The risks can be minor or far-reaching
- The “fix” doesn’t actually fix anything
- The fix breaks something else
- OS failures
- Data corruption
- What’s the risk with NOT making the change?
- Security vulnerability
- Application unavailability
- Unexpected downtime to other services
Test Results
- Sandbox testing environment
- No connection to the real world or production system
- A technological safe place
- Use before making a change to production
- Try the upgrade, apply the patch
- Test and confirm before deployment
- Confirm the back out plan
- Move everything back to the original
- A sandbox cannot consider every possibility
Backout Plan
- The change will work perfectly and nothing will ever go bad
- You should always have a way to revert your changes
- Prepare for the worst, hope for the best
- This isn’t as easy as it sounds
- Some changes are difficult to revert
- Always have backups
Maintenance Windows
- When is the change happening
- This might be the most difficult part of the process
- During the workday may not be the best option
- Potential downtime would affect a large part of production
- Overnights are often a better choice
- Challenging for 24-hour production schedules
- The time of year may be a consideration
- Retail networks are frozen during the holiday season
Standard Operating Procedures
- Change management is critical
- Affects everyone in the organization
- The process must be well documented
- Should be available on the Internet
- Along with all standard processes and procedures
- Changes to the process are reflected in the standards
Technical Change Management
- Put the change management process into action
- There is no such thing as a simple upgrade
- Can have many moving parts
- Separate events may be required
- Change management is often concerned with “what” need to change
- The technical team is concerned with “how” to change it
Allow List/Deny List
Any application can be dangerous
- Vulnerabilities, Trojan horses, malware
Security policy can control app execution
- Allow list, deny/block list
Allow list
- Nothing runs unless it’s approved
- Very restrictive
Deny list
- Nothing on the “bad list” can be executed
- Anti-virus, anti-malware
Restricted Activities
The scope of a change is important
- Defines exactly which components are covered
A change approval isn’t permission to make any change
- The change control approval is very specific
The scope may need to be expanded during the change window
- It’s impossible to prepare for all possible outcomes
The change management process determines the next steps
- There are processes in place to make the change successful
Downtime
Services will eventually be unavailable
- The change process can be disruptive
- Usually scheduled during non-production hours
If possible, prevent any downtime
- Switch to secondary system, upgrade the primary, then switch back
Minimize any downtime events
- The process should be as automated as possible
- Switch back to secondary if issues appear
- Should be part of the backout plan
Send emails and calendar updates
Restarts
It’s common to require a restart
- Implement the new configuration
- Reboot the OS, power cycle the switch, bounce the service
- Can the system recover from a power outage?
Services
- Stop and restart the service or daemon
- May take seconds or minutes
Applications
- Close the application completely
- Launch a new application instance
Legacy Applications
Some applications were here before you arrived
- They will here when you leave
Often no longer supported by the developer
- You’re now the support team
Fear of Unknown
- Face your fears and document the system
- It may not be as bad as you think
May be quirky
- Create specific processes and procedures
Become the expert
Dependencies
To complete A, you must complete B
- A service will not start without other active services
- An application requires a specific library version
Modifying one component may require changing or restarting other components
- This can be challenging to manage
Dependencies may occur across systems
- Upgrade the firewall code first
- Then upgrade the firewall management software
Documentation
It can be challenging to keep up with changes
- Documentation can become outdated very quickly
- Require with the change management process
Updating diagrams
- Modifications to network configurations
- Address updates
Updating policies/procedures
- Adding new systems may require new procedures
Version Control
Track changes to a file or configuration data over time
- Easily revert to a previous setting
Many opportunities to manage versions
- Router configurations
- Windows OS patches
- Application registry entries
Not always straightforward
- Some devices and OSes provide version control features
- May require additional management software
Cryptographic Solutions

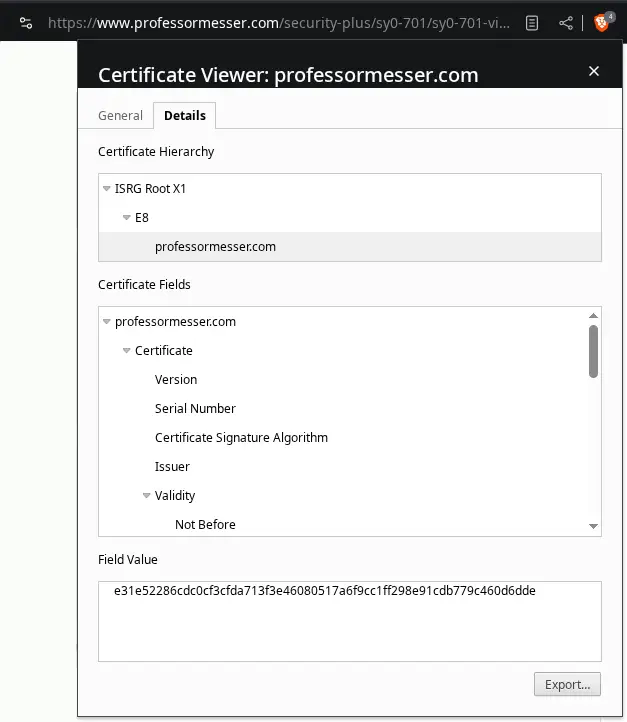

Public Key Infrastructure (PKI)
Policies, procedures, hardware, software, people
- Digital certificates: create, distribute, manage, store, revoke
This is a big, big, endeavor
Also refers to the binding of public keys to people or devices
- The certificate authority (CA)
- It’s all about trust

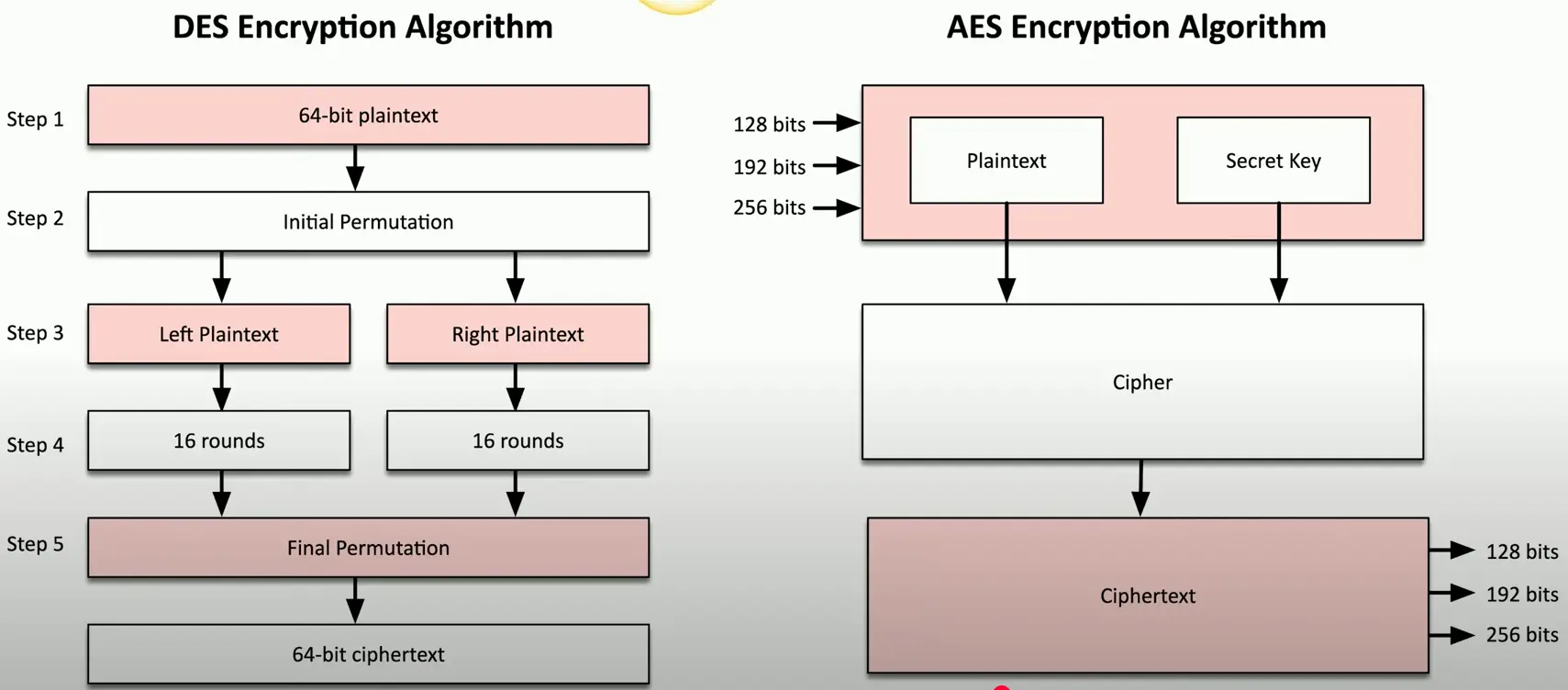

Symmetric Encryption
A single, shared key
- Encrypt with the key
- Decrypt with the same key
- If it gets out, you’ll need another key
Secret key algorithm
Doesn’t scale very well
- Can be challenging to distribute
Very fast to use
- Less overhead than asymmetric encryption
- Often combined with asymmetric encryption

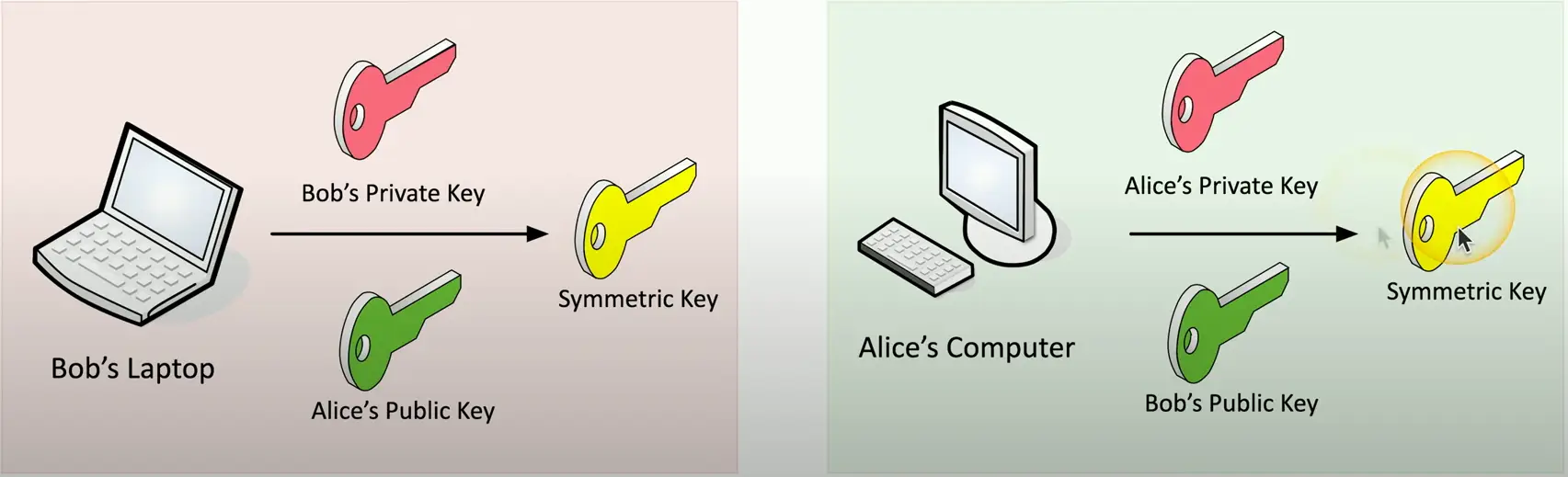

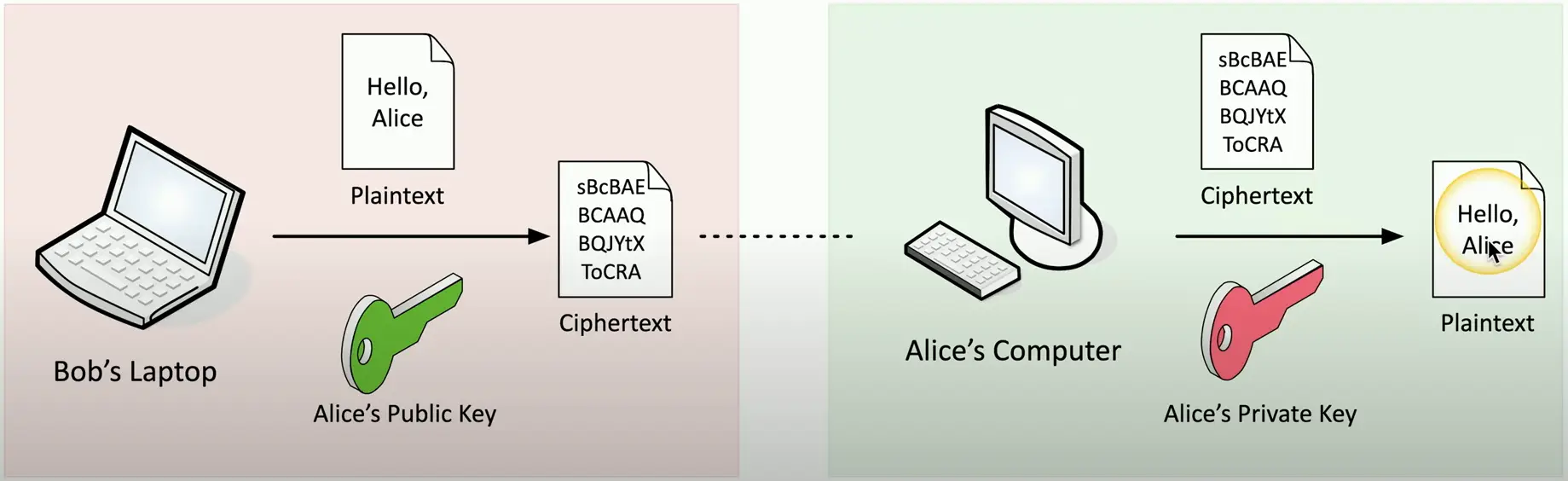

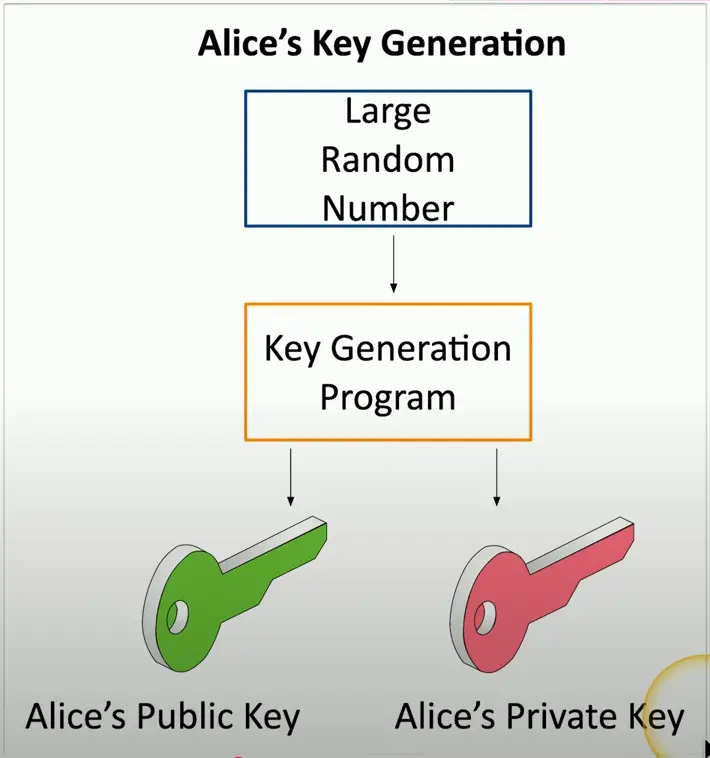

Asymmetric Encryption
Public key cryptography
- Two (or more) mathematically related keys
Private Key
Public Key
- Anyone can see this key
- Give it away
The private key is the only key that can decrypt data encrypted with public key
- You cannot derive the private key from the public key
The Key Pair
Asymmetric encryption
Key generation
- Build both the public and private key at the same time
- Lots of randomization
- Large prime numbers
- Lots and lots of math
Everyone can have the public key
- Only Alice has the private key

Asymmetric Encryption

Key Escrow
Someone else holds your decryption keys
- Your private keys are in the hands of a 3rd Party
- This may be within your own organization
This can be a legitimate business arrangement
- A business might need access to employee information
- Government agencies may need to decrypt partner data
Controversial?
- Of course
- But may still be required
Encrypting Data
Encrypting Stored Data
Protect data on storage devices
- SSD, hard drive, USB drive, cloud storage, etc.
- This is data at rest
Full-disk and partition/volume encryption
- BitLocker, FileVault, etc.
File encryption
- EFS (Encrypting File System), third-party utilities
Database Encryption
Protecting stored data
- And the transmission of that data
Transparent encryption
- Encrypt all database information with a symmetric key
Record-level encryption
- Encrypt individual columns
- Use separate symmetric keys for each column

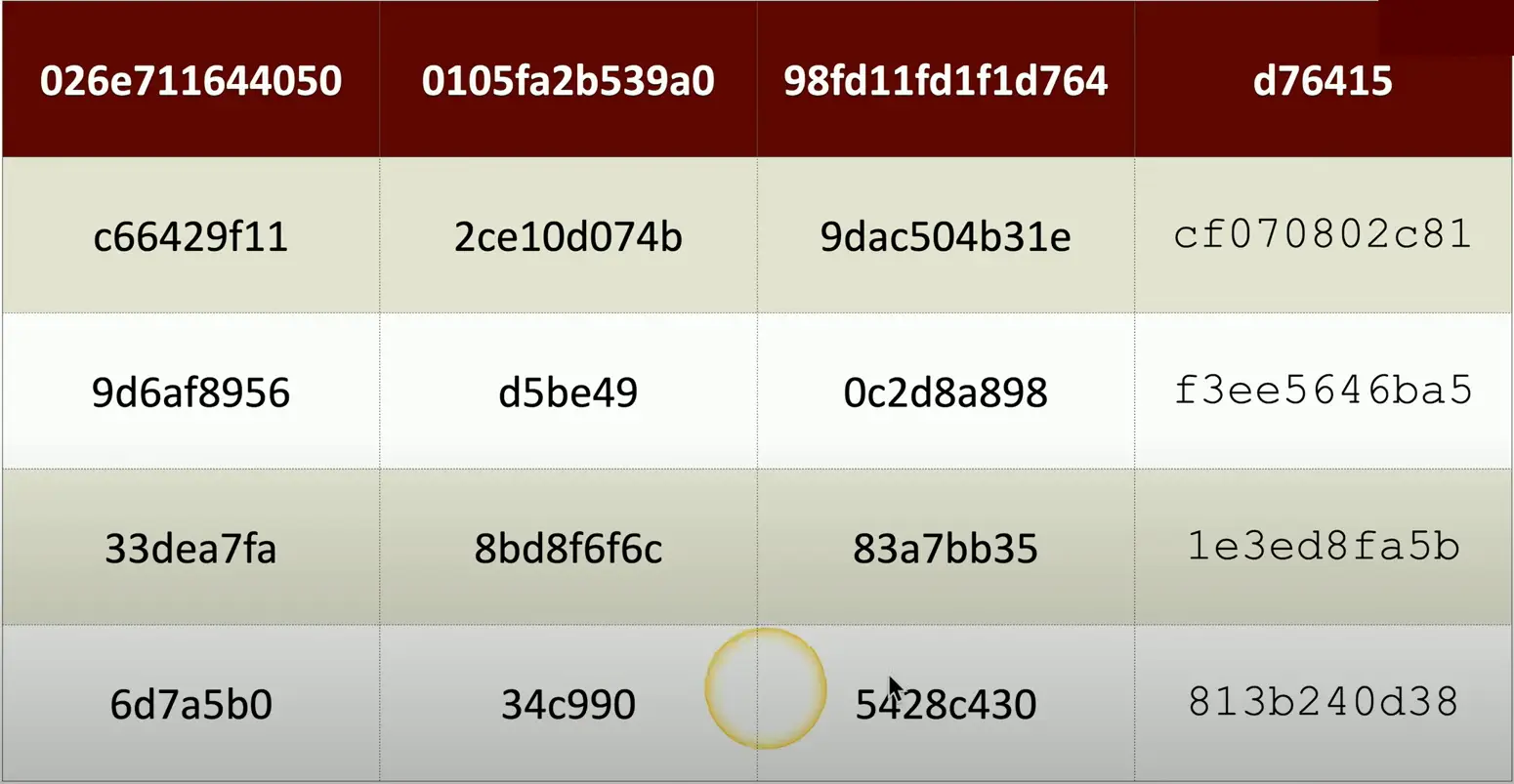

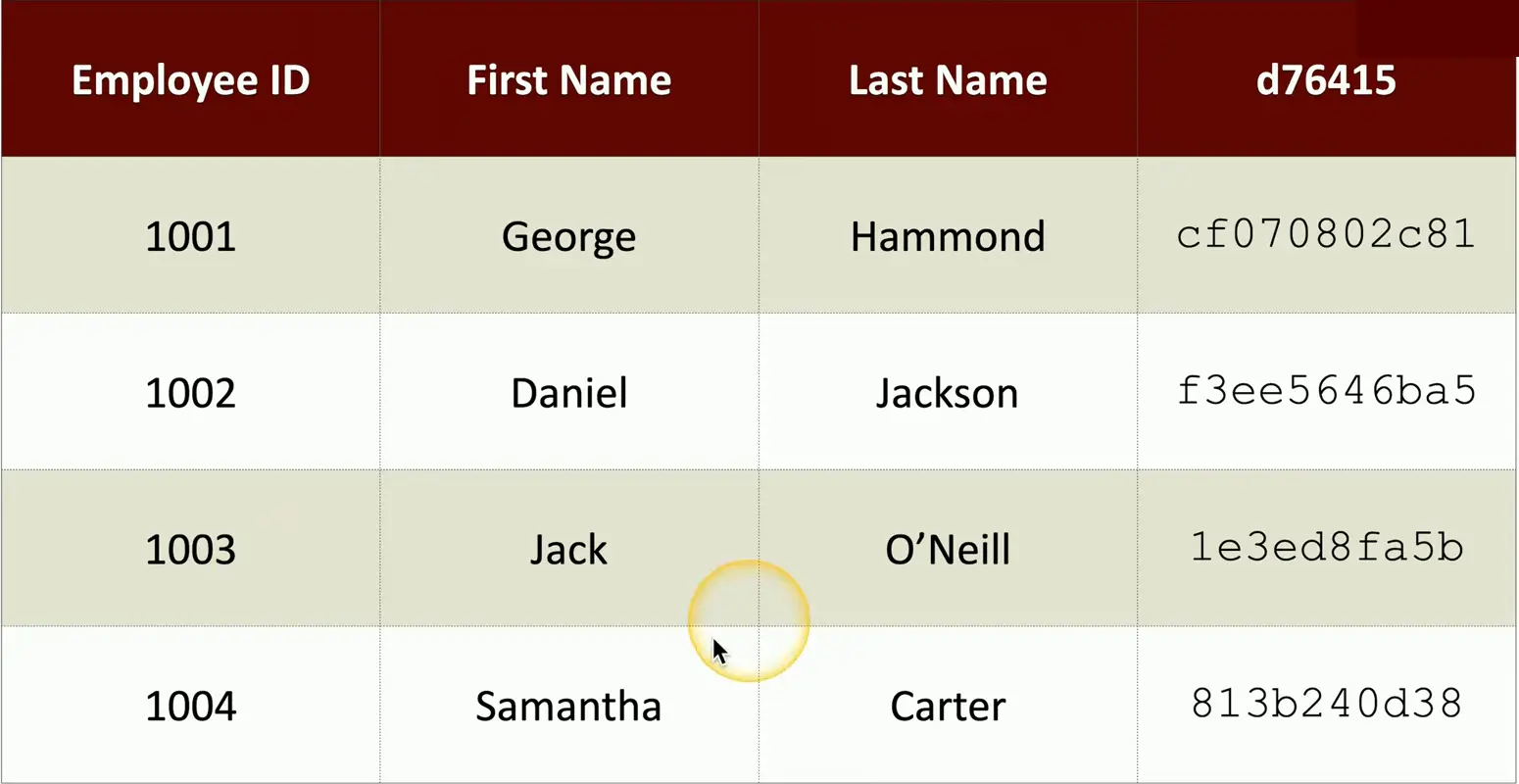

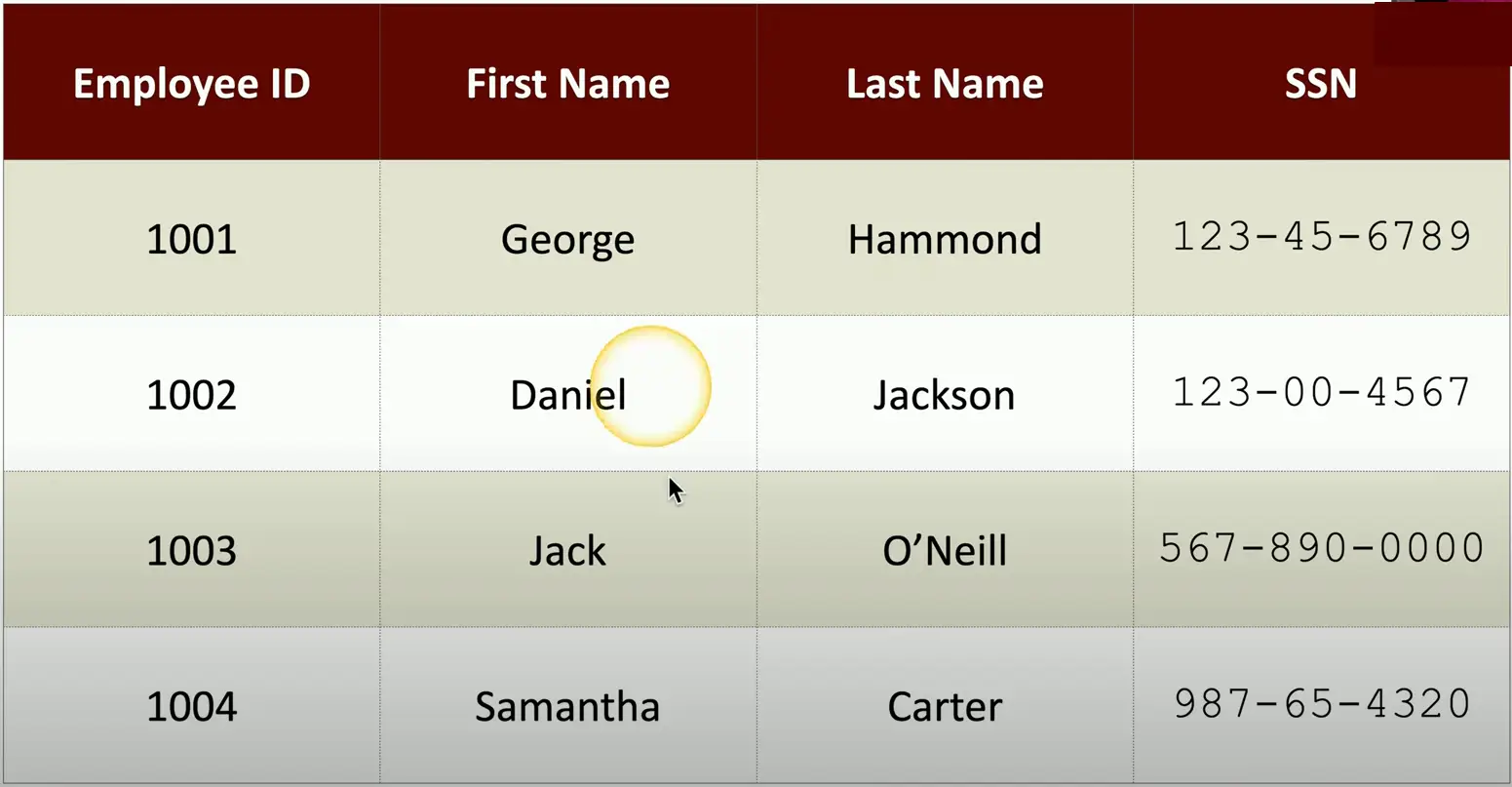

Example Database:

You can encrypt the entire database

But this adds the extra overhead for database search and lookup. We have to decrypt the data every time we need to pull something from it.
One way to avoid, the overhead is to encrypt only the sensitive portion of the data, leaving rest as unencrypted.

Transport Encryption
Protect data traversing the network
- You are probably doing this now
Encrypting in the application
- Browsers can communicate using HTTPS

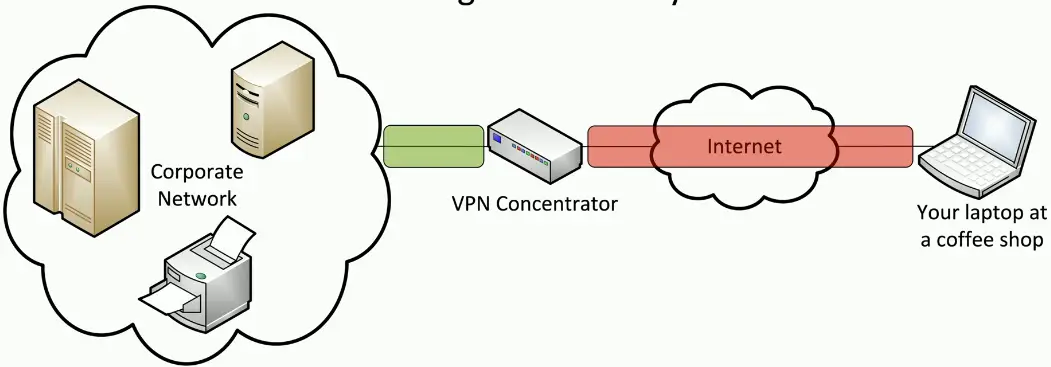

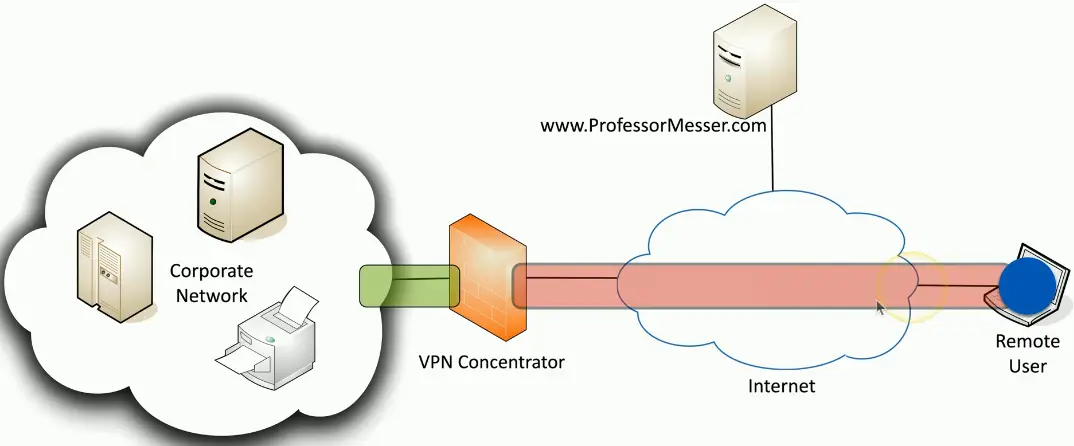

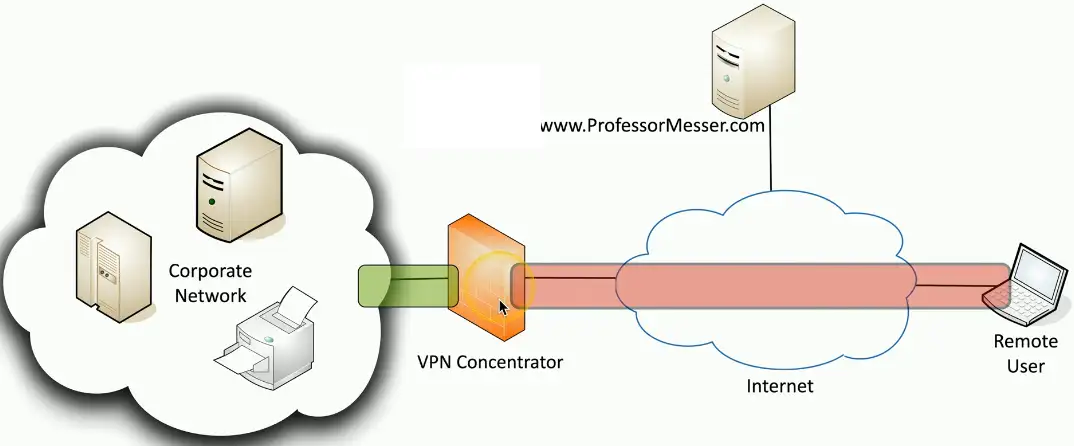

VPN (virtual private network)
- Encrypts all data transmitted over the network, regardless of the application
- Client-based VPN using SSL/TLS

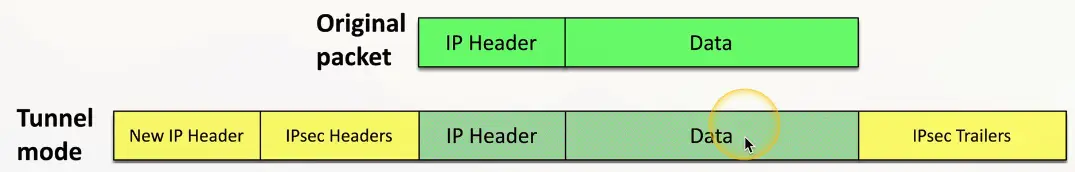

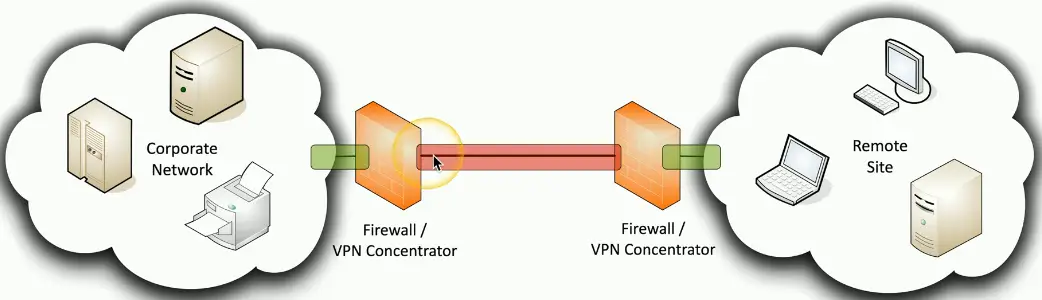

- Site-to-site VPN using IPsec
Encryption Algorithms
There are many, many ways to encrypt data
- The proper “formula” must be used during encryption and decryption
Both sides decide on the algorithm before encrypting the data
- The details are often hidden from the end user
There are advantages and disadvantages between algorithms
- Security level, speed, complexity of implementation, etc.
Encryption Algorithm Comparison

Cryptographic Keys
There’s very little that is not known about the cryptographic process
- The algorithm is usually a known entity
- The only thing you don’t know is the key
The key determines the output
- Encrypted data
- Hash value
- Digital signature
Keep your key private
- It’s the only thing protecting your data
Key Lengths
Larger keys tend to be more secure
- Prevent brute-force attacks
- Attackers can try every possible key combination
Symmetric encryption
- 128-bit or larger symmetric keys are common
- These numbers get larger and larger as time goes on
Asymmetric encryption
- Complex calculations of prime numbers
- Larger keys than symmetric encryption
- Common to see key lengths of 3072 bits or larger
Key Stretching
A weak key is a weak key
- By itself, it’s not very secure
Make a weak key stronger by performing multiple processes
- Hash a password. Hash the hash of the password. And continue…
- Key stretching, key strengthening
Brute force attacks would require reversing each of those hashes
- The attacker has to spend much more time, even though the key is small
Key Exchange
A logistical challenge
- How do you share an encryption key across an insecure medium without physically transferring the key?
Out-of-band key exchange
- Don’t send the symmetric key over the network
- Telephone, courier, in-person, etc.
In-band key exchange
- It’s on the network
- Protect the key with additional encryption
- Use asymmetric encryption to deliver a symmetric key
Real-time Encryption/Decryption
There is a need for fast security
- Without compromising the security part
Share a symmetric session key using asymmetric encryption
- Client encrypts a random (symmetric) key with a server’s public key
- The server decrypts this shared key and uses it to encrypt data
- This is the session key
Implement session keys carefully
- Need to be changed often (ephemeral keys)
- Need to be unpredictable
Symmetric Key from Asymmetric Keys
Use public and private key cryptography to create a symmetric key

Encryption Technologies
A specification for cryptographic functions
- Cryptography hardware on a device
Cryptographic processor
- Random number generator, key generators
Persistent Memory
- Unique keys burned in during manufacturing
Versatile memory
- Storage keys, hardware configuration information
- Securely store BitLocker keys
Password protected
Hardware Security Module (HSM)
Used in large environments
- Clusters, redundant power
- Securely store thousands of cryptographic keys
High-end cryptographic hardware
- Plug-in card or separate hardware device
Key backup
- Secure storage in hardware
Cryptographic accelerators
- Offload that CPU overhead from other devices
Key Management System
Services are everywhere
- On-premises, cloud-based
- Many keys for many services
Manage all keys from a centralized manager
- Often provided as third-party software
- Separate the encryption keys from the data
All key management from one console
- Create keys for a specific service or cloud provider (SSL/TLS, SSH, etc.)
- Associate keys with specific users
- Rotate keys on regular intervals
- Log key use and important events
Keeping Data Private
Our data is located in many places
- Mobile phones, cloud, laptops, etc.
- The most private data is often physically closest to us
Attackers are always finding new techniques
- It’s a race to stay one step ahead
Our data is changing constantly
- How do we keep this data protected?
Secure Enclave
A protected area of our secrets
- Often implemented as a hardware processor
- Isolated from the main processor
- Many technologies and names
Provides extensive security features
- Has its own boot ROM
- Monitors the system boot process
- True random number generator
- Real-time memory encryption
- Performs AES encryption in hardware
- And more…

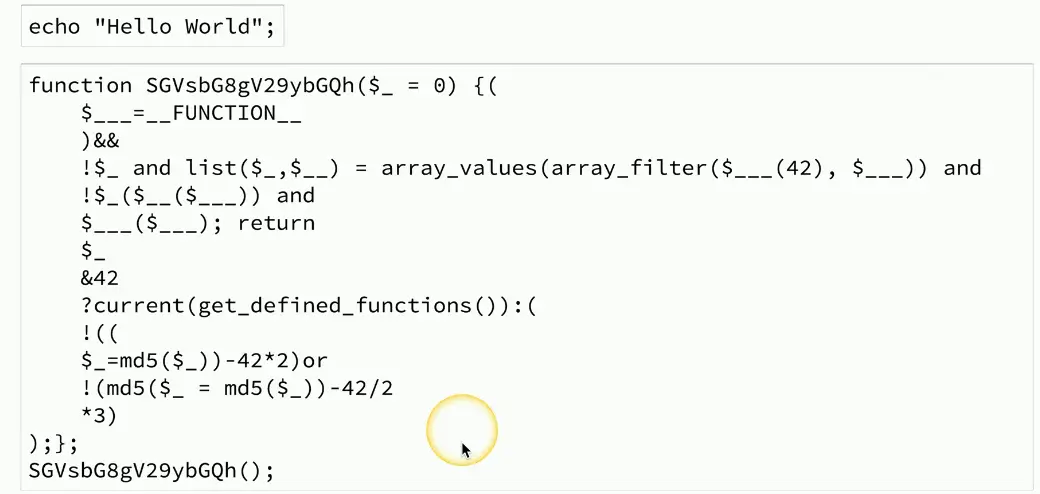

Obfuscation
The process of making something unclear
- It’s now much more difficult to understand
But it’s not impossible to understand
- If you know how to read it
Hid information in plain sight
- Store payment information without storing a credit card number
Hide information inside an image
Steganography
Greek for “concealed writing”
- Security through obscurity
Message is invisible
The covertext
- The container document or file
Common Steganography Techniques
Network based
- Embed messages in TCP packets
Use an image
- Embed the message in the image itself
Invisible watermarks
Other Steganography Types
Audio steganography
- Modify the digital audio file
- Interlace a secret message within the audio
- Similar techniques to image steganography
Video steganography
- A sequence of images
- Use image steganography on a larger scale
- Manage the signal-to-noise ratio
- Potentially transfer much more information

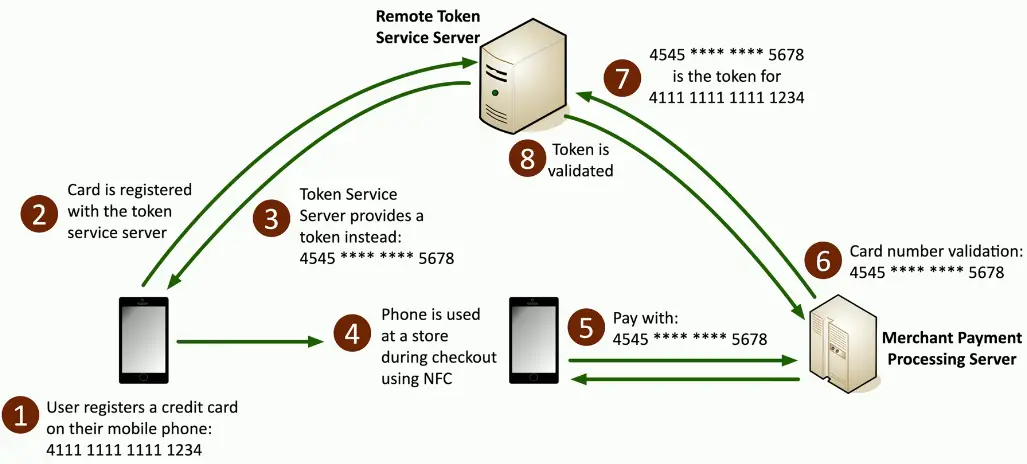

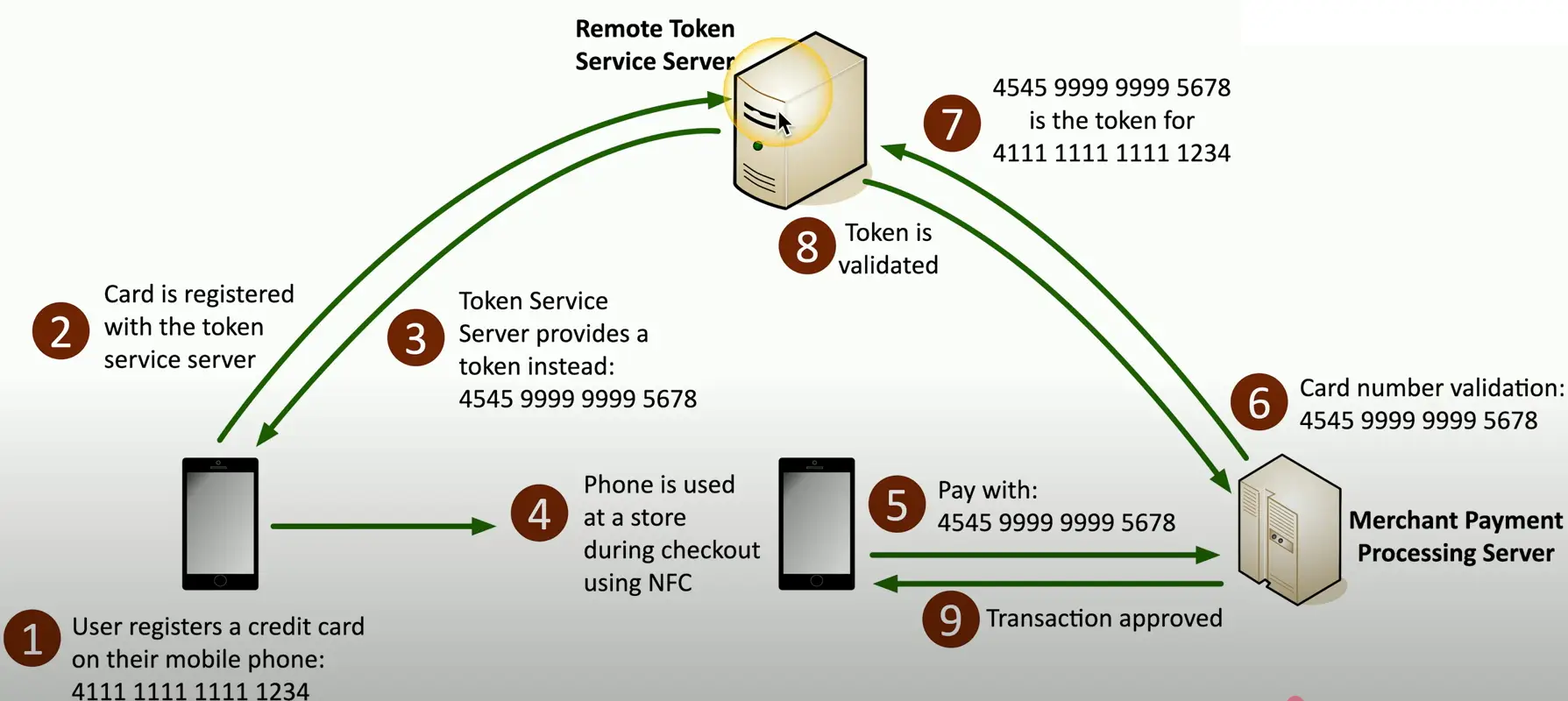

Tokenization
Replace sensitive data with a non-sensitive placeholder
- SSN 266-12-1112 is no 691-618539
Common with credit card processing
- Use a temporary token during payment
- An attacker capturing the card numbers can’t use them later
This isn’t encryption or hashing
- The original data and token aren’t mathematically related

Data Masking
Data Obfuscation
Protects PII
May only be hidden from view
- The data may still be intact in storage
- Control the view based on permissions
Many techniques
- Substituting, shuffling, encrypting, masking out, etc.

Hashing and Digital Signatures
Hashes
Represent data as a short string of text
- A message digest, a fingerprint
One-way trip
- Impossible to recover the original message from the digest
- Use to store passwords/confidentiality
Verify a downloaded document is the same as the original
Can be a digital signature
- Authentication, non-repudiation, and integrity
Collision
Hash functions
- Take an input of any size
- Create a fixed size string
- Message digest, checksum
The hash should be unique
- Different inputs should never create the same hash
- If they do, it’s a collision

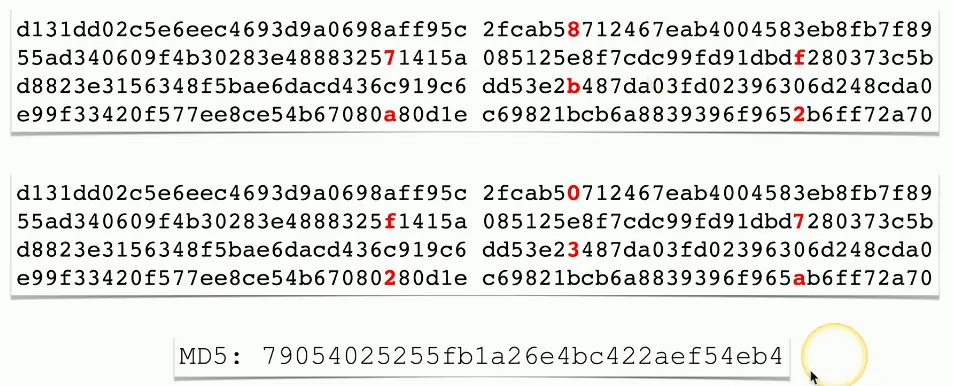

MD5 has a collision problem
- Found in 1996
- Don’t use MD5 for anything important
Practical Hashing
Verify a downloaded file
- Hashes may be provided on the download site
- Compare the downloaded files hash with the posted hash value
Password Storage
- Instead of storing the password, store a salted hash
- Compare hashes during the authentication process
- Nobody ever knows your actual password
Adding Some Salt
Salt
- Random data added to a password when hashing
Every user gets their own random salt
- The salt is commonly stored with the password
Rainbow tables won’t work with salted hashes
- Additional random value added to the original password
This slows down the brute force process
- It doesn’t completely stop the reverse engineering

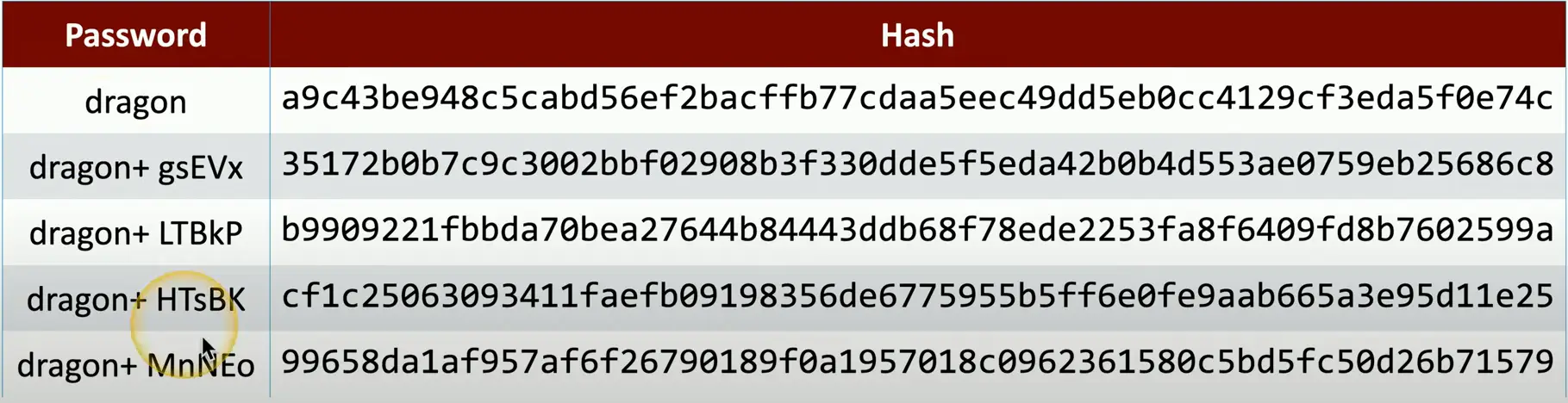

Salting the Hash
Each user gets a different random hash
- The same password creates a different hash

Digital Signature
Prove the message was not changed
Prove the source of the message
Make sure the signature isn’t fake
Sign with the private key
- The message doesn’t need to be encrypted
- Nobody else can sign this (obviously)
Verify with the public key
- Any change in the message will invalidate the signature
Creating a Digital Signature


Blockchain Technology
A distributed ledger
- Keep track of transaction
Everyone on the blockchain network maintains the ledger
- Records and replicates to anyone and everyone
Many practical applications
- Payment processing
- Digital identification
- Supply chain monitoring
- Digital Voting

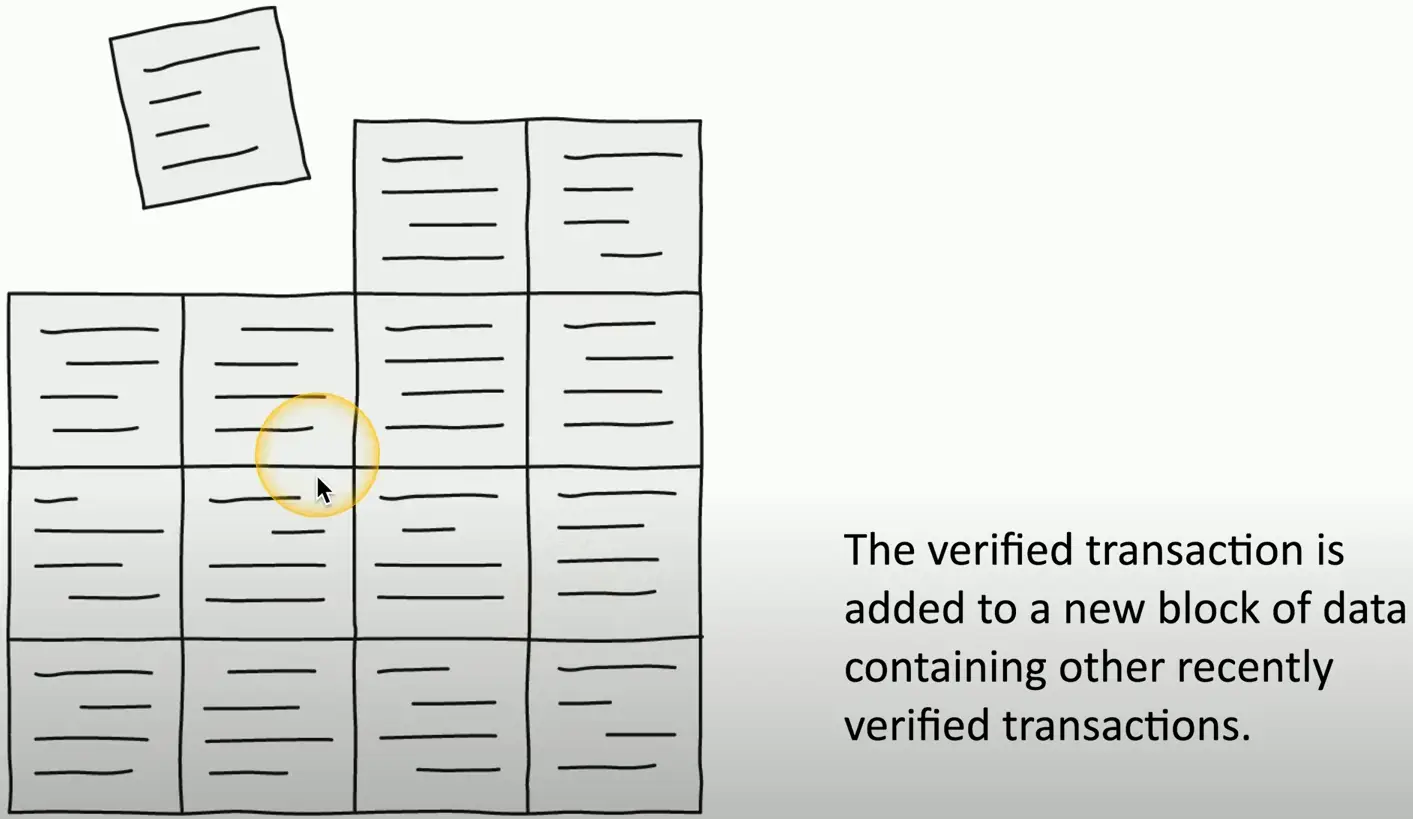

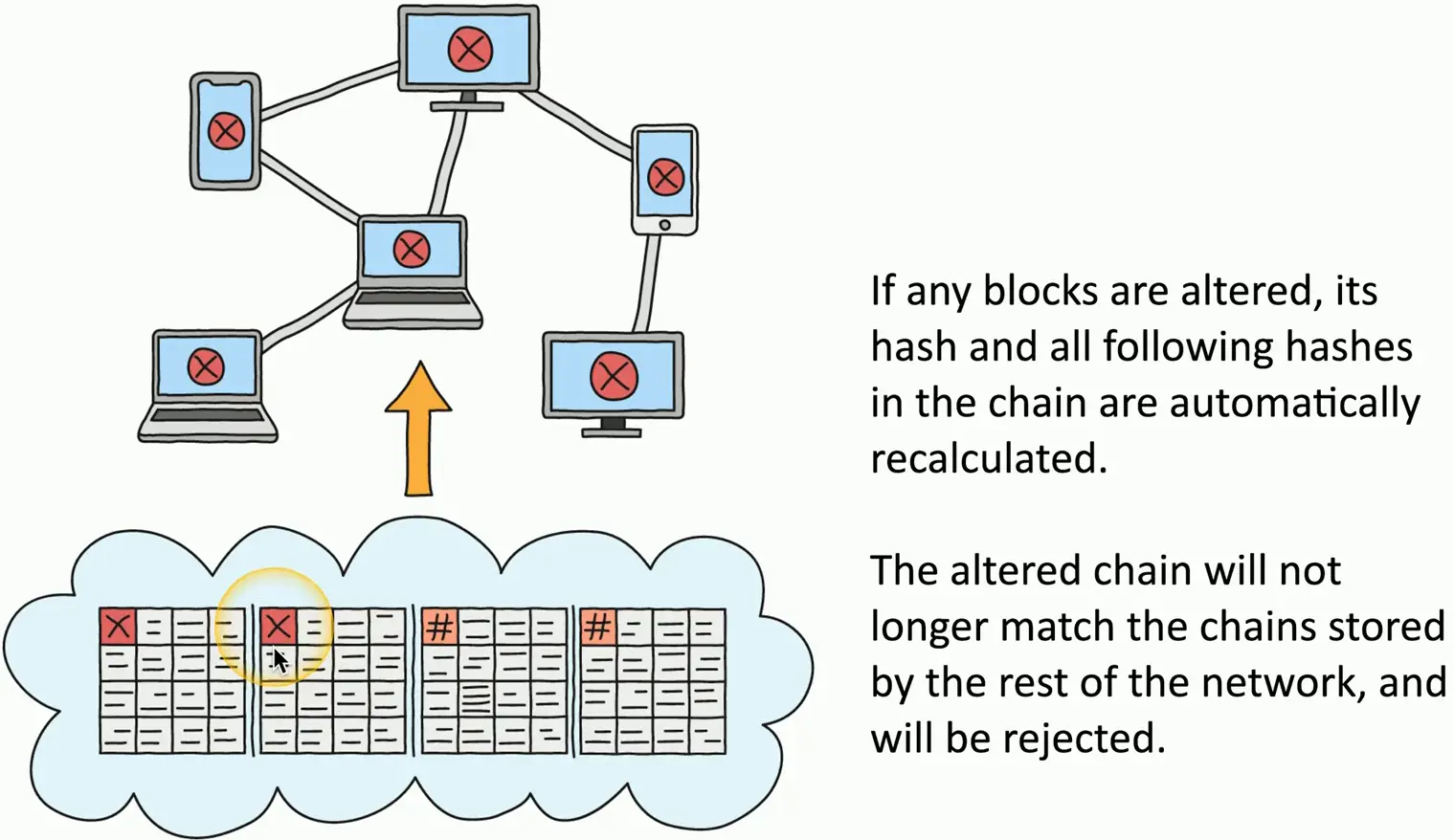

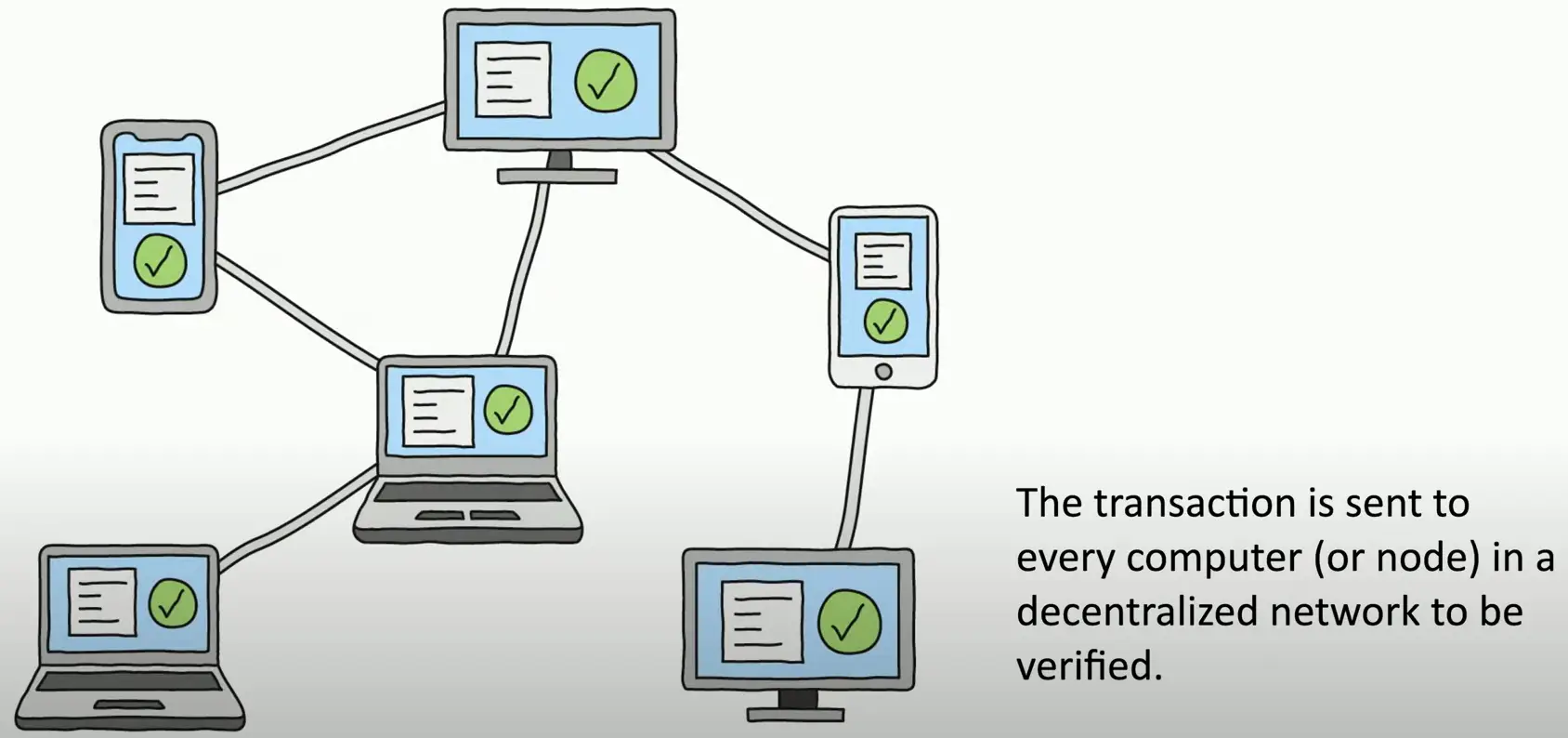

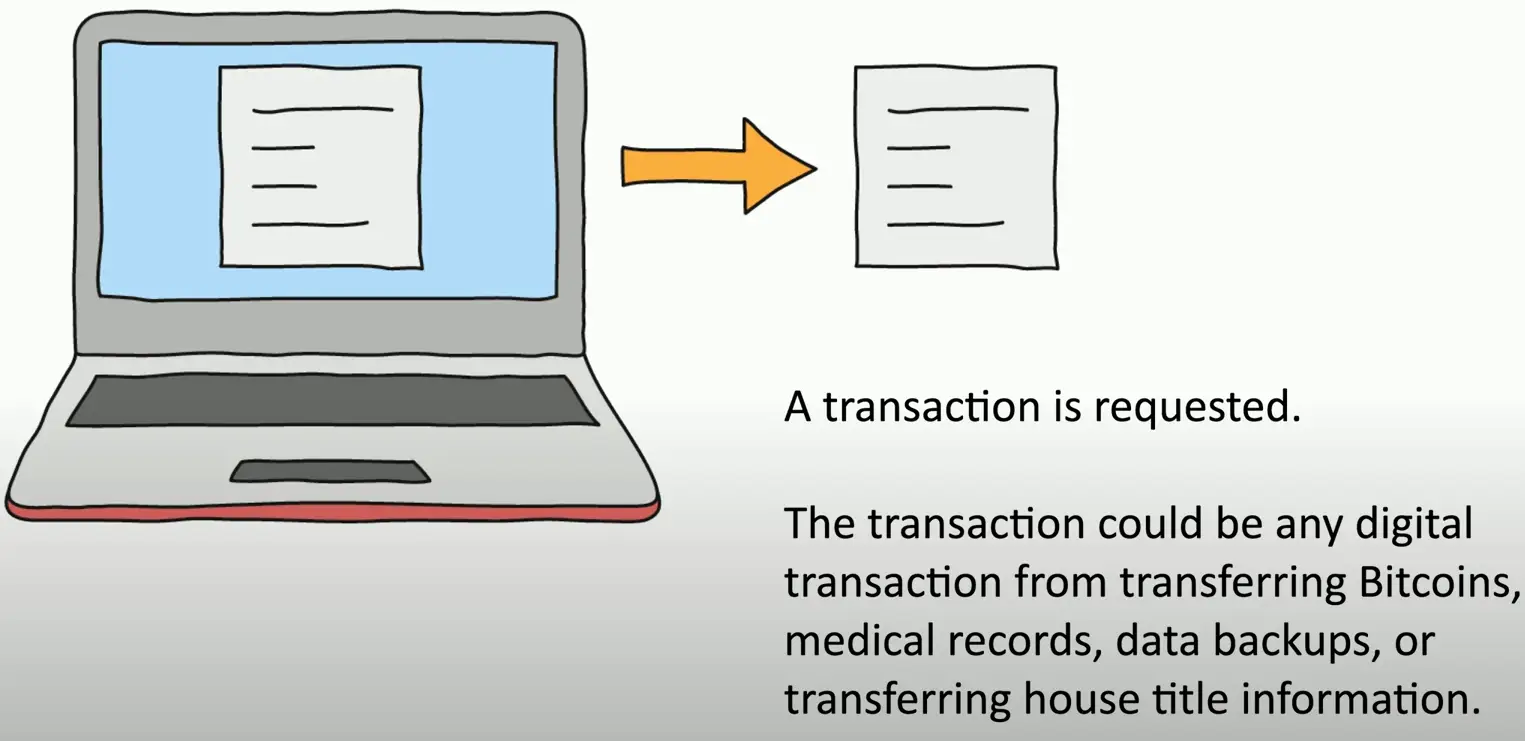

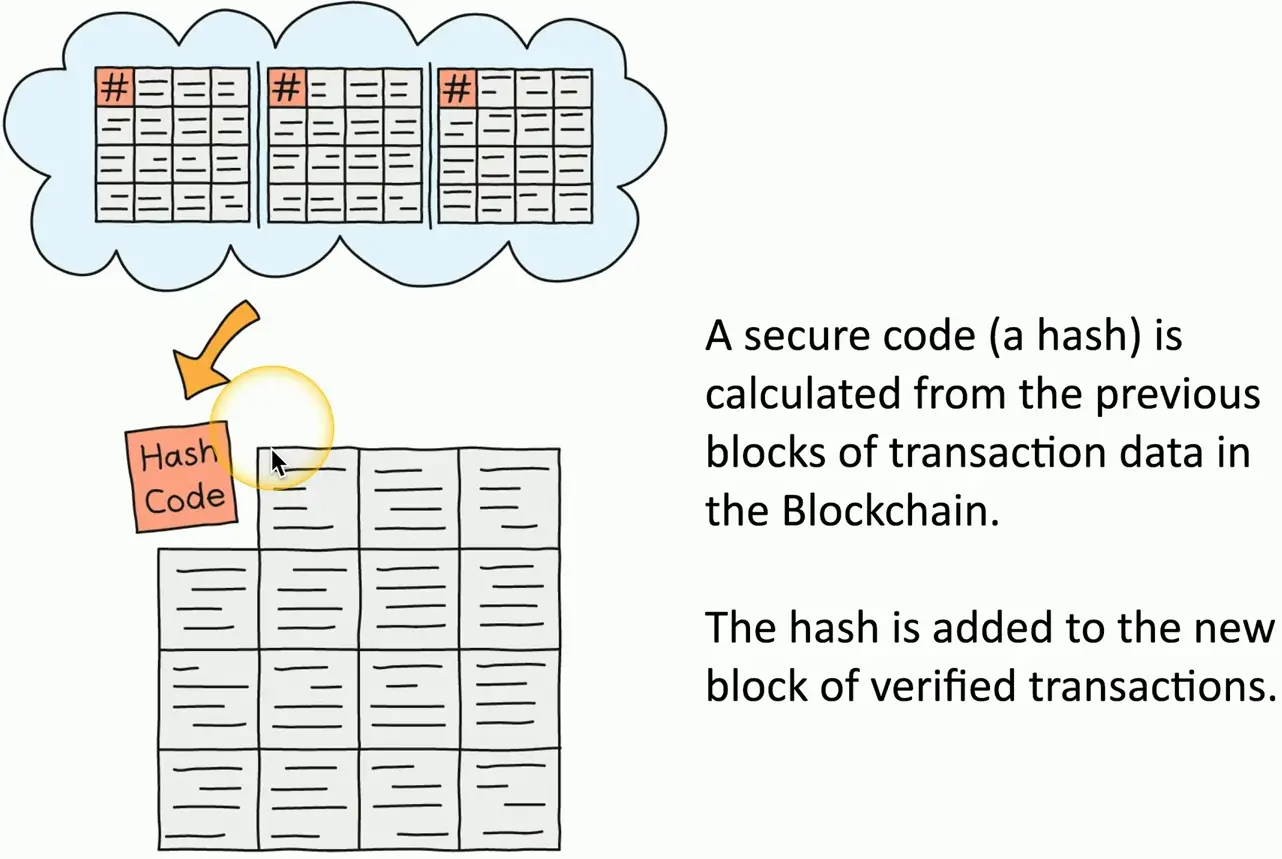

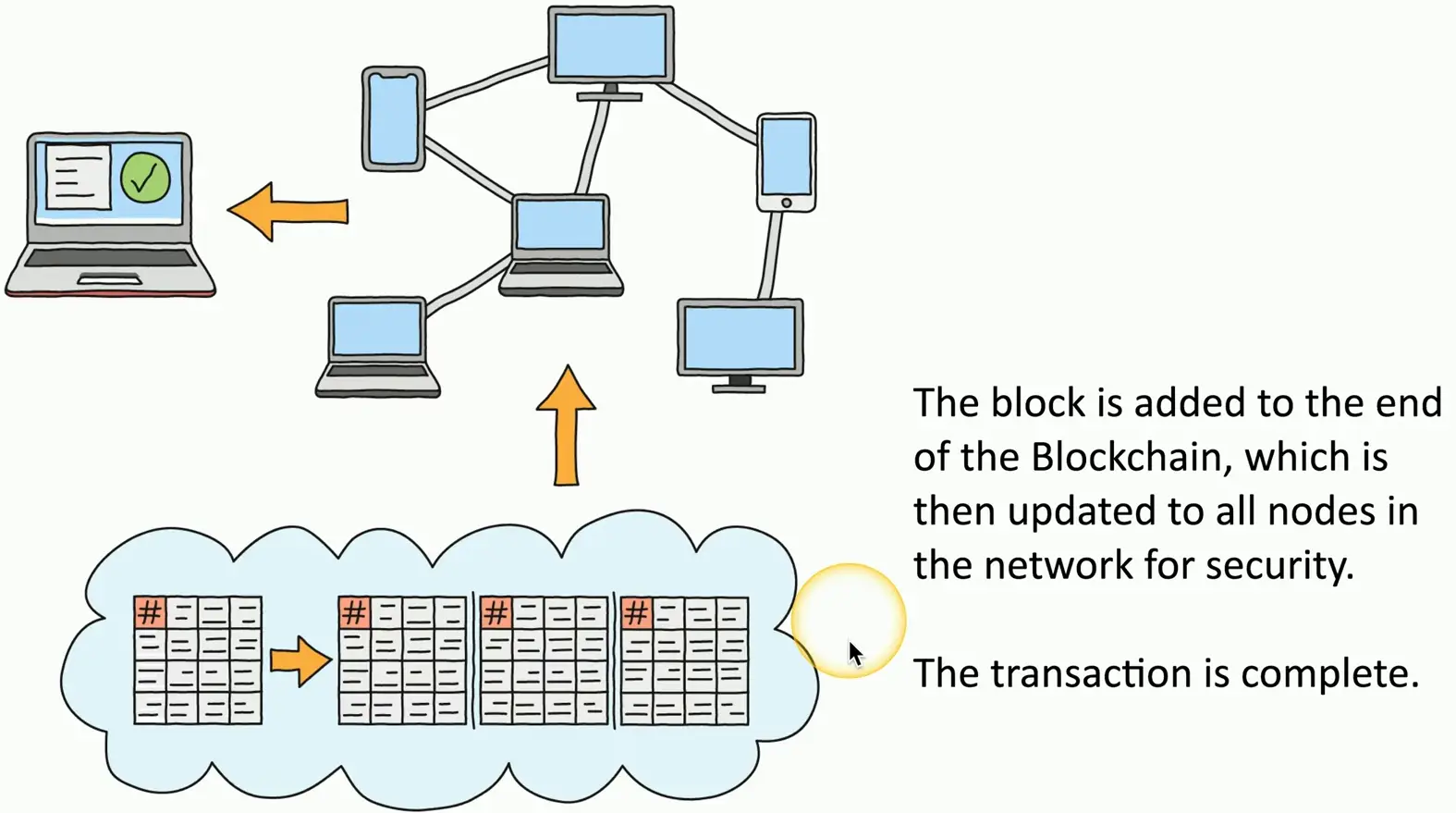

The Blockchain Process






Certificates
Digital Certificates
A public key certificate
- Binds a public key with a digital signature
- And other details about the keyholder
A digital signature adds trust
- PKI uses Certificate Authorities for additional trust
- Web of Trust adds other users for additional trust
Certificate creation can be built into the OS
- Part of Windows Domain services
- Many 3rd-party options
What’s in a digital Certificate?
X.509
Certificate Details
- Serial number
- Version
- Signature algorithm
- Issuer
- Name of the cert holder
- Public key
- And more…

Root of Trust
Everything associated with IT security requires trust
- A foundational characteristic
How to build trust from something unknown?
- Someone/something trustworthy provides their approval
Refer to the root of trust
- An inherently trusted component
- Hardware, software, firmware, or other component
- Hardware security module (HSM), Secure Enclave, Certificate Authority, etc.
Certificate Authorities
You connect to a random website
Need a good way to trust an unknown entity
- Use a trusted third-party
- An authority
Certificate Authorization (CA) has digitally signed the website certificate
- You trust the CA, therefore you trust the website
- Real-time verification
Third-party Certificate Authorities
Built-in to your browser
Purchase your website certificate
- It will be trusted by everyone’s browser
CA is responsible for vetting the request
- They will confirm the certificate owner
- Additional verification information may be required by the CA
Certificate Signing Requests
Create a key pair, then send the public key to the CA to be signed
- A certificate signing request (CSR)
The CA validates the request
- Confirms DNS emails and website ownership
CA digitally signs the cert

Private Certificate Authorities
You are your own CA
- Build it in-house
- Your devices must trust the internal CA
Needed for medium-to-large organization
- Many web servers and privacy requirements
Implement as part of your overall computing strategy
- Windows Certificate Services, OpenCA
Self-signed Certificates
Internal certificates don’t need to be signed by a public CA
- Your company is the only one going to use it
- No need to purchase trust for devices that already trust you
Build your own CA
- Issue your own certificates signed by your own CA
Install the CA certificate/trusted chain on all devices
- They will now trust any certificate signed by your internal CA
- Works exactly like a certificate you purchased
Wildcard Certificates
Subject Alternative Name (SAN)
- Extension to an X.509 certificate
- Lists additional identification information
- Allows a certificate to support many domains
Wildcard domain
- Certificates are based on the name of the server
- A wildcard domain will apply to all server names in the domain
Key Revocation
Certificate Revocation List (CRL)
- Maintained by the CA
- Can contain many revocations in a large file
Many reasons
April 2014 — CVE-2014-0160
- Heartbleed
- OpenSSL flaw put the private key of affected web servers at risk
- OpenSSL was patched, every web server certificate was replaced
- Older certificates were moved to the CRL
OCSP Stapling
Online Certificate Status Protocol
- Provides scalability for OCSP checks
The CA is responsible for responding to all client OCSP requests
Instead, have the certificate holder verify their own status
- Status information is stored on the certificate holder’s server
OCSP status is “stapled” into the SSL/TLS handshake
- Digitally signed by the CA
Getting Revocation Details to the Browser
OCSP (Online Certificate Status Protocol)
- The browser can check certificate revocation
Message usually sent to an OCSP responder via HTTP
- Easy to support over Internet links
- More efficient than downloading a CRL
Not all browsers/apps support OCSP
- Early Internet Explorer versions didn’t support OCSP
- Some support OCSP, but don’t bother checking
Threat Actors
The entity responsible for an event that has an impact on the safety of another entity
- Also called a malicious actor
Threat actor attributes
- Describes characteristics of the attacker
Useful to categorize the motivation
- Why is this attack happening?
- Is this directed or random?

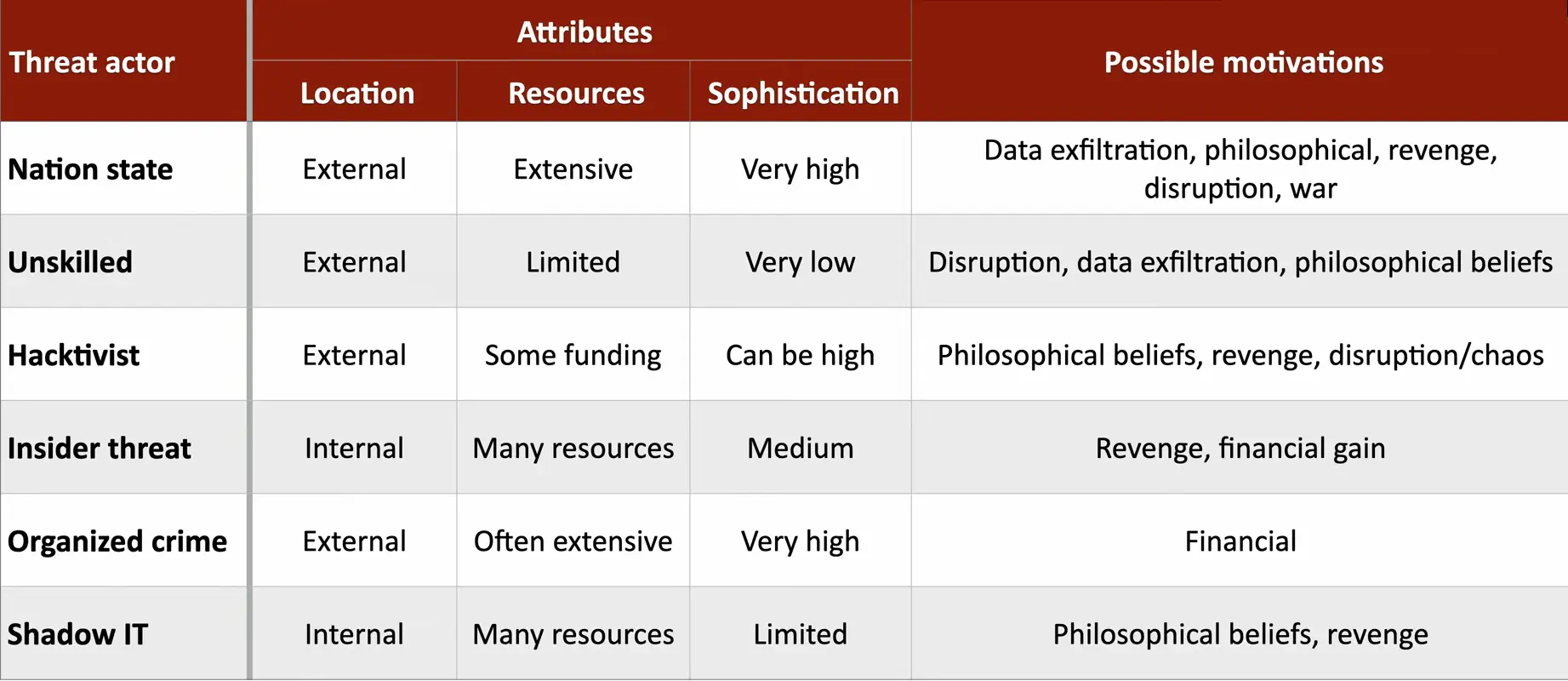

Attributes of Threat Actors
Internal/external
- The attacker is insider the house
- They are outside and trying to get in
Resources/funding
- No money
- Extensive funding
Level of sophistication/capability
- Blindly runs scripts or automated vulnerability scans
- Can write their own attack malware and scripts
Motivations of Threat Actors
What makes them tick?
- There is a purpose to this attack
Motivation include
- Data exfiltration
- Espionage
- Service disruption
- Blackmail
- Financial gain
- Philosophical/political beliefs
- Ethical
- Revenge
- Disruption/chaos
- War
Nation States
External entity
- Government and national security
Many possible motivations
- Data exfiltration, philosophical, revenge, disruption, war
Constant attacks, massive resources
- Commonly an Advanced Persistent Threat (APT)
Highest sophistication
- Military control, utilities, financial control
- United States and Israel destroyed 1000 nuclear centrifuges with the Stuxnet worm
Unskilled Attackers
Run pre-made scripts without any knowledge of what’s really happening
Motivated by the hunt
- Disruption, data exfiltration, sometimes philosophical
Can be internal or external
Not very sophisticated
- Limited resources, if any
No formal funding
- Looking for low-hanging fruit
Hacktivist
A hacker with a purpose
- Motivated by philosophy, revenge, disruption, etc.
Often an external entity
- Could potentially infiltrate to also be an insider threat
Can be remarkably sophisticated
- Very specific hacks
- DoS, website defacing, private documents release
Funding may be limited
- Some organizations have fundraising options
Insider Threat
More than just passwords on sticky notes
- Motivated by revenge, financial gain
Extensive resources
- Using the organization’s resources against themselves
An internal entity
- Eating away from the inside
Medium level of sophistication
- The insider has institutional knowledge
- Attacks can be directed at vulnerable systems
- The insider knows what to hit
Organized Crime
Professional criminals
- Motivated by money
- Almost always an external entity
Very sophisticated
- Best hacking money can buy
Crime that’s organized
- One person hacks, one person manages the exploits, another person sells the data, another handles’ customer support
Lots of capital to fund hacking efforts
Shadow IT
Going rogue
- Working around the internal IT organization
- Builds their own infrastructure
Information Technology can put up roadblocks
- Shadow IT is unencumbered
- Use the cloud
- Might also be able to innovate
Limited resources
Medium sophistication
- May not have IT training or knowledge

Common Threat Vectors
A method used by the attacker
- Gain access or infect to the target
- Also called “Attack Vectors”
A lot of work goes into finding vulnerabilities in these vectors
- Some are more vulnerable than others
IT security professional spend their career watching these vectors
- Protect existing vectors
- Find new vectors
Message-based Vectors
One the biggest (and most successful) threat vectors
- Everyone has at least one of these messaging systems
Email
- Malicious links in an email
- Link to malicious site
SMS (Short Message Service
- Attacks in a text message
Phishing Attacks
- People want to click links
- Links in an email, links send via text or IM
Deliver the malware to the user
- Attach it to the email
- Scan all attachments, never launch untrusted links
Social engineering attacks
- Invoice scams
- Cryptocurrency scams
Image-based Vectors
Easy to identify a text-based threat
- It’s more difficult to identify the threat in an image
Some image formats can be a threat
- The SVG (Scalable Vector Graphic) format
- Image is described in XML (Extensible Markup Language)
Significant security concerns
- HTML injection
- JavaScript attack code
Browsers must provide input validation
- Avoid running malicious code
File-based Vectors
More than just executables
- Malicious code can hide in many places
Adobe PDF
- A file format containing other objects
ZIP/RAR files (or any compression type)
Microsoft Office
- Documents with macros
- Add-in files
Voice Call Vectors
Vishing
Spam over IP
War dialing
Call tampering
Removable Device Vectors
Get around the firewalls
Malicious software on USB flash drives
- Infect air gapped networks
- Industrial systems, high-security services
USB devices can act as keyboards
Data exfiltration
- Terabytes of data walk out the door
- Zero bandwidth used
Vulnerable Software Vectors
Client-based
- Infected executable
- Known (or unknown) vulnerabilities
- May require constant updates
Agentless
- No installed executable
- Compromised software on the server would affect all users
- Client runs a new instance each time
Unsupported Systems Vectors
Patching is an important prevention tool
Unsupported systems aren’t patched
- There may not even be an option
Outdated OSes
- Eventually, even the manufacturer won’t help
A single system could be an entry
- Keep your inventory and records current
Unsecure Network Vectors
The network connect everything
- Ease of access for the attackers
- View all (non-encrypted) data
Wireless
- Outdated security protocols (WEP, WPA, WPA2)
- Open or rogue wireless networks
Wired
- Unsecure interfaces — No 802.1X
Bluetooth
- Reconnaissance
- Implementation vulnerabilities
Open Service Ports
Most network-based services connect over a TCP or UDP port
Every open port is an opportunity for the attacker
- Application vulnerability or misconfiguration
Every application has their own open port
- More services expand the attack surface
Firewall rules
- Must allow traffic to an open port
Default Credentials
Most devices have default usernames and passwords
The right credentials provide full control
Very easy to find the defaults for your access point or router
Supply Chain Vectors
Tamper with the underlying infrastructure
Managed service providers (MSPs)
- Access many customer networks from one location
Gain access to a network using a vendor
- 2013 Target credit card breach
Suppliers
- Counterfeit networking equipment
- Install backdoors, substandard performance and availability
- 2020 — Fake Cisco Catalyst Switches

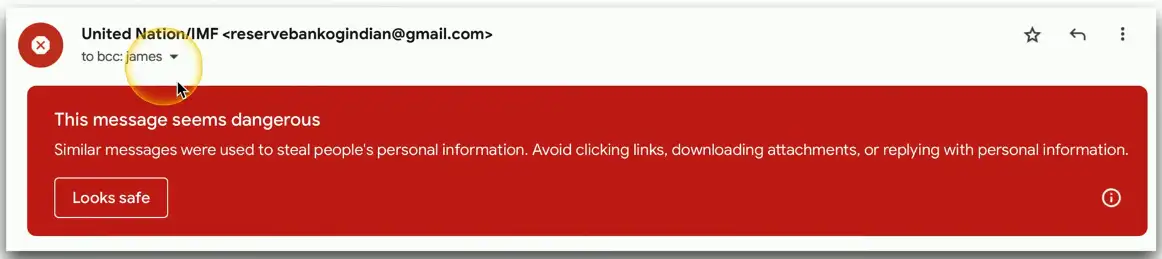

Phishing
Social engineering with a touch of spoofing
- Often delivered by email, text, etc.
- Very remarkable when well done
Don’t be fooled
Usually there’s something not quite right
Business Email Compromise
We trust email sources
- The attackers take advantage of this trust
Spoofed email addresses
Financial fraud
- Send emails with updated bank information
- Modify wire transfer details
The recipient clicks the links
- The attachments have malware
Tricks and Misdirection
How are they so successful?
- Digital slight of hands
- It fools the best of us
Typo squatting
Pretexting
- Lying to get information
- Attacker is a character in a situation they create
- Hi, we are calling from Visa regarding an automated payment to your utility service
Phishing with different bait
Vishing (voice phishing) is done over the phone or voicemail
- Call ID spoofing is common
- Fake security checks or bank updates
Smishing (SMS phishing) is done by text message
- Spoofing is a problem here as well
- Forwards links or asks for personal information
Variations on a theme
- The fake check scam, phone verification code scam, Boss/CEO scam, advance-fee scam
- Some great summaries on https://reddit.com/r/Scams
Impersonation
A Pretext…
Before the attack, the trap is set
- There is an actor and a story
“Hello sir, my name is Wendy, and I’m from Microsoft Windows. This is an urgent check-up call for your computer as we have found several problems with it.”
Voice mail: “This is an enforcement action executed by the US Treasury, intending your serious attention.”
“Congratulations on your excellent payment history! You now qualify for 0% interest rates on all of your credit card accounts.”
Attackers pretend to be someone they are not
- Halloween for the fraudsters
User some of those details from reconnaissance
- You can trust me, I’m with your help desk
Attack the victim as someone higher in rank
- Office of the Vice President for Scamming
Throw tons of technical details around
- Catastrophic feedback due to the depolarization of the differential magnetometer
Be a buddy
Extracting information from the victim
- The victim doesn’t even realize this is happening
- Hacking the human
Often seen with vishing
- Can be easier to get this information over the phone
These are well-documented psychological techniques
- They cannot just ask, “So, what’s your password?”
Identify Fraud
Your identity can be used by others
- Keep your personal information safe!
Credit card fraud
- Open an account in your name, or use your credit card information
Bank Fraud
- Attacker gains access to your account or opens a new account
Loan fraud
- Your information is used for a loan or lease
Government benefits fraud
- Attacker obtains benefits on your behalf
Protect against impersonation
Never volunteer information
Don’t disclose personal details
Always verify before revealing info
- Call back, verify through 3rd parties
Verification should be encouraged
- Especially if your organization owns valuable information
Watering Hole Attack
Watering hole is a computer attack strategy in which an attacker guesses or observes which websites an organization’s users frequent, and then uses one or more of the websites to distribute malware.
What if your network was really secure?
- You didn’t even plug in that USB key from the parking lot
The attackers can’t get in
- Not responding to phishing emails
- Not opening any email attachments
Have the mountain come to you
- Go where the mountain hangs out
- the watering hole
- This requires a bit of research
Executing the Watering Hole Attack
Determine which websites the victim group uses
- Educated guess — Local coffee or sandwich shop
- Industry-related sites
Infect one of these third-party sites
- Site vulnerability
- Email attachments
Infect all visitors
- But you are just looking for specific victims
- Now you’re in!
Because that’s where the money is
January 2017
Polish Financial Supervision Authority, National Banking and Stock Commission of Mexico, State-owned bank in Uruguay
- The watering hole was sufficiently poisoned
Visiting the site would download malicious JavaScript files
- But only to IP addresses matching banks and other financial institutions
Did the attack work?
Watching the Watering Hole
Defense-in-depth
- Layered defense
- It’s never one thing
Firewall and IPS
- Stop the network traffic before things get bad
Antivirus/Anti-malware signature updates
- The Polish Financial Supervision Authority attack code was recognized and stopped by generic signatures in Symantec’s antivirus software
Other Social Engineering Attacks
Disseminate factually incorrect information
- Create confusion and division
Influence campaigns
- Sway public opinion on political and social issues
Nation-state actors
- Divide, distract, and persuade
Advertising is an option
- Buy a voice for your opinion
Enabled through Social media
- Creating, sharing, liking, amplifying

Brand Impersonation
Pretend to be a well-known brand
- Coca-cola, McDonald’s, Apple, etc.
Create tens of thousands of impersonated sites
- Get into the Google index, click an ad, get a WhatsApp message
Visitors are presented with a pop-up
- You won! Special offer! Download the video!
Malware infection is almost guaranteed
- Display ads, site tracking, data exfiltration
Types of Vulnerabilities
Finding Malware
Malware runs in memory
- Memory forensics can find the malicious code
Memory contains running processes
- DLLs (Dynamic Link Libraries)
- Threads
- Buffers
- Memory management functions
- And much more
Malware is hidden somewhere
- Malware runs in its own process
- Malware injects itself into a legitimate process
Memory Injection
Add code into the memory of an existing process
- Hide malware inside the process

Get access to the data in that process
- And the same rights and permissions
- Perform a privilege escalation
DLL Injection
Dynamic-Link Library
- A Windows library containing code and data
- Many applications can use this library
Attackers inject a path to a malicious DLL
- Runs as part of the target process
One of the most popular memory injection methods
- Relatively easy to implement

Buffer Overflows
Overwriting a buffer of memory
- Spills over into other memory areas
Developers need to perform bounds checking
- The attackers spend a lot of time looking for openings
Not a simple exploit
- Takes time to avoid crashing things
- Takes time to make it do what you want
A really useful buffer overflow is repeatable
- Which means that a system can be compromised


Race Conditions
Race Condition
A programming conundrum
- Sometimes, things happen at the same time
- This can be bad if you’ve not planned for it
Time-of-check to time-of-use attack (TOCTOU)
- Check the system
- When do you use the results of your last check?
- Something might happen between the check and the use
Race Condition Example

Race Conditions can cause big problems
January 2004 — Mars rover “Spirit”
- Reboot when a problem is identified
- Problem is with the file system, so reboot because of the file system problem
- Reboot loop was the result
Pwn2Own Vancouver 2023 — Tesla Model 3
- TOCTOU attack against the Tesla infotainment using Bluetooth
- Elevated privileges to root
- Earned $100,000 US prize, and they keep the Tesla
Malicious Updates
Software Updates
Always keep your operating system and applications updated
- Updates often include bug fixes and security patches
This process has its own security concerns
- Note every update is equally secure
Follow best practices
- Always have a known-good backup
- Install from trusted sources
- Did I mention the backup?
Downloading and updating
Install updates from a downloaded file
- Always consider your actions
- Every installation could potentially be malicious
Confirm the source
- A random pop-up during web browsing may not be legitimate
Visit the developer’s site directly
- Don’t trust a random update button or random downloaded file
Many OSes will only allow signed apps
- Don’t disable your security controls
Automatic Updates
The app updates itself
- Often includes security checks/digital signatures
Relatively trustworthy
- Comes directly from the developer
SolarWinds Orion supply chain attack
- Reported in December 2025
- Attackers gained access to the SolarWinds development system
- Added their own malicious code to the updates
- Gained access to hundreds of government agencies and companies
Operating System Vulnerabilities
Operating Systems
A foundational computing platform
- Everyone has an OS
- This makes the OS a very big target
Remarkably complex
- Millions of lines of code
- More code means more opportunities for a security issues
The vulnerabilities are already in there
- We’ve just not found them yet
A month OS updates
A normal month of Windows updates
- Patch Tuesday — 2nd Tuesday of each month
- Other companies have similar schedules
May 9, 2023 — Nearly 50 security patches
- 8 Elevation of Privilege Vulnerabilities
- 4 Security Feature Bypass Vulnerabilities
- 12 Remote Code Execution Vulnerabilities
- 8 Information Disclosure Vulnerabilities
- 5 Denial of Service Vulnerabilities
- 1 Spoofing Vulnerability
Checkout Microsoft Security Center for latest patches and updates: https://msrc.microsoft.com/
Best Practices for OS Vulnerabilities
Always update
- Monthly or on-demand updates
- It’s a race between you and the attackers
May require testing before deployment
- A patch might break something else
May require a reboot
Have a fallback plan
SQL Injection
Code Injection
Code Injection
- Adding your own information into a data stream
Enabled because of bad programming
- The application should properly handle input and output
So many data types
SQL Injection
SQL — Structured Query Language
- The most common relational database management system language
SQL injection (SQLi)
- Put your own SQL requests into an existing application
- Your application shouldn’t allow this
Can often be executed in a web browser
- Inject in a form or field
Building a SQL Injection
An example of website code:
"SELECT * FROM users WHERE name = '" + userName + "'";
How this looks to the SQL database
"SELECT * FROM users WHERE name = 'Professor'";
Add more information to the query (SQLi):
"SELECT * FROM users WHERE name = 'Professor' OR '1' = '1'";
This could be very bad
- View all database information, delete database information, add users, denial of service, etc.
SQL Injection Demonstration
Source: https://owasp.org/www-project-webgoat/


Cross-site Scripting
XSS
XSS
- Cascading Style Sheets (CSS) are something else entirely
Originally called cross-site because of browser security flaws
- Information from one site could be shared with another
One of the most common web app vulnerabilities
- Takes advantage of the trust a user has for a site
- Complex and varied
XSS commonly uses JavaScript
- Do you allow scripts? Me too.

Non-persistent (reflected) XSS Attack
Website allows scripts to run in user input
- Search box is a common source
Attacker emails a link that takes advantage of this vulnerability
- Runs a script that sends credentials/session IDs/Cookies to the attacker
Script embedded in the URL executes in the victim’s browser
- As if it came from the server
Attacker uses credentials/session IDs/cookies to steal victim’s information without their knowledge


Persistent (stored) XSS Attack
Attacker posts a message to a social media
- Includes the malicious payload
It’s now “persistent”
- Everyone gets the payload
No specific target
For social networking, this can spread quickly
- Everyone who views the message can have it posted to their page
- Where someone else can view it and propagate it further
Hacking a Subaru
June 2017, Aaron Guzman
When authenticating with Subaru, users get a token
- This token never expires (bad!)
A valid token allowed any service request
- Even adding your email address to someone else’s account
- Now you have full access to someone else’s car
Web front-end included an XSS vulnerability
- A user clicks a malicious link, and you have their token
Protecting Against XSS
Be careful when clicking untrusted links
- Never blindly click in your email inbox, Never.
Consider disabling JavaScript
- Or control with an extension
- This offers limited protection
Keep your browser and applications updated
- Avoid the nasty browser vulnerabilities
Validate input
- Don’t allow users to add their own scripts to an input field
Hardware Vulnerabilities
We are surrounded by hardware devices
- Many don’t have an accessible OS
These devices are potential security issues
- A perfect entry point for an attack
Everything is connecting to the network
- Light bulbs, garage doors, refrigerators, door locks
- IoT is everywhere
The security landscape has grown
- Time to change your approach
Firmware
The software inside the hardware
- The OS of the hardware device
Vendors are the only ones who can fix their hardware
- Assuming they know about the problem
- And care about fixing it
Trane Comfortlink II thermostats
- Control the temperature from your phone
- Trane notified of three vulnerabilities in April 2014
- Two patched in April 2015, one in January 2016
End-of-life
End of life (EOL)
- Manufacturer stops selling a product
- May continue supporting the product
- Important for security patches and updates
End of service life (EOSL)
- Manufacturer stops selling a product
- Support is no longer available for the product
- No ongoing security patches or updates
- May have a premium-cost support option
Technology EOSL is a significant concern
- Security patches are part of normal operation
Some devices remain installed for a long time
Legacy devices
- Older OSes, applications, middleware
May be running end-of-life software
- The risk need to be compared to the return
May require additional security protections
- Additional firewall rules
- IPS signatures for older OSes
Virtualization Vulnerabilities
Virtualization Security
Quite different from non-virtual machines
Quantity of resources vary between VMs
Many similarities to physical machines
- Complexity adds opportunity for the attackers
Virtualization vulnerabilities
- Local privilege escalations
- Command injection
- Information disclosure
VM escape protection
The virtual machine self-contained
- There’s no way out
- Or is there?
Virtual machine escape
- Break out of the VM and interact with the host OS or hardware
Once you escape the VM, you have great control
- Control the host and control other guests VMs
This would be a huge exploit
- Full control of the virtual world
Escaping the VM
March 2017 — Pwn2Own competition
- Hacking contest
- You pwn it, you own it — along with some cash
JavaScript engine bug in Microsoft Edge
- Code execution in the Edge sandbox
Windows 10 kernel bug
Hardware simulation bug in VMware
Patches were released soon afterward
Resource Reuse
The hypervisor manages the relationship between physical and virtual resources
- Available RAM, storage space, CPU availability, etc.
These resources can be reused between VMs
- Hypervisor host with 4 GB of RAM
- Supports three VMs with 2 GB of RAM each
- RAM is allocated and shared between VMs
Data can inadvertently be shared between VMs
- Time to update the memory management features
- Security patches can mitigate the risk
Cloud Specific Vulnerabilities
Security in the Cloud
Cloud adoption has been nearly universal
- It’s difficult to find a company NOT using the cloud
We have put sensitive data in the cloud
- The attackers would like this data
We are not putting in the right protections
- 76% of organizations aren’t using MFA for management of console users
Simple best-practices aren’t being used
- 63% of code in production is unpatched
- Vulnerabilities rated high or critical (Common Vulnerability Scoring System - CVSS >= 7.0)
Attack the service
Denial of Service (DoS)
- A fundamental attack type
Authentication bypass
- Take advantage of weak or faulty authentication
Directory transversal
- Faulty contiguration put data at risk
Remote code execution
- Take advantage of unpatched systems
Attack the application
Web application attacks have increased
- Log4j and Spring Cloud Function
- Easy to exploit, rewards are extensive
Cross-site scripting
- Take advantage of poor input validation
Out of bound write
- Write to unauthorized memory areas
- Data corruption, crashing, or code execution
SQL injection
- Get direct access to a database
Supply Chain Vulnerabilities
Supply Chain Risk
The chain contains many moving parts
- Raw materials, suppliers, manufacturers, distributors, customers, consumers
Attackers can infect any step along the way
- Infect different parts of the chain without suspicion
- People trust their suppliers
One exploit can infect the entire chain
Service Providers
You can control your own security posture
- You can’t always control a service provider
Service providers often have access to internal services
- An opportunity for the attacker
Many types of providers
- Network, utility, office cleaning, payroll/accounting, cloud services, system administration, etc.
Consider ongoing security audits of all providers
- Should be included with the contract
Target Service Provider Attack
Target Corp. breach — November 2013
- 40 million credit cards stolen
Heating and AC firm in Pennsylvania war infected
- Malware delivered in an email
- VPN credentials for HVAC techs were stolen
HVAC vendor was the supplier
- Attackers used a wide-open Target network to infect every cash register at 1800 stores
Hardware Providers
Can you trust your new server/router/switch/firewall/software?
- Supply chain cybersecurity
Use a small supplier base
- Tighter control of vendors
Strict controls over policies and procedures
- Ensure proper security is in place
Security should be part of the overall design
Cisco or not Cisco?
All network traffic flows
- A perfect visibility and pivot point
July 2022 — DHS arrests reseller CEO
- Sold more than $1 billion of counterfeit Cisco products
- Created over 30 different companies
- Had been selling these since 2013
Knock-offs made in China
- Sold as authentic Cisco products
- Until they started breaking and catching on fire
Software providers
Trust is a foundation of security
- Every software installation questions our trust
Initial installation
- Digital signature should be confirmed during installation
Updates and patches
- Some software updates are automatic
- How secure are the updates?
Open source is not immune
- Compromising the source code itself
SolarWinds Supply Chain Attack
SolarWinds Orion
- Used by 18000 customers
- Including Fortune 500 and US Federal Government
Software updates compromised in March and June 2020
- Upgrades to existing installations
- Not detected until December 2020
Additional breaches took advantage of the exploit
- Microsoft, Cisco, Intel, Deloitte
- Pentagon, Homeland Security, State Department, Department of Energy, National Nuclear Security Administration, Treasury
Misconfiguration Vulnerabilities
Open Permissions
Very easy to leave a door open
- The hackers will always find it
Increasingly common with cloud storage
- Statistical chance of finding an open permission
June 2017–14 million Verizon records exposed
- Third-party left an Amazon S3 data repository open
- Researcher found the data before anyone else
Many, Many other examples
Unsecured Admin Accounts
The Linux root account
- The Windows Administrator or superuser account
Can be misconfiguration
- Intentionally configuring an easy-to-hack password
- 123456, ninja, football
Disable direct login to the root account
- Use the
su or sudo option
Protect accounts with root or administrator access
- There should not be a lot of these
Insecure Protocols
Some protocols aren’t encrypted
- All traffic sent in the clear
- Telnet, FTP, SMTP, IMAP
Verify with a packet capture
- View everything sent over the network
Use the encrypted versions
Default Settings
Every application and network device has a default login
- Not all of these are ever changed
Mirai Botnet
- Take advantage of default configurations
- Takes over Internet of Things (IoT) devices
- 60+ default configurations
- Camera, routers, doorbells, garage door openers, etc.
Mirai released as open-source software
- There’s a lot more where that came from
Open Ports and Services
Services will open ports
- It’s important to manage access
Often managed with a firewall
- Manage traffic flows
- Allow or deny based on port number or application
Firewall rulesets can be complex
- It’s easy to make mistake
Always test and audit
Mobile Device Vulnerabilities
Mobile Device Security
Challenging to secure
- Often need additional security policies and systems
Relatively small
Almost always in motion
- You never know where it might be
Packed with sensitive data
- Personal and organizational
Constantly connected to the Internet
- Nothing bad happens on the Internet
Jailbreaking/Rooting
Mobile devices are purpose built systems
- You don’t have access to the OS
Gaining access
- Android — Rooting
- Apple iOS — Jailbreaking
Install custom firmware
Uncontrolled access
- Circumvent security features
- The MDM (Mobile Device Management) becomes relatively useless
Sideloading
Malicious apps can be a significant security concern
- One Trojan horse can create a data breach
Manage installation sources
- The global or local app store
Sideloading circumvents security
- Apps can be installed manually without using an app store
- Again, your MDM becomes relatively useless
Zero-day Vulnerabilities
Vulnerabilities
Many applications have vulnerabilities
- We have just not found them yet
Someone is working hard to find the next big vulnerability
- The good guys share these with developers
Attackers keep these yet-to-be-discovered holes to themselves
- They want to use these vulnerabilities for personal gain
Zero-day Attacks
Attackers search for unknown vulnerabilities
- They create exploits against these vulnerabilities
The vendor has no idea the vulnerability exists
- They don’t have a fix for an unknown problem
Zero-day attacks
- An attack without a patch or method of mitigation
- A race to exploit the vulnerability or create a patch
- Difficult to defend against the unknown
Common Vulnerabilities and Exposure (CVE)
Zero-day Attacks in the wild
April 2023 — Chrome zero-day
- Memory corruption, sandbox escape
May 2023 — Microsoft zero-day patch
- Secure boot zero-day vulnerability
- Attackers can run UEFI-level self-signed code
May 2023 — Apple iOS and iPadOS zero-days
- Three zero-day attacks
- Sandbox escape, disclosure of sensitive information, arbitrary code execution
- Active exploitation
An Overview of Malware
Malware
Malicious Software
Gather information
Show you advertising
Viruses and worms
- Encrypt your data
- Ruin your day
Malware Types and Methods
- Viruses
- Worms
- Ransomware
- Trojan Horse
- Rootkit
- Keylogger
- Spyware
- Bloatware
- Logic bomb
How You Get Malware
These all work together
- A worm takes advantage of a vulnerability
- Installs malware that includes a remote access backdoor
- Additional malware may be installed later
Your computer must run a program
- Email link — Don’t click links
- Web page pop-up
- Drive-by download
- Worm
Your computer is vulnerable
- OS — Keep your OS updated
- Applications — Check with the publisher
Your Data is Valuable
Personal Database
- Family pictures and videos
- Important documents
Organization data
- Planning documents
- Employee personally identifiable information (PII)
- Financial records
- Company private data
How much is it worth?
Ransomware
A particularly nasty malware
- Your data is unavailable until you provide cash
Malware encrypts your data files
- Pictures, documents, music, movies, etc.
- Your OS remains available
You must pay the attackers to obtain the decryption key
- Untraceable payment system
- An unfortunate use of public-key cryptography
Protecting against Ransomware
Always have a backup
- An offline backup, ideally
Keep your OS up to date
- Patch those vulnerabilities
Keep your applications up-to-date
Keep your anti-virus/anti-malware signatures up-to-date
Keep everything up-to-date
Viruses and Worms
Virus
Malware that can reproduce itself
- It needs you to execute a program
Reproduces through file systems or the network
- Just running a program can spread a virus
May or may not cause problems
- Some viruses are invisible, some are annoying
Anti-virus is very common
- Thousands of new viruses every week
- Is your signature file updated?
Virus Types
Program viruses
- It’s part of the application
Boot sector viruses
Script viruses
Macro viruses
- Common in Microsoft Office
Fileless Virus
A stealth attack
- Does a good job of avoiding anti-virus detection
Operates in memory
- But never installed in a file or application

Worms
Malware that self-replicates
- Doesn’t need you to do anything
- Uses the network as a transmission medium
- Self-propagates and spreads quickly
Worms are pretty bad things
- Can take over many systems very quickly
Firewalls and IDS/IPS can mitigate many worms infestations
- Doesn’t help much once the worm gets inside
Wannacry Worm

Spyware and Bloatware
Spyware
Malware that spies on you
- Advertising, identity theft, affiliate fraud
Can trick you into installing
- Peer to peer, fake security software
Browser monitoring
Keyloggers
- Capture every keystroke
- Send your keystrokes back to the attacker
Protecting Against Spyware
Maintain your anti-virus/anti-malware
- Always have the latest signatures
Always know what you’re installing
- And watch your options during the installation
Where’s your backup?
- You might need it someday
- Cleaning adware isn’t easy
Run some scans
Bloatware
A new computer or phone
- Includes the OS and important apps
Also includes applications you didn’t expect
Apps are installed by the manufacturer
Uses valuable storage space
- May also add to overall resource usage
- The system may be slower than expected
- Could open your system to exploits
Removing Bloatware
Identify and remove
- This may be easier said than done
Use the built-in uninstaller
- Works for most applications
Some apps have their own uninstaller
Third-party uninstallers and cleaners
- Probably not the first option
- Always have a backup
Other Malware Types
Keyloggers
Your keystrokes contain valuable information
- Website login URLs, passwords, email messages
Save all of your input
Circumvent encryption protections
- Your keystrokes are in the clear
Other data logging
- Clipboard logging, screen logging, instant messaging, search engine queries
Keylogger in action

Logic Bomb
Waits for a predefined event
- Often left by someone with grudge
Time bomb
User event
Difficult to identify
- Difficult to recover if it goes off
Real-world Logic Bomb
March 19, 2013, South Korea
- Email wit malicious attachment sent to South Korean organizations
- Posed as a bank email
- Trojan installs a malware
March 20, 2013, 2 PM local time
- Malware time-based logic bomb activates
- Storage and master boot record (MBR) deleted, system reboots
Boot device not found.
Please install an Operating System on your hard disk.
Preventing a Logic Bomb
Difficult to recognize
- Each is unique
- No predefined signatures
Process and procedures
Electronic monitoring
- Alerts on changes
- Host-based intrusion detection, Tripwire, etc.
Constant auditing
- An administrator can circumvent existing systems
Rootkits
Originally a Unix technique
Modifies core system files
Can be invisible to the OS
- Won’t see it in the Task Manager
Also, invisible to traditional anti-virus utilities
- If you cannot see it, you cannot stop it
Finding and Removing Rootkits
Look for the unusual
Use a remover specific the rootkit
- Usually built after the rootkit is discovered
Secure boot with UEFI
Physical Attacks
Physical Attacks
Old school security
- No keyboard, no mouse, no command line
Many ways to circumvent digital security
- A physical approach must be considered
If you have physical access to a server, you have full control
- An OS can’t stop an in-person attack
Door locks keep out the honest people
Brute Force
The physical version
Push through the obstruction
Check your physical security
- Check the windows
- Try the doors
Attackers will try everything
- You should be prepared for anything
RFID Cloning
RFID is everywhere
Duplicators are on Amazon
The duplication process takes seconds
- Read one card
- Copy to another
This is why we have MFA
- Use another factor with the card
Environmental Attacks
Attack everything supporting the technology
- The operating environment
Power monitoring
HVAC (Heating, Ventilation, and Air conditioning) and humidity controls
- Large data centers must be properly cooled
Fire suppression
Denial of Service
Denial of Service
Force a service to fail
Take advantage of a design failure or vulnerability
- Keep your system patched!
Cause a system to be unavailable
Create a smokescreen for some other exploit
- Precursor to a DNS spoofing attack
Doesn’t have to be complicated
A “Friendly” DoS
Unintentional DoSing
- It’s not always an né’er-do-well
Network DoS
Bandwidth DoS
- Downloading multi-gigabyte Linux distribution over a DSL line
The water line breaks
Distributed Denial of Service (DDoS)
Launch an army of computers to bring down a service
- Use all the bandwidth or resources — traffic spike
This is why the attackers have botnets
- Thousands or millions of computers at your command
- At its peak, Zeus botnet infected over 3.6 million PCs
- Coordinated attack
Asymmetric threat
- The attacker may have fewer resources than the victim
DDoS Reflection and Amplification
Turn your small attack into a big attack
- Often reflected off another device or service
An increasingly common network DDoS technique
- Turn Internet services against the victim
Uses protocols with little (if any) authentication or checks
- NTP, DNS, ICMP
- A common example of protocol abuse


DNS Attacks
DNS Poisoning
Modify the DNS server
- Requires some crafty hacking
Modify the client host file
- The host file takes precedent over DNS queries
Send a fake response to a valid DNS request
- Requires a redirection of the original request or the resulting response
- Real-time redirection
- This is an on-path attack
DNS Spoofing/Poisoning in Action


Domain Hijacking
Get access to the domain registration, and you have control where the traffic flows
- You don’t need to touch the actual servers
- Determines the DNS names and DNS IP addresses
Many ways to get into the account
- Brute-force
- Social engineer the password
- Gain access to the email address that manages the account
- The usual things
Saturday, October 22, 2016, 1 PM
- Domain name registrations of 36 domains were changes
- Brazilian bank
- Desktop domains, mobile domains, and more
Under hacker control for 6 hours
- The attackers became the bank
5 million customers, $27 billion in assets
- Results of the hack have not been publicly released
URL Hijacking
Make money from your mistakes
- There’s a lot of advertising on the Internet
Sell the badly spelled domain to the actual owner
Redirect to a competitor
- Not as common, legal issues
Phishing site
- Looks like the real site, please log in
Infect with a drive-by download
Types of URL Hijacking
Typosquatting/brandjacking
- Take advantage of poor spelling
Outright misspelling
- professormesser.com vs. professormessor.com
A typing error
A different phrase
Different top-level domain
Wireless Attacks
It started as a normal day
Surfing along on your wireless network
And then it happens again
You may not be able to stop it
- There’s (almost) nothing you can do
- Time to get a long patch cable
Wireless deauthentication
- A significant wireless denial of service (DoS) attack
802.11 management frames
802.11 wireless includes a number of management features
- Frames that make everything work
- You never see them
Important for the operation of 802.11 wireless
- How to find access points, manage QoS, associate/disassociate with an access point, etc.
Original wireless standards didn’t add protection for management frames
- Sent in the clear, no authentication or validation

Protecting against deauth attacks
IEEE has already addressed the problem
- Updates included with 802.11ac
Some important management frames are encrypted
- Disassociate, deauthenticate, channel switch announcement, etc.
Not everything is encrypted
- Beacons, probes, authentication, association
Radio Frequency (RF) Jamming
Denial of service
- Prevent wireless communication
Transmit interfering wireless signals
- Decrease the signal-to-noise ratio at the receiving device
- The receiving device can’t hear the good signal
Sometimes it’s not intentional
- Interference, not jamming
- Microwave oven, fluorescent lights
Jamming is intentional
- Someone wants your network to not work
Wireless Jamming
Many types
- Constant, random bits/Constant, legitimate frames
- Data sent at random times — random data and legitimate frames
- Reactive jamming — only when someone else tries to communicate
Needs to be somewhere close
- Difficult to be effective from a distance
Time to go fox hunting
- You’ll need the right equipment to hunt down the jam
- Directional antenna, attenuator
On-path Attacks
On-path Network Attack
How can an attacker watch without you knowing?
- Formerly known as man-in-the-middle
Redirects your traffic
- Then passes it on to the destination
- You never know your traffic was redirected
ARP poisoning
- On-path attack on the local IP subnet
- ARP has no security
ARP Poisoning (Spoofing)

On-path Browser Attack
What if the middleman was on the same computer as the victim?
- Malware/Trojan does all the proxy work
- Formerly known as man-in-the-browser
Huge advantages for the attackers
- Relatively easy to proxy encrypted traffic
- Everything looks normal to the victim
The malware in your browser waits for you to log in to your bank
Replay Attacks
Replay Attacks
Useful information is transmitted over the network
- A crafty hacker will take advantage of this
Need access to the raw network data
- Network tap, ARP poisoning
- Malware on the victim computer
The gathered information may help the attacker
- Replay the data to appear as someone else
This is not an on-path attack
- The actual replay doesn’t require the original workstation
Pass the Hash



Avoid this type of replay attack with a salt or encryption
- Use a session ID with the password hash to create a unique authentication hash each time
Browser Cookie and Session IDs
Cookies
- Information stored on your computer by the browser
Used for tracking, personalization, session management
- Not executable, not generally a security risk
- Unless someone gets access to them
Could be considered be a privacy risk
- Lots of personal data in there
Session IDs are often stored in the cookie
- Maintains sessions across multiple browser sessions
Session Hijacking (Sidejacking)

Information gathering
Exploits
Modify header
Modify cookie
- Cookies Manager+ (Firefox add-on)
Prevent Session Hijacking
Encrypt end-to-end
- They can’t capture your session ID if they can’t see it
- Additional load on the web server (HTTPS)
- Firefox extension: HTTPS Everywhere, Force TLS
- Many sites are now HTTPS-only
Encrypt end-to-somewhere
- At least avoid capture over a local wireless network
- Still in-the-clear for part of the journey
- Personal VPN
Info
Firefox and Chromium based browser now by-default support strict HTTPS configuration policy, you don’t need a 3rd-party extension
Malicious Code
Exploiting a Vulnerability
An attacker can use many techniques
- Social engineering
- Default credentials
- Misconfiguration
These don’t require technical skills
- The door is already unlocked
There are still ways to get into a well-secured system
- Exploit with malicious code
- Knock the pins out of a door hinge
Malicious Code
The attackers use any opportunity
- The types of malicious code are varied
Many forms
- Executables, scripts, macro viruses, worms, Trojan horses, etc.
Protection comes from different sources
- Anti-malware
- Firewall
- Continuous updates and patches
- Secure computing habits
Malicious Code Examples
WannaCry ransomware
- Executable exploited a vulnerability in Windows SMBv1
- Arbitrary code execution
British Airways cross-site scripting
- 22 lines of malicious JavaScript code placed on checkout pages
- Information stolen from 380,000 victims
Estonian Central Health Database
- SQL injection
- Breached all healthcare information for an entire country
Application Attacks
Application Attacks
Injection Attacks
Code injection
- Adding your own information into a data stream
Enabled because of bad programming
- The application should properly handle input and output
So many injectable data types
- HTML, SQL, XML, LDAP, etc.
Buffer Overflows
Overwriting a buffer of memory
- Spills over into other memory area
Developers need to perform bounds checking
- The attackers spend a lot of time looking for openings
Not a simple exploit
- Takes time to avoid crashing things
- Take time to make it do what you want
A really useful buffer overflow is repeatable
- Which means that a system can be compromised
Replay attack
Useful information is transmitted over the network
- A crafty hacker will take advantage of this
Need to access to the raw network data
- Network tap, ARP poisoning.
- Malware on the victim
The gathered information may help the attacker
- Replay the data to appear as someone else
This is not an on-path attack
- The actual replay doesn’t require the original workstation
Privilege Escalation
Gain higher-level access to a system
- Exploit a vulnerability
- Might be a bug or design flaw
Higher-level access means more capabilities
- This commonly is the highest level access
- This is obviously a concern
These are high-priority vulnerability patches
- You want to get these holes closed very quickly
Horizontal privilege escalation
- User A can access user B resources
Mitigating Privilege Escalation
Patch quickly
Updates anti-virus/anti-malware software
- Block known vulnerabilities
Data Execution Prevention
- Only data in executable areas can run
Address space layout randomization
- Prevent a buffer overrun at a known memory address
Elevation of Privilege Vulnerability
CVE-2023-293366
- Win32k Elevation of privilege vulnerability
Win32k Kernel Driver
- Server 2008, 2008 R2, 2012, 2012 R2, 2016
- Windows 10
Attacker would gain SYSTEM privileges
Cross-site Request
Cross-site requests are common and legitimate
- You visit professormesser.com
- Your browser loads text from the professormesser.com server
- It loads a video from YouTube
- And pictures from Instagram
HTML on professormesser.com directs requests from your browser
- This is normal and expected
- Most of these are unauthenticated requests

The Client and the Server
Website pages consist of client-side code and server-side code
Client-side
- Renders the page on the screen
- HTML, JavaScript
Server-side
- Performs requests from the client
- HTML, PHP
- Transfer money from one account to another
- Post a video on YouTube
Cross-site Request Forgery
One-click attack, session riding
Takes advantage of the trust that a web application has for the user
- The website trusts your browser
- Requests are made without your consent or your knowledge
- Attacker posts a Facebook status on your account
Significant web application development oversight
- The application should have anti-forgery techniques added
- Usually a cryptographic token to prevent a forgery

Directory Transversal
Directory transversal/path transversal
- Read files from a web server that are outside the website’s file directory
- Users shouldn’t be able to browse the Windows Folder
Web server software vulnerability
- Won’t stop users from browsing past the web server root
Web application code vulnerability
- Take advantage of badly written code
Cryptographic Attacks
Cryptographic Attacks
You’ve encrypted data and sent it to another person
- Is it really secure?
- How do you know?
The attacker doesn’t have the combination (the key)
- So they break the safe (the cryptography)
Finding ways to undo the security
- There are many potential cryptographic shortcomings
- The problem is often the implementation
Birthday Attack
In a classroom of 23 students, what is the chance of two students sharing a birthday?
- About 50%
- For a class of 30, the chance is about 70%
In the digital word, this is a hash collision
- A hash collision is the same hash value for two different plaintexts
- Find a collision through brute force
The attacker will generate multiple versions of plaintext to match the hashes
- Protect yourself with a large hash output size
Collisions
Hash digests are supposed to be unique
- Different input data should not create the same hash
MD5 hash
- Message Digest Algorithm 5
- First published in April 1996
December 2008: Researchers created CA certificate that appeared legitimate when MD5 is checked
- Built other certificates that appeared to be legit and issued by RapidSSL

Downgrade Attack
Instead of using perfectly good encryption, use something that’s not so great
- Force the systems to downgrade their security
SSL stripping
- Combines an on-path attack with a downgrade attack
- Difficult to implement, but big returns for the attacker
- Attacker must sit in the middle of the conversation
- Victims browser page isn’t encrypted
- Strips the S away from HTTPS

Plaintext/Unencrypted Passwords
Some applications store passwords “in the clear”
- No encryption. You can read the stored password
- This is rare, thankfully.
Do not store passwords as plaintexts
- Anyone with access to the password file or database has every credential
What to do if your application saves passwords as plaintext
Hashing a password
Hashes represent data as a fixed-length string of text
- A message digest, or “fingerprint”
Will not have a collision (hopefully)
- Different inputs will not have the same hash
One-way trip
- Impossible to recover the original message from the digest
- A common way to store passwords
A Hash Example
SHA-256 hash
- Used in many applications

The Password File
Different across OSes and applications
- Different hash algorithms

Spraying Attack
Try to log in with an incorrect password
- Eventually you’ll be locked out
There are some common passwords
Attack an account with the top three (or more) passwords
- If they don’t work, move to the next account
- No lockouts, no alarms, no alerts
Brute-force
Try every possible password combination until the hash is matched
This might take some time
- A strong hashing algorithm slows things down

Brute-force attacks — Online
- Keep trying the login process
- Very slow
- Most accounts will lock out after a number of failed attempts
Brute-force the hash — Offline
- Obtain the list of users and hashes
- Calculate a password hash, compare it to a stored hash
- Large computational resource requirement
Indicators of Compromise
Indicators of Compromise (IOC)
An event that indicates an intrusion
- Confidence is high
- He’s calling from inside the house
Indicators
- Unusual amount of network activity
- Change to file hash values
- Irregular international traffic
- Changes to DNS data
- Uncommon login patterns
- Spikes of read requests to certain files
Account Lockout
Credentials are not working
Exceeded login attempts
- Account is automatically locked
Account was administratively disabled
- This would be a larger concern
This may be part of a larger plan
- Attacker locks account
- Calls support line to reset the password
Concurrent Session Usage
It’s challenging to be two places at one time
Multiple account logins from multiple locations
- Interactive access from a single user
- You don’t have a clone
This can be difficult to track down
- Multiple devices and desktops
- Automated processes

Blocked Content
An attacker wants to stay as long as possible
- Your system has been unlocked
- Keep the doors and windows open
There’s probably a security patch available
Blocked content
- Auto-update connections
- Links to security patches
- Third-party anti-malware sites
- Removal tools
Impossible Travel
Authentication logs can be telling
Login from Omaha, Nebraska, United States
Three minutes later, a login from Melbourne, Victoria, Australia
- Alarm bells should be ringing
This should be easy to identify
- Log analysis and automation
Resource Consumption
Every attacker’s action has an equal and opposite reaction
- Watch carefully for significant changes
File transfers use bandwidth
Firewall logs show the outgoing transfer
Often the first real notification of an issue
- The attacker may have been here for months
Resource Inaccessibility
The server is down
Network disruption
- A cover for the actual exploit
Server outage
- Result of an exploit gone wrong
Encrypted data
- A potential ransomware attack begins
Brute force attack
Out-of-Cycle Logging
Out-of-Cycle
- Occurs at an unexpected time
OS patch logs
- Occurring outside the normal patch day
- Keep that exploited system safe from other attackers!
Firewall log activity
- Timestamps of every traffic flow
- Protocols and applications used
Missing logs
Log information is evidence
- Attackers will try to cover their tracks by removing logs
Information is everywhere
- Authentication logs
- File access logs
- Firewall logs
- Proxy logs
- Server logs
The logs may be incriminating
- Missing logs are certainly suspicious
- Logs should be secured and monitored
Published/Documented
The entire attack and data exfiltration may go unnoticed
Company data may be published online
- The attackers post a portion or all data
- This may be in conjunction with ransomware
Raw data may be released without context
- Researchers will try to find the source
Segmentation and Acess Control
Segmenting the Network
Physical, logical, or virtual segmentation
- Devices, VLANs, virtual networks
Performance
- High-bandwidth applications
Security
- Users should not talk directly to database servers
- The only applications in the core are SQL and SSH
Compliance
- Mandated segmentation (PCI compliance)
- Makes change control much easier
Access Control Lists (ACLs)
Allow or disallow traffic
- Groupings of categories
- Source IP, Destination IP, port number, time of day, application, etc.
Restrict access to network devices
- Limit by IP address, or other identifier
- Prevent regular user/non-admin access
Be careful when configuring these
- You can accidentally lock yourself out
List the permissions
- Bob can read files
- Fred can access the network
- James can access network 192.168.1.0/24 using TCP ports 80, 443, 8088
Many OSes use ACLs to provide access to files
- A trustee and the access rights allowed
Application Allow List/Deny List
Any application can be dangerous
- Vulnerabilities, Trojan Horses, malware
Security policy can control app execution
- Allow list, deny/block list
Allow list
- Nothing runs unless it’s approved
- Very restrictive
Deny list
- Nothing on the “bad list” can be executed
- Anti-virus, anti-malware
Examples of Allow and Deny Lists
Decisions are made in the OS
- Often built-in to the OS management
Application hash
- Only allows applications with this unique identifier
Certificate
- Allow digitally signed apps from certain publishers
Path
- Only run applications in these folders
Network Zone
- The apps can only run from this network zone
Mitigation Techniques
Mitigation Techniques
Patching
Incredibly important
- System stability, security fixes
Monthly updates
- Incremental (and important)
Third-party updates
- Application developers, device drivers
Auto-update
- Not always the best option
Emergency out-of-band updates
Encryption
Prevent access to application data files
File level encryption
Full disk encryption (FDE)
- Encrypt everything on the drive
- BitLocker, FileVault, etc.
Application data encryption
- Managed by the app
- Stored data is protected
Monitoring
Aggregate information from devices
- Built-in sensors, separate devices
- Integrated into servers, switches, routers, firewalls, etc.
Sensors
- Intrusion prevention systems, firewall logs, authentication logs, web server access logs, database transaction logs, email logs
Collectors
- Proprietary consoles (IPS, Firewall), SIEM consoles, syslog servers
- Many SIEMs include a correlation engine to compare diverse sensor data
Least Privilege
Rights and permissions should be set to the base minimum
- You only get exactly what’s needed to complete your objective
All user accounts must be limited
- Applications should run with minimal privileges
Don’t allow users to run with administrative privileges
- Limit the scope of malicious behavior
Configuring Enforcement
Perform a posture assessment
- Each time a device connects
Extensive check
- OS patch version
- EDR (Endpoint Detection and Response) version
- Status of firewall and EDR
- Certificate status
Systems out of compliance are quarantined
- Private VLAN with limited access
- Recheck after making corrections
Decommissioning
Should be a formal policy
- Don’t throw your data into the trash
- Someone will find this later
Mostly associated with storage devices
- Hard drive
- SSD
- USB drives
Many options for physical devices
- Recycle the device for use in another system
- Destroy the device
Hardening Techniques
System Hardening
Many and varied
- Windows, Linux, iOS, Android, etc.
Updates
- OS updates/service packs, security patches
User accounts
- Minimum password lengths and complexity
- Account Limitations
Network access and security
Monitor and secure
Encryption
Prevent access to application data files
- File system encryption
- Windows Encrypting Files System (EFS)
Full disk encryption (FDE)
- Encrypt everything on the drive
- Windows BitLocker, macOS FileVault, etc.
Encrypt all network communication
- Virtual Private Network (VPN)
- Application encryption
The Endpoint
The user’s access
Stop the attackers
- Inbound attacks
- Outbound attacks
Many platforms
Protection is multi-faceted
Endpoint Detection and Response (EDR)
A different method of threat detection
- Scale to meet the increasing number of threats
Detect a threat
- Signatures aren’t the only detection tool
- Behavior analysis, machine learning, process monitoring
- Lightweight agent on the endpoint
Investigate the threat
Respond to the threat
- Isolate the system, quarantine the threat, rollback to a previous config
- API driven, no user or technician intervention required
Host-based Firewall
Software based firewall
- Personal firewall, runs on every endpoint
Allow or disallow incoming or outgoing application traffic
- Control by application process
- View all data
Identify and block unknown processes
- Stop malware before it can start
Finding Intrusions
Host based Intrusion Prevention System (IPS)
- Recognize and block known attacks
- Secure OS and application configs, validate incoming service requests
- Often built into endpoint protection software
HIPS identification
- Signature, heuristics, behavioral
- Buffer overflows, registry updates, writing files to the Windows folder
- Access to non-encrypted data
Open Ports and Services
Every open port is a possible entry point
- Close everything except required ports
Control access with a firewall
Unused or unknown services
- Installed with the OS or from other applications
Applications with broad port ranges
- Open port
0 through 65,535
Use nmap or similar port scanner to verify
- Ongoing monitoring is important
Default Password Changes
Every network device has a management interface
- Critical systems, other device
Many applications also have management or maintenance interfaces
- These can contain sensitive data
Change default settings
Add additional security
- Require additional logon
- Add 3rd-party authentication
Removal of Unnecessary Software
All software contains bugs
- Some of those bugs are security vulnerabilities
Every application seems to have a completely different patching process
- Can be challenging to manage ongoing updates
Remove all unused software
- Reduce your risk
- An easy fix
Architecture Models
Warning
The soaring Cloud Computing costs, unexpected high bills, and multitude of hidden charges, make Cloud a lot less viable option than on-prem options. Depending on the organization’s needs and size, On-premise Cloud Computing will be a cheaper alternative.
The Cloud Tipping Point | Lawrence Systems
Leaving the Cloud | The Rework Podcast
Why you’re addicted to cloud computing | Fireship
Cloud Responsibility Matrix
IaaS, PaaS, SaaS, etc.
- Who is responsible for security?
Security should be well documented
- Most cloud providers provide a matrix of responsibilities
- Everyone knows up front
These responsibilities can vary
- Different cloud providers
- Contractual agreements

Hybrid Considerations
Hybrid cloud
- More than one public or private cloud
- This adds additional complexity
Network protection mismatches
- Authentication across platforms
- Firewall configurations
- Server settings
Different security monitoring
- Logs are diverse and cloud-specific
Data leakage
- Data is shared across public Internet
Third-Party Vendors in the Cloud
You, the cloud provider, and the third parties
- Infrastructure technologies
- Cloud-based appliances
Ongoing vendor risk assessments
- Part of an overall vendor risk management policy
Include third-party impact for incident response
- Everyone is part of the process
Constant monitoring
- Watch for changes and unusual activity
Infrastructure as Code
Describe an infrastructure
- Define servers, network, and applications as code
Modify the infrastructure and create versions
- The same way you version application code
Use the description (code) to build other application instances
- Build it the same way every time based on the code
An important concept for cloud computing
- Build a perfect version every time
Serverless Architecture
Function as a Service (FaaS)
- Applications are separated into individual, autonomous functions
- Remove the OS from the equation
Developer still creates the server-side logic
- Runs in a stateless compute container
May be event triggered and ephemeral
- May only run for one event
Managed by a third-party
- All OS security concerns are at the third party
Microservices and APIs
Monolithic applications
- One big application that does everything
Application contains all decision-making process
- User interface
- Business logic
- Data input and output
Code challenges
- Large codebase
- Change control challenges

APIs
- Application Programming Interface
API is the “glue” for the microservices
- Work together to act as the application
Scalable
- Scale just the microservices you need
Resilient
Security and compliance

Network Infrastructure Concepts
Physical Isolation
Devices are physically separate
- Air gap between Switch A and Switch B
Must be connected to provide communication
- Direct connect, or another switch or router
Web servers in one rack
- Database servers on another
Customer A on one switch, customer B on another
- No opportunity for mixing data
Physical Segmentation
Separate devices
- Multiple units, separate infrastructure

Logical Segmentation with VLANs
Virtual Local Area Networks (VLANs)
- Separated logically instead of physically
- Cannot communicate between VLANs without a Layer 3 device/router

SDN (Software Defined Networking)
Networking devices have different functional planes of operation
- Data, control, and management planes
Split the functions into separate logical units
- Extend the functionality and management of a single device
- Perfectly built for the cloud
Infrastructure layer/Data plane
- Process the network frames and packets
- Forwarding, trunking, encrypting, NAT
Control layer/Control plane
- Manages the actions of the data plane
- Routing tables, session tables, NAT tables
- Dynamic routing protocol updates
Application layer/Management plane
- Configure and manage the device
- SSH, browser, API
Extend the Physical Architecture

SDN Data Flows

SDN Security

Other Infrastructure Concepts
Attacks can happen anywhere
Two categories for IT security
- The on-premises data is more secure!
- The cloud-based data is more secure!
Cloud-based security is centralized and costs less
- No dedicated hardware, no data center to secure
- A third party handles everything
On-premises puts the security burden on the client
- Data center security and infrastructure costs
Attackers want your data
- They don’t care where it is
On-premises Security
Customize your security posture
- Full control when everything is in-house
On-site IT team can manage security better
- The local team can ensure everything is secure
- A local team can be expensive and difficult to staff
Local team maintains uptime and availability
- System checks can occur at any time
- No phone call for support
Security changes can take time
- New equipment, configurations, additional costs
Centralized vs. Decentralized
Most organizations are physically decentralized
- Many locations, cloud providers, OSes, etc.
Difficult to manage and protect so many diverse systems
- Centralize the security management
A centralized approach
- Correlated alerts
- Consolidated log file analysis
- Comprehensive system status and maintenance/patching
It’s not perfect
- Single point of failure, potential performance issues
Virtualization
Virtualization
- Run different OSes on the same hardware
Each application instance has its own OS
- Adds overhead and complexity
- Virtualization is relatively expensive

Application Containerization
Container
- Contains everything you need to run an application
- Code and dependencies
- A standardized unit of software
An isolated process in a sandbox
- Self-contained
- Apps can’t interact with each other
Container image
- A standard for portability
- Lightweight, uses the host kernel
- Secure separation between applications

Virtualized vs. Containerized

IoT (Internet of Things)
Sensors
- Heating and cooling, lighting
Smart devices
- Home automation, video doorbells
Wearable technology
Facility automation
- Temperature, air quality, lighting
Weak defaults
- IOT manufacturers are not security professionals
SCADA/ICS
Supervisory Control and Data Acquisition System
- Large-scale, multi-site Industrial Control Systems (ICS)
PC manages equipment
- Power generation, refining, manufacturing equipment
- Facilities, industrial, energy, logistics
Distributed control systems
- Real-time information
- System control
Requires extensive segmentation
- No access from the outside
RTOS (Real-Time Operating System)
An OS with a deterministic processing schedule
- No time to wait for other processes
- Industrial equipment, automobiles
- Military environments
Extremely sensitive to security issues
- Non-trivial systems
- Need to always be available
- Difficult to know what type of security is in place
Embedded Systems
Hardware and software designed for a specific function
- Or to create as part of a larger system
Is built with only this task in mind
- Can be optimized for size and/or cost
Common examples
- Traffic light controllers
- Digital watches
- Medical imaging systems
High Availability
Redundancy doesn’t mean always available
- May need to be powered on manually
HA (High availability)
- Always on, always available
Many include many components working together
- Active/active can provide scalability advantages
Higher availability almost always means higher costs
- There’s always another contingency you could add
- Upgraded power, high-quality server components, etc.
Infrastructure Consideration
Availability
System uptime
- Access data, complete transactions
- A foundation of IT security
A balancing act with security
- Available, but only to the right people
WE spend a lot of time and money on availability
- Monitoring, redundant systems
An important metric
- We are often evaluated on total available time
Resilience
Eventually, something will happen
- Can you maintain availability?
- Can you recover? How quickly?
Based on many variables
- The root cause
- Replacement hardware installations
- Software patch availability
- Redundant systems
Commonly referenced as MTTR
Cost
How much money is required?
- Everything ultimately comes down to cost
Initial installation
- Very different across platforms
Ongoing maintenance
Replacement or repair costs
- You might need more than one
Tax implications
- Operating or capital expense
Responsiveness
Request information
- Get a response
- How quickly did that happen?
Especially important for interactive applications
- Humans are sensitive to delays
Speed is an important metric
- All parts of the application contribute
- There’s always the weakest link
Scalability
How quickly and easily can we increase or decrease capacity?
- This might happen many times a day
- Elasticity
There’s always a resource challenge
- What’s preventing scalability?
Needs to include security monitoring
- Increases and decreases as the system scales
Ease of Deployment
An application has many moving parts
- Web server, database, caching server, firewall, etc.
This might be an involved process
- Hardware resources, cloud budgets, change control
This might be very simple
Important to consider during the product engineering phase
- One missed detail can cause deployment issues
Risk Transference
Many methods to minimize risk
- Transfer the risk to a third party
Cybersecurity insurance
- Attacks and downtime can be covered
- Popular with the rise in ransomware
Recover internal losses
- Outages and business downtime
Protect against legal issues from customers
- Limit the costs associated with legal proceedings
Ease of Recover
Something will eventually go wrong
- Time is money
- How easily can you recover?
Malware infection
- Reload OS from original media — 1 hour
- Reload from corporate image — 10 minutes
Another important design criteria
- This may be critical to the final product
Patch Availability
Software isn’t usually static
- Bug fixes, security updates, etc.
This is often the first task after installation
- Make sure you’re running the latest version
Most companies have regular updates
- Microsoft’s monthly patch schedule
Some companies rarely patch
- This might be a significant concern
Inability to Patch
What if patching wasn’t an option?
- This often happens than you might think
Embedded systems
- HVAC controls
- Time clocks
Not designed for end-user updates
- This is a bit short-sighted
- Especially these days
May need additional security controls
- A firewall for your time clock
Power
A foundational element
- This can require extensive engineering
Overall power requirements
- Data center vs. office building
Primary power
Backup services
- UPS (Uninterruptible Power Supply)
- Generators
Compute
An application’s heavy lifting
- More than just a single Compute
The compute engine
- More options available in the cloud
May be limited to a single processor
Use multiple CPUs across multiple clouds
- Addtional complexity
- Enhanced scalability
Applying Security Principles
Secure Infrastructures
Device Placement
Every network is different
- There are often similarities
Firewalls
- Separate trusted from untrusted
- Provide additional security checks
Other services may require their own security technologies
- Honeypots, jump server, load balancers, sensors
Security Zone
Zone-based security technologies
- More flexible (and secure) than IP address ranges
Each area of the network is associated with a zone
- Trusted, untrusted
- Internal, external
- Inside, Internet, Servers, Databases, Screened
This simplifies security policies
- Trusted to Untrusted
- Untrusted to Screened
- Untrusted to Trusted


Attack Surface
How many ways into your home?
- Doors, windows, basements
Everything can be a vulnerability
- Application code
- Open ports
- Automated process
- Human error
Minimize the surface
- Audit the code
- Block ports on the firewall
- Monitor network traffic in real-time
Connectivity
Everything contributes to security
- Including the network connection
Secure network cabling
- Protect the physical drops
Application-level encryption
- The hard work has already been done
Network-level encryption
- IPsec tunnels, VPN connections
Intrusion Prevention
Intrusion Prevention System (IPS)
Intrusion Prevention System
Intrusions
- Exploits against OSes, applications, etc.
- Buffer overflows, cross-site scripting, other vulnerabilities
Detection vs. Prevention
- Intrusion Detection System (IDS) — Alarm or alert
- Prevention — Stop it before it gets into the network
Failure Modes
We hope for 100% uptime
- This obviously isn’t realistic
- Eventually, something will break
Fail-open
- When a system fails, data continues to flow
Fail-closed
- When a system fails, data does not flow
Device Connections
Active monitoring
- System is connected inline
- Data can be blocked in real-time as it passes by
- Intrusion prevention is commonly active

Passive monitoring
- A copy of the network traffic is examined using a tap or port monitor
- Data cannot be blocked in real-time
- Intrusion detection is commonly passive

Active Monitoring
Malicious traffic is immediately identified
- Dropped at the IPS
- Doesn’t proceed through the network
Passive Monitoring
Examine a copy of the traffic
- Port mirror (SPAN), network tap
No way to block (prevent) traffic
- Common with Intrusion Detection Systems
Network Appliances
Jump Server
Access secure network zones
- Provides an access mechanism to a protected network
Highly-secured device
SSH/Tunnel/VPN to the jump server
- RDP, SSH, or jump from there
A significant security concern
- Compromise of the jump server is a significant breach

Proxies
- Sits between the users and the external network
- Receives the user requests and sends the request on their behalf (the proxy)
- Useful for caching information, access control, URL filtering, content scanning
- Applications may need to know how to use the proxy (explicit)
- Some proxies are invisible (transparent)
- Users don’t need to configure anything for the proxy to work on their end

Application Proxies
One of the simplest “proxies” is NAT
Most proxies in use are application proxies
- The proxy understands the way the application works
A proxy may only know one application
Many proxies are multipurpose proxies
Forward Proxy
An “internal proxy”
- Commonly used to protect and control user access to the Internet

Reverse Proxy
Inbound traffic from the Internet to your internal service

Open Proxy
A third party, uncontrolled proxy
- Can be a significant security concern
- Often used to circumvent existing security controls

Balancing the Load
Distribute the load
- Multiple servers
- Invisible to the end-user
Large-scale implementations
- Web server farms, database farms
Fault tolerance
- Server outages have no effect
- Very fast convergence
Active/active Load Balancing
Configurable load
TCP offload
SSL offload
Caching
Prioritization
Content Switching
- Application-centric balancing

Active/Passive Load Balancing
Some servers are active
If an active server fails, the passive server takes its place


Sensors and Collectors
Aggregate information from network devices
- Built-in sensors, separate devices
- Integrated into switches, routers, servers, firewalls, etc.
Sensors
- Intrusion prevention systems, firewall logs, authentication logs, web server access logs, database transaction logs, email logs
Collectors
- Proprietary consoles (IPS, firewall), SIEM consoles, syslog serves
- Many SIEMs include a correlation engine to compare diverse sensor data
Port Security
We have created many authentication methods through the years
- A network administrator has many choices
Use a username and password
- Other factors can be included
Commonly used on wireless networks
- Also works on wired networks
EAP
Extensible Authentication Protocol (EAP)
- An authentication framework
Many ways to authenticate based on RFC standards
- Manufacturers can build their own EAP methods
EAP integrates with 802.1X
- Prevents access to the network until the authentication succeeds
IEEE 802.1X
IEEE 802.1X
- Port-based Network Access Control (NAC)
- You don’t get access to the network until you authenticate
EAP integrates with 802.1X
- Extensible Authentication Protocol
- 802.1X prevents access to the network until the authentication succeeds
Used in conjunction with an authentication database
- RADIUS, LDAP, TACACS+, Kerberos, etc.
IEEE 802.1X and EAP
- Supplicant — The client
- Authenticator — The device that provides access
- Authentication server — Validates the client credentials
Firewall Types
The Universal Security Control
Standard issue
- Home, office, and in your OS
Control the flow of network traffic
- Everything passes through the firewall
Corporate control of outbound and inbound data
Control of inappropriate content
- Not safe for work, parental controls
Protection against evil
Network-based Firewalls
Filter traffic by port number or application
- OSI layer 4 vs. OSI layer 7
- Traditional vs. NGFW firewalls
Encrypt traffic
Most firewalls can be a layer 3 devices (routers)
- Often sits on the ingresses/egress of the network
- Network Address Translation (NAT) functionality
- Authenticate dynamic routing communication

UTM/ All-in-one Security Appliance
- Unified Threat Management (UTM)/Web Security gateway
- URL filter/Content inspection
- Malware inspection
- Spam filter
- CSU (Channel Service Unit)/DSU (Data Service Unit)
- Router, Switch
- Firewall
- IDS/IPS
- Bandwidth shaper
- VPN endpoint
[! Warning]
Using all features at once, will slow down the network. So enable those only you need.
Next-generation Firewall (NGFW)
The OSI Application Layer
Can be called different names
- Application layer gateway
- Stateful multilayer inspection
- Deep packet inspection
Requires some advanced decodes
- Every packet must be analyzed and categorized before a security decision is determined
Network-based Firewalls
- Control traffic flows based on the application
- Microsoft SQL server, Twitter/X, YouTube
Intrusion Prevention Systems
- Identify the application
- Apply application-specific vulnerability signatures to the traffic
Content filtering
- URL filters
- Control website traffic by category
Web Application Firewall (WAF)
Not like a “normal” firewall
- Applies rules to HTTP/HTTPS conversations
Allow or deny based on expected input
- Unexpected input is a common method of exploiting an application
SQL injection
- Add your own commands to an application’s SQL query
A major focus of Payment Card Industry Data Security Standard (PCI DSS)

Secure Communication
VPN
Virtual Private Networks
- Encrypted (private) data transversing a public network
Concentrator
- Encryption/decryption access device
- Often integrated into a firewall
Many deployment options
- Specialized cryptographic hardware
- Software-based options available
Used with client software
- Sometimes built into the OS
Encrypted Tunnel

Keep data private across the public internet
Encrypt your data
- Add new headers and trailers
Decrypt on the other side
- Original data is delivered

SSL/TLS VPN (Secure Sockets Layer VPN)
Uses common SSL/TLS protocol (TCP/443)
- (Almost) No firewall issues
No big VPN clients
- Usually remote access communication
Authenticate users
- No requirement for digital certificates or shared passwords (like IPSec)
Can be run from a browser or from a (usually light) VPN client
On-demand access from a remote device
- Software connects to a VPN concentrator
Some software can be configured as always-on

Site-to-site IPsec VPN
Always-on
Firewalls often act as VPN concentrators
- Probably already have firewalls in place

SD-WAN
Software Defined Networking in a Wide Area Network
- A WAN built for the cloud
The data center used to be in one place
- The cloud has changed everything
Cloud-based applications communicate directly to the cloud
- No need to hop through a central point
Old Datacenters Design:

Cloud First Design:

SW-WAN:

Secure Access Service Edge (SASE)
Update secure access for cloud services
- Securely connect from different locations
Secure Access Service Edge (SASE)
Security technologies are in the cloud
- Located close to existing cloud services
SASE clients on all device
- Streamlined and automatic

Selection of Effective Controls
Many security options
- Selecting the right choice can be challenging
VPN
- SSL/TLS VPN for user access
- IPsec tunnels for site-to-site access
SD-WAN
- Manage the network connectivity to the cloud
- Does not adequately address security concerns
SASE
- A complete network and security solution
- Requires planning and implementation
Protecting Data
Data Types and Classification
Data Types
Regulated
- Managed by a third-party
- Government laws and statutes
Trade secret
- An organization’s secret formulas
- Often unique to an organization
Intellectual property
- May be publicly visible
- Copyright and trademark restrictions
Legal information
- Court records and documents, judge and attorney information, etc.
- PII and other sensitive details
- Usually stored in many systems
Financial information
- Internal company financial details
- Customer finances
- Payment records
- Credit card data, bank records, etc.
Human-readable
- Humans can understand the data
- Very clear and obvious
Non-human readable
- Not easily understood by humans
- Encoded data
- Barcodes
- Images
Some formats are a hybrid
Classifying Sensitive Data
Not all data has the same level of categorization
- License tag numbers vs. health records
Different levels require different security and handling
- Additional permissions
- A different process to view
- Restricted network access
Data Classifications
Proprietary
- Data that is the property of an organization
- May also include trade secrets
- Often data unique to an organization
PII — Personally Identifiable Information
- Data that can be used to identify an individual
- Name, data of birth, mother’s maiden name, biometric information
PHI — Protected Health Information
- Health information associated with an individual
- Health status, health care records, payments for health care, and much more
Sensitive
- Intellectual property, PII, PHI
Confidential
- Very sensitive, must be approved to view
Public/Unclassified
- No restrictions on viewing the data
Private/Classified/Restricted
- Restricted access, may require an NDA
Critical
- Data should always be available
States of Data
Data at rest
The data is on a storage device
- Hard drive, SSD, flash drive, etc.
Encrypt the data
- Whole disk encryption
- Database encryption
- File or folder-level encryption
Apply permissions
- Access control lists
- Only authorized users can access the data
Data in transit
Data transmitted over the network
- Also called data in-motion
Not much protection as it travels
- Many switches, routers, devices
Network-based protection
Provide transport encryption
- TLS (Transport Layer Security)
- IPsec (Internet Protocol Security)
Data in use
Data is actively processing in memory
- System RAM, CPU registers and cache
The Data is almost always decrypted
- Otherwise, you couldn’t do anything with it
The attackers can pick the decrypted information out of RAM
Target Corp. breach — November 2013
- 110 million credit cards
- Data in-transit encryption and data at-rest encryption
- Attackers picked the credit card numbers out of the point-of-sale RAM
Data Sovereignty
Data sovereignty
- Data that resides in a country is subject to the laws of that country
- Legal monitoring, court orders, etc.
Laws may prohibit where data is stored
- GDPR (General Data Protection Regulation)
- Data collected on EU citizens must be stored in the EU
- A complex mesh of technology and legalities
Where is your data stored?
- Your compliance laws may prohibit moving data out of the country
Geolocation
Location details
- Tracks within a localized area
Many ways to determine location
- 802.11, mobile providers, GPS
Can be used to manage data access
- Prevent access from other countries
Limit administrative tasks unless secure area is used
- Permit enhanced access when inside the building
Protecting Data
Geographic Restrictions
Network location
- Identify based on IP subnet
- Can be difficult with mobile devices
Geolocation — determine a user’s location
- GPS — mobile devices, very accurate
- 802.11 wireless, less accurate
- IP address, not very accurate
Geo-fencing
- Automatically allow or restrict access when the user is in a particular location
- Don’t allow this app to run unless you’re near the office
A primary job task
- An organization is out of business without data
Data is everywhere
- ON a storage drive, on the network, in a CPU
Protecting the data
- Encryption, security policies
Data permissions
- Not everyone has the same access
Encryption
Encode information into unreadable data
- Original information is plaintext, encrypted form is ciphertext
This is a two-way street
- Convert between one and the other
- IF you have the proper key
Confusion
- The encrypted data is drastically different from the plaintext

Hashing
Represent data as a short string of text
- A message digest, a fingerprint
One-way trip
- Impossible to recover the original message from the digest
- Used to store passwords/confidentiality
Verify a downloaded document is the same as the original
Can be a digital signature
- Authentication, non-repudiation, and integrity
Will not have a collision (hopefully)
- Different messages will not have the same hash

Obfuscation
Obfuscate
- Make something normally understandable very difficult to understand
Take perfectly readable code and turn it into nonsense
- The developer keeps the readable code and gives you the chicken scratch
- Both sets of code perform exactly the same way
Helps prevent the search for security holes
- Makes it more difficult to figure out what’s happening
- But not impossible

Masking
A type of obfuscation
Protects PII
May only be hidden from view
- The data may still be intact in storage
- Control the view based on permissions
Many techniques
- Substituting, shuffling, encrypting, masking out, etc.

Tokenization
Replace sensitive data with a non-sensitive placeholder
- SSN 266-12-1112 is now 691-618539
Common with credit card processing
- Use a temporary token during payment
- An attacker capturing the card numbers can’t use them later
This isn’t encryption or hashing
- The original data and token aren’t mathematically related
- No encryption overhead

Segmentation
Many organizations use a single data source
One breach puts all the data at risk
- You’re making it easy for the attacker
Separate the data
- Store it in different locations
Sensitive data should have stronger security
- The most sensitive data should be the most secure
Permission Restrictions
Control access to an account
- It’s more than jut username and password
- Determine what policies are best for an organization
The authentication process
- Password policies
- Authentication factor policies
- Other considerations
Permissions after login
- Another line of defense
- Prevent unauthorized access
Resiliency and Recovery
Resiliency
High Availability
Redundancy doesn’t mean always available
- May need to be powered on manually
HA (high availability)
- always on, always available
May include many components working together
- Active can provide scalability advantages
Higher availability almost always means higher costs
- There’s always another contingency you could add
- Upgraded power, high-quality server components, etc.
Server Clustering
Combine two or more servers
- Appears and operates as a single large server
- Users only see one device
Easily increase capacity and availability
- Add more servers to the cluster
Usually configured in the OS
- All devices in the cluster commonly use the same OS

Load Balancing
Load is distributed across multiple servers
- The servers are often unaware of each other
Distribute the load across multiple devices
The load balancer adds or removes devices
- Add a server to increase capacity
- Remove any servers not responding

Site resiliency
Recovery site is prepped
A disaster is called
- Business processes failover to the alternate processing site
Problem is addressed
- This can take hours, weeks, or longer
Revert back to the primary location
- The process must be documented for both directions
Hot Site
An exact replica
Stocked with hardware
- Constantly updated
- You buy two of everything
Applications and software are constantly updated
Flip a switch and everything moves
- This may be quite a few switches
Cold Site
No hardware
No data
No people
Warm Site
Somewhere between cold and hot
Big room with rack space
Geographic Dispersion
These sites should be physically different from the organization’s primary location
- Many disruptions can affect a large area
- Hurricane, tornado, floods, etc.
Can be a logistical challenge
- Transporting equipment
- Getting employee’s on-site
- Getting back to the main office
Every OS contains potential security issues
Many security vulnerabilities are specific to a single OS
- Windows vulnerabilities don’t commonly affect Linux or macOS
- And vice versa
Use many platforms
- Different applications, clients, and OSes
- Spread the risk around
Multi-Cloud Systems
There are many cloud providers
- Amazon Web Services, Microsoft Azure, Google Cloud, etc.
Plan for cloud outages
- These can sometimes happen
Data is both geographically dispersed and cloud service dispersed
- A breach with one provider would not affect the others
- Plan for every contingency
Continuity of Operations Planning (COOP)
Not everything goes according to plan
- Disaster can cause a disruption to the norm
We rely on our computer systems
There need to be an alternative
- Manual transactions
- Paper receipts
- Phone calls for transactions approvals
These must be documented and tested before a problem occurs
Capacity Planning
Match supply to the demand
- This isn’t always an obvious equation
Too much demand
- Application slowdowns and outages
Too much supply
Requires a balanced approach
- Add the right amount of people
- Apply appropriate technology
- Build the best infrastructure
People
Some services require human intervention
- Call center support lines
- Technology services
Too few employees
- Recruit new staff
- It may be time-consuming to add more staff
Too many employees
- Redeploy to other parts of the organization
- Downsize
Technology
Pick a technology that can scale
- Not all services can easily grow and shrink
Web services
- Distribute the load across multiple web services
Database services
- Cluster multiple SQL servers
- Split the database to increase capacity
Cloud services
- Services on demand
- Seemingly unlimited resources (if you pay the money)
Infrastructures
The underlying framework
- Application servers, network services, etc.
- CPU, network, storage
Physical devices
- Purchase, configure, and install
Cloud-based devices
- Easier to deploy
- Useful for unexpected capacity changes
Recovery Testing
Test yourselves before an actual event
- Scheduled updates sessions (annual, semi-annual, etc.)
Use well-defined rules of engagement
- Don’t touch the production systems
Very specific scenario
- Limited time to run the event
Evaluate response
Tabletop Exercises
Performing a full-scale disaster drill can be costly
Many of the logistics can be determined through analysis
- You don’t physically have to go through a disaster or drill
Get key players together for a tabletop exercise
- Talk through a simulated disaster
Fail Over
A failure is often inevitable
We may be able to keep running
Create a redundant infrastructure
- Multiple routers, firewalls, switches, etc.
If one stops working, fail over to the operational unit
- Many infrastructure devices and services can do this automatically

Simulation
Test with a simulated event
- Phishing attack, password requests, data breaches
Going phishing
- Create a phishing email attack
- Send to your actual user community
- See who bites
Test internal security
- Did the phishing get past the filter
Test the users
- Who clicked?
- Additional training may be required
Parallel Processing
Split a process through multiple (parallel) CPUs
- A single computer with multiple CPU cores or multiple physical CPUs
- Multiple computers
Improved performance
- Split complex transactions across multiple processors
Improved recover
- Quickly identify a faulty system
- Take the faulty device out of the list of available processors
- Continue operating with the remaining processors
Backups
Incredibly important
- Recover important and valuable data
- Plan for disaster
Many implementations
- Total amount of data
- Type of backup
- Backup media
- Storage location
- Backup and recovery software
- Day of the week
Onsite vs. Offsite Backups
Onsite backups
- No Internet link required
- Data is immediately available
- Generally less expensive than offsite
Offsite backups
- Transfer data over Internet or WAN link
- Data is available after a disaster
- Restoration can be performed from anywhere
Organizations often use both
- More copies of the data
- More options when restoring
Frequency
How often to back up
This may be different between systems
- Some systems may not change much each day
May have multiple backups sets
- Daily, weekly, and monthly
This requires significant planning
- Multiple backup sets across different days
- Lots of media to manage
Encryption
A history of data is on backup media
- Some of this media may be offsite
This makes it very easy for an attacker
- All the data is in one place
Protect backup data using encryption
- Everything on the backup media is unreadable
- The recovery key is required to restore the data
Especially useful for cloud backups and storage
- Prevent anyone from eavesdropping
Snapshots
Became popular on virtual machines
- Very useful in cloud environments
Take a snapshot
- An instant backup of an entire system
- Save the current configuration and data
Take another snapshot after 24 hours
- Contains only the changes between snapshots
Take a snapshot every day
- Revert to any snapshot
- Very fast recovery

Recovery Testing
It’s not enough to perform the backup
- You have to be able to restore
Disaster recovery testing
- Simulate a disaster situation
- Restore from backup
Confirm the restoration
- Test the restored application and data
Perform periodic audits
- Always have a good backup
- Weekly, monthly, quarterly checks
Replication
An ongoing, almost real-time backup
- Keep data synchronized in multiple locations
Data is available
- There’s always a copy somewhere
Data can be stored locally to all users
- Replicate data to all remote sites
Data is recoverable
- Disasters can happen at any time
Journaling
Power goes out while writing data to storage
- The stored data is probably corrupted
Recovery could be complicated
- Remove corrupted files, restore from backup
Before writing to storage, make a journal entry
- After the journal is written, write the data to storage
After the data is written to storage, update the journal
- Clear the entry and get ready for the next
Power Resiliency
Power is the foundation of our technology
- It’s important to properly engineer and plan for outages
We usually don’t make our own power
- Power is likely provided by third-parties
- We can’t control power availability
There are ways to mitigate power issues
- Short power outages
- Long-term power issues
UPS
Uninterruptible Power Supply
- Short-term backup power
- Blackouts, brownouts, surges
UPS types
- Offline/Standby UPS
- Line-interactive UPS
- On-line/Double-conversion UPS
Features
- Auto shutdown, battery capacity, outlets, phone line suppression
Generators
Long-term power backup
Power an entire building
- Some power outlets may be marked as generator-powered
It may take a few minutes to get the generator up to speed
- Use a battery UPS while the generator is starting
Security Techniques
Secure Baselines
The security of an application environment should be well-defined
- All application instances must follow this baseline
- Firewall settings, patch levels, OS file versions
- May require constant updates
Integrity measurements check for the secure baseline
- These should be performed often
- Check against well-documented baselines
- Failure requires an immediate correction
Establish Baselines
Create a series of baselines
- Foundational security policies
Security baselines are often available from the manufacturer
- Application developer
- OS manufacturer
- Appliance manufacturer
Many OSes have extensive options
- There are over 3000 group policy settings in Windows 10
- Only some of those are associated with security
Tip
Microsoft Security Baselines Guide
Deploy Baselines
We now have established detailed security baselines
- How do we put those baselines into action?
Deploy the baselines
- Usually managed through a centrally administered console
May require multiple deployment mechanisms
- Active Directory group policy, MDM, etc.
Automation is the key
- Deploy to hundreds or thousands of devices
Maintain Baselines
Many of these are best practices
Other baselines may require ongoing updates
- A new vulnerability is discovered
- An updated application has been deployed
- A new OS is installed
Test and measure to avoid conflicts
- Some baselines may contradict others
- Enterprise environments are complex
Hardening Targets
No system is secure with the default configurations
- You need some guidelines to keep everything safe
Hardening guides are specific to the software or platform
- Get feedback from the manufacturer or Internet interest group
- They will have the best details
Other general-purpose guides are available online
Mobile Devices
Always-connected mobile technologies
- Phones, tablets, etc.
- Hardening checklists are available from manufacturers
Updates are critical
- Bug fixes and security patches
- Prevent any known vulnerabilities
Segmentation can protect data
- Company and user data are separated
Control with an MDD
Workstations
User desktops and laptops
- Windows, macOS, Linux, etc.
Constant monitoring and updates
- OSes, applications, firmware, etc.
Automate the monthly patches
- There’s likely an existing process
Connect to a policy management system
- Active Directory group policy
Remove unnecessary software
Network Infrastructure Devices
Switches, routers, etc.
- You never see them, but they’re always there
Purpose-built devices
- Embedded OS, limited OS access
Configure authentication
Check with the manufacturer
- Security updates
- Not usually updated frequently
- Updates are usually important
Cloud Infrastructure
Secure the cloud management workstation
Least privilege
- All services, network settings, application rights and permissions
Configure Endpoint Detection and Response (EDR)
- All devices accessing the cloud should be secure
Always have backups
Servers
Many and varied
Updates
- OS updates/service packs, security patches
User accounts
- Minimum password lengths and complexity
- Account limitations
Network access and security
Monitor and secure
SCADA/ICS
Supervisory Control and Data Acquisition System
- Large-scale, multi-site Industrial Control Systems (ICS)
PC manages equipment
- Power generation, refining, manufacturing equipment
- Facilities, industrial, energy, logistics
Distributed control systems
- Real-time information
- System control
Requires extensive segmentation
- No access from the outside
Embedded Systems
Hardware and software designed for a specific function
- Or to operate as part of a larger system
Can be difficult to upgrade
- Watches and televisions are relatively easy
- Other devices may not be easily modified
Correct vulnerabilities
- Security patches remove potential threats
Segment and firewall
- Prevent access from unauthorized users
RTOS (Real-Time Operating System)
An OS with a deterministic processing schedule
- No time to wait for other processes
- Industrial equipment, automobiles, military environments
Isolate the system
- Prevent access from other areas
Run with the minimum services
- Prevent the potential for exploit
Use secure communication
- Protect with a host-based firewall
IoT Devices
Heating and cooling, lighting, home automation, wearable technology, etc.
Weak defaults
- IoT manufacturers are not security professionals
- Change those passwords
Deploy updates quickly
- Can be a significant security concern
Segmentation
- Put IoT devices on their own VLAN
Securing Wireless and Mobile
Site Surveys
Determine existing wireless landscape
- Sample the existing wireless spectrum
Identify existing access points
- You may not control all of them
Work around existing frequencies
- Layout and plan for interference
Plan for ongoing site surveys
- Things will certainly change
Heat maps
- Identify wireless signal strengths
- Signal coverage
- Potential interference
- Built-in tools
- 3rd-party tools
- Spectrum analyzer

Mobile Device Management (MDM)
Manage company-owned and user-owned mobile devices
- BYOD — Bring Your Own Device
Centralized management of the mobile devices
- Specialized functionality
Set policies on apps, data, camera, etc.
- Control the remote device
- The entire device or a “portion”
Manage access control
- Force screen locks and PINs on these single user devices
BYOD
Bring Your Own Device OR Bring Your Own Technology
Employee owns the device
- Need to meet the company’s requirements
Difficult to secure
- It’s both a home device and a work device
- How is data protected?
- What happens to the data when a device is sold or traded in?
COPE
Corporate owned, personally enabled
- Company buys the device
- Used as both a corporate device and a personal device
Organization keeps full control of the device
- Similar to company-owned laptops and desktops
Information is protected using corporate policies
- Information can be deleted at any time
CYOD — Choose Your Own Device
- Similar to COPE, but with the user’s choice of device
Cellular Networks
Mobile devices
Separate land into “cells”
- Antenna coverages a cell with certain frequencies
Security concerns
- Traffic monitoring
- Location tracking
- Worldwide access to a mobile device
Wi-Fi
Local network access
Same security concerns as other Wi-Fi devices
Data capture
On-path attack
- Modify and/or monitor data
Denial of service
Bluetooth
High speed communication over short distances
- PAN (Personal Area Network)
Connects our mobile devices
- Smartphones, tethering, headsets and headphones, smartwatches, etc.
Do not connect to unknown Bluetooth devices
- There’s a formal pairing process to prevent unauthorized connections
Wireless Security Settings
Securing a Wireless Network
An organization’s wireless network can contain confidential information
- Not everyone is allowed access
Authenticate the users before granting access
- Who gets access to the wireless network?
- Username, password, multifactor authentication
Ensure that all communication is confidential
- Encrypt the wireless data
Verify the integrity of all communication
- The received data should be identical to the original sent data
- A message integrity check (MIC)
The WPA2 PSK Problem
WPA2 has a PSK brute-force problem
- Listen to the four-way handshake
- Some methods can derive the PSK hash without the handshake
- Compute the hash
With the hash, attackers can brute force the pre-shared key (PSK)
This has become easier as technology improves
- A weak PSK is easier to brute-force
- GPU processing speeds
- Cloud-based password cracking
Once you have the PSK, you have everyone’s wireless key
- There’s no forward secrecy
WPA3 and GCMP
Wi-Fi Protected Access 3 (WPA3)
GCMP block cipher mode
- Galois/Counter Mode Protocol
- A stronger encryption than WPA2
GCMP security services
- Data confidentiality with AES
- Message Integrity Check (MIC) with Galois Message Authentication (GMAC)
SAE
WPA3 changes the PSK authentication process
- Includes mutual authentication
- Creates a shared session key without sending that key across the network
- No more four-way handshakes, no hashes, no brute force attacks
Simultaneous Authentication of Equals (SAE)
- A Diffie-Hellman derived key exchange with an authentication component
- Everyone uses a different session key, even with the same PSK
- An IEEE standard — the dragonfly handshake
Wireless Authentication Methods
Gain access to a wireless network
- Mobile users
- Temporary users
Credentials
- Shared password/pre-shared key (PSK)
- Centralized authentication (802.1X)
Configuration
- Part of the wireless network connection
- Prompted during the connection process
Wireless Security Modes
Configure the authentication on your wireless access point/wireless router
Open System
- No authentication password is required
WPA3-Personal/WPA3-PSK
- WPA2 or WPA3 with a pre-shared key
- Everyone uses the same 256-bit key
WPA3-Enterprise/WPA3-802.1X
- Authenticates users individually with an authentication server (i.e, RADIUS)
AAA Framework
Identification
- This is who you claim to be
- Usually your username
Authentication
- Prove you are who you say you are
- Password and other authentication factors
Authorization
- Based on your identification and authentication, what access do you have?
Accounting
- Resources use: Login time, data sent and received, logout time

RADIUS (Remote Authentication Dial-in User Service)
One of the more common AAA protocols
- Supported on a wide variety of platforms and devices
Centralize authentication for users
- Routers, switches, firewalls
- Server authentication
- Remote VPN access
- 802.1X network access
RADIUS services available on almost any server operating system
IEEE 802.1X
IEEE 802.1X
- Port-based Network Access Control (NAC)
- You don’t get access to the network until you authenticate
Used in conjunction with an access database
EAP
Extensible Authentication Protocol (EAP)
- An authentication framework
Many ways to authenticate based on RFC standards
- Manufacturers can build their own EAP methods
EAP integrates with 802.1X
- Prevents access to the network until the authentication succeeds
IEEE 802.1X and EAP
Supplicant — the client
Authenticator — The device that provides access
Authentication server — Validates the client credentials

Application Security
Secure Coding Concepts
A balance between time and quality
- Programming with security in mind is often secondary
Testing, testing, testing
- The Quality Assurance (QA) process
Vulnerabilities will eventually be found
What is the expected input?
- Validate actual vs. expected
Document all input methods
Check and correct all input (normalization)
- A zip code should be only X characters long with a letter in the X column
- Fix any data with improper input
The fuzzers will find what you missed
- Don’t give them an opening
Cookies
Cookies
- Information stored on your computer by the browser
Used for tracking, personalization, session management
- Not executable, not generally a security risk
- Unless someone gets access to them
Secure cookies have a Secure attribute set
- Browser will only send it over HTTPS
Sensitive information should not be saved in a cookie
- This isn’t designed to be secure storage
Static Code Analyzers
Static Application Security Testing (SAST)
- Help to identify security flaws
Many security vulnerabilities found easily
- Buffer overflows, database injections, etc.
Not everything can be identified through analysis
- Authentication security, insecure cryptography, etc.
- Don’t rely on automation for everything
Still have to verify each finding
- False positives are an issue

Code Signing
An application is deployed
- Users run application executables or scripts
So many security questions
- Has the application been modified in any way?
- Can you confirm that the application was written by a specific developer?
The application code can be digitally signed by the developer
- Asymmetric encryption
- A trusted CA signs the developer’s public key
- Developer signs the code with their private key
- For internal apps, use your own CA
Sandboxing
Applications cannot access unrelated resources
- They play in their own sandbox
Commonly used during development
- Can be useful production technique
Used in many deployments
- Virtual machines
- Mobile devices
- Browser iframes (Inline Frames)
- Windows User Account Control (UAC)
Application Security Monitoring
Real-time information
- Application usage, access demographics
View blocked attacks
- SQL injection attempts, patched vulnerabilities
Audit the logs
- Find the information gathering and hidden attacks
Anomaly detection
- Unusual file transfer
- Increase in client access
Asset Management
Asset Management
Acquisition/Procurement Process
The purchasing process
- Multi-step process for requesting and obtaining goods and services
Start with a request from the user
- Usually includes budgeting information and formal approvals
Negotiate with suppliers
Assignment/Accounting
A central asset tracking system
- Used by different parts of the system
Ownership
- Associate a person with an asset
- Useful for tracking a system
Classification
- Type of asset
- Hardware (capital expenditure)
- Software (Operating expenditure)
Monitoring/Asset Tracking
Inventory every asset
- Laptops, desktops, servers, routers, switches, cables, fiber modules, tablets, etc.
Associate a support ticket with a device make and model
- Can be more detailed than a user’s description
Enumeration
- List all parts of an asset
- CPU, memory, storage drive, keyboard, mouse
Add an asset tag
- Barcode, RFID, visible tracking number, organization name
System disposal or decommissioning
- Completely remove data
- No usable information remains
Different use cases
- Clean a hard drive for future use
- Permanently delete a single file
A one-way trip
- Once it’s gone, it’s really gone
- No recovery with forensics tools
Reuse the storage media
- Ensure nothing is left behind
Physical Destruction
Shredder/pulverizer
- Heavy machinery
- Complete destruction
Drill/Hammer
- Quick and easy
- Platters, all the way through
Electromagnetic (degaussing)
- Remove the magnetic field
- Destroys hard drive data and renders the hard drive unusable
Incineration
Certificate of Destruction
Destroy is often done by a 3rd-party
- How many drills and degaussers do you have?
Need confirmation that your data is destroyed
- Service should include a certificate
A paper trail of broken data
- You know exactly what happening
Data Retention
Backup your data
- How much and where?
- Copies, versions of copies, lifecycle of data, purging old data
Regulatory compliance
- A certain amount of data backup may be required
- Emails, corporate financial data
Operational needs
- Accidental deletion
- Disaster recovery
Differentiate by type and application
- Recover the data you need when you need it
Vulnerability Management
Vulnerability Scanning
Usually minimally invasive
- Unlike a penetration test
Port scan
- Poke around and see what’s open
Identify system
Test from the outside and inside
- Don’t dismiss insider threats
Gather as much information as possible
- We’ll separate wheat from chaff later

Static Code Analyzer
Static Application Security Testing (SAST)
- Help to identify security flaws
Many security vulnerabilities found easily
- Buffer overflows, database injections, etc.
Not everything can be identified through analysis
- Authentication security, insecure cryptography, etc.
- Don’t rely on automation for everything
Still have to verify each finding
- False positives are an issue

Dynamic Analysis (fuzzing)
Send random input to an application
- Fault-injecting, robustness testing, syntax testing, negative testing
Looking for something out of the ordinary
- Application crash, server error, exception
1988 class project at the University of Wisconsin
- “Operating System Utility Program Reliability”
- Professor Barton Miller
- The Fuzz Generator
Fuzzing Engines and Frameworks
Many fuzzing options
- Platform specific, language specific, etc.
Very time and processor resource heavy
- Many, many iterations to try
- Many fuzzing engines use high-probability tests
Carnegie Mellon Computer Emergency Response Team (CERT)
Package Monitoring
Some applications are distributed in a package
- Especially open source
- Supply chain integrity
Confirm the package is legitimate
- Trusted source
- No added malware
- No embedded vulnerabilities
Confirm a safe package before deployment
Threat Intelligence
Research the threats
Data is everywhere
- Hacker group profiles, tools used by the attackers, and much more
Make decisions based on this intelligence
- Invest in the best prevention
Used by researchers, security operations teams, and others
Open-source Intelligence (OSINT)
Open-source
- Publicly available sources
- A good place to start
Internet
- Discussion groups, social media
Government data
- Mostly public hearings, reports, websites, etc.
Commercial data
- Maps, financial reports, databases
Proprietary/Third-party Intelligence
Someone else has already compiled the threat information
Threat intelligence services
- Threat analysis
- Correlation across different data sources
Constant threat monitoring
- Identify new threats
- Create automated prevention workflows
Public threat intelligence
- Often classified information
Private threat intelligence
- Private companies have extensive resources
Need to share critical security details
- Real-time, high-quality cyber threat information sharing
Cyber Threat Alliance (CTA)
- Members upload specifically formatted threat intelligence
- CTA scores each submission and validates across other submissions
- Other members can extract the validated data
Dark Web Intelligence
Dark website
- Overlay networks that use the Internet
- Requires specific software and configurations to access
Hacking groups and services
- Activities
- Tools and techniques
- Credit card sales
- Accounts and passwords
Monitor forums for activity
- Company names, executive names
Penetration Testing
Pentest
Similar to vulnerability scanning
- Except we actually try to exploit the vulnerabilities
Often a compliance mandate
- Regular penetration testing by a 3rd-party
National Institute of Standards and Technology
- Technical Guide to Information Security Testing and Assessment
Rules of Engagement
An important document
- Defines purpose and scope
- Makes everyone aware of the test parameters
Type of testing and schedule
- On-site physical breach, internal test, external test
- Normal working hours, after 6 PM only, etc.
The rules
- IP address ranges
- Emergency contacts
- How to handle sensitive information
- In-scope and out-of-scope devices or appliances
Exploiting Vulnerabilities
Try to break into the system
- Be careful; this can cause a denial of service or loss of data
- Buffer overflows can cause instability
- Gain privilege escalation
You may need to try many vulnerability types
- Password brute-force
- Social engineering
- Database injections
- Buffer overflows
You will only be sure you’re vulnerable if you can bypass security
- If you can get through, the attackers can get through
The Process
Initial exploitation
Lateral movement
- Move from system to system
- The inside of the network is relatively unprotected
Persistence
- Once you are there, you need to make sure there is a way back in
- Set up a backdoor, build user accounts, change or verify default passwords
The pivot
- Gain access to systems that would normally not be accessible
- Use a vulnerable system as a proxy or relay
Responsible Disclosure Program
It takes tie to fix a vulnerability
- Software changes, testing, deployment, etc.
Bug bounty programs
- A reward for discovering vulnerabilities
- Earn money for hacking a system
- Document the vulnerability to earn cash
A controlled information release
- Researcher reports the vulnerability
- Manufacturer creates a fix
- The vulnerability is announced publicly
Analyzing Vulnerabilities
False positives
- A vulnerability is identified that doesn’t really exist
This is different from a low-severity vulnerability
- It’s real, but it may not be your highest priority
False negatives
- A vulnerability exists, but you didn’t detect it
Update to the latest signatures
- If you don’t know about it, you can’t see it
Work with the vulnerability detection manufacturer
- They may need to update their signatures for your environment
Prioritizing Vulnerabilities
Not every vulnerability shares the same priority
- Some may not be significant
- Others may be critical
This may be difficult to determine
- The research has probably already been done
Refer to public disclosures and vulnerability databases
- The industry is well versed
- Online discussion groups, public disclosure mailing lists
CVSS
National Vulnerability Database
Common Vulnerability Scoring System (CVSS)
- Quantitative scoring of a vulnerability — 0 to 10
- The scoring standards change over time
- Different scoring for CVSS 2.0 vs. CVSS 3.x
Industry collaboration
- Enhanced feed sharing and automation
CVE
The vulnerabilities can be cross-referenced online
- Almost all scanners give you a place to go
National Vulnerability Database
Common Vulnerabilities and Exposure (CVE)
Microsoft Security Bulletins
Some vulnerabilities cannot be definitively identified
- You will have to check manually to see if a system is vulnerable
- The scanner gives you a heads-up
Vulnerability Classification
The scanner looks for everything
- Well, not everything — The signatures are the key
Application scans
Web application scans
Network scans
- Misconfigured firewalls, open ports, vulnerable devices
Exposure Factor
Loss of value or business activity if the vulnerability is exploited
- Usually expressed as a percentage
A small DDoS may limit access to a service
- 50% exposure factor
A buffer overflow may completely disable a service
- 100% exposure factor
A consideration when prioritizing
- Worst possible outcome probably gets priority
Environmental Variables
What type of environment is associated with this vulnerability?
- Internal server, public cloud, test lab
Prioritization and patching frequency
- A device in an isolated test lab
- A database server in the public cloud
- Which environment gets priority?
Every environment is different
- Number and type of users (internal, external)
- Revenue generating application
- Potential for exploit
Industry/Organizational Impact
Some exploits have signal-to-noise consequences
- The type of organization is an important consideration
Tallahassee Memorial Healthcare — February 2023
- Ransomware — closed for two weeks
- Diverted emergency cases, surgeries cancelled
Power utilities — Salt Lake City, Utah and LA County, California — March 2019
- DDoS attacks from an unpatched known vulnerability
Risk Tolerance
The amount of risk acceptable to an organization
- It’s important to remove all risk
The timing of security patches
- Patching immediately doesn’t allow for proper testing
Testing takes time
- While you’re testing, you’re also vulnerable
There’s a middle ground
- May change based on the severity
Patching
The most common mitigation technique
- We know the vulnerability exists
- We have a patch file to install
Scheduled vulnerability/patch notices
Unscheduled patches
This is an ongoing process
- The patches keep coming
- An easy way to prevent most exploits
Insurance
Cybersecurity insurance coverage
- Lost revenue
- Data recovery costs
- Money lost to phishing
- Privacy lawsuit costs
Doesn’t cover everything
- Intentional acts, funds transfers, etc.
Ransomware has increased popularity of cybersecurity liability insurance
- Applies to every organization
Segmentation
Limit the scope of an exploit
- Separate devices into their own networks/VLANs
A breach would have limited scope
- It’s not as bad as it could be
Can’t patch?
- Disconnect from the world
- Air gaps may be required
Use internal NGFWS
- Block unwanted/unnecessary traffic between VLANs
- Identify malicious traffic on the inside
Physical Segmentation
Separate devices
- Multiple units, separate infrastructure

Logical Segmentation with VLANs
Virtual Local Area Network (VLANs)
- Separated logically instead of physically
- Cannot communicate between VLANs without a layer 3 device/router

Compensating Controls
Optimal security methods may not be available
- Can’t deploy a patch right now
- No internal firewalls
Compensate in other ways
- Disable the problematic service
- Revoke access to the application
- Limit external access
- Modify internal security controls and software firewalls
Provide coverage until a patch is deployed
- Or similar optimal security response
Exceptions and Exemptions
Removing the vulnerability is optimal
- But not everything can be patched
A balancing act
- Provide the service, but also protect the data and systems
Not all vulnerabilities share the same severity
- May require local login, physical access, or other criteria
An exception may be an option
- Usually a formal process to approve
The vulnerability is now patched
- Does the patch really stop the exploit?
- Did you patch all vulnerable systems?
Rescanning
- Perform an extensive vulnerability scan
Audit
- Check remediated systems to ensure the patch was successfully deployed
Verification
- Manually confirm the security of the system
Reporting
Ongoing checks are required
- New vulnerabilities are continuously discovered
Difficult (or impossible) to manage without automation
- Manual checks would be time-consuming
Continuous reporting
- Number of identified vulnerabilities
- Systems patched vs. unpatched
- New threat notifications
- Errors, exception, and exemptions
Security Monitoring
Security Monitoring
The attackers never sleep
Monitor all entry points
- Logins, publicly available services, data storage locations, remote access
React to security events
- Account access, firewall rule base, additional scanning
Status dashboards
- Get the status of all systems at a glance
Monitoring Computing Resources
Systems
- Authentication — logins from strange places
- Server monitoring — Service activity, backups, software versions
Applications
- Availability — Uptime and response times
- Data transfers — Increases or decreases in rates
Infrastructure
- Remote access systems — Employees, vendors, guests
- Firewall and IPS reports — Increase or type of attack
Log Aggregation
SIEM or SEM (Security Information and Event Manager)
- Consolidate different logs to a central database
- Servers, firewalls, VPN concentrators, SANs, cloud services
Centralized reporting
- All information in one place
Correlation between diverse systems
- View authentication and access
- Track application access
- Measure and report on data transfers
Scanning
A constantly changing threat landscape
- New vulnerabilities discovered daily
- Many business applications and services
- Systems and people are always moving
Actively check systems and devices
- OS types and versions
- Device driver options
- Installed applications
- Potential anomalies
Gather the raw details
- A valuable database of information
Reporting
Analyze the collected data
- Create “actionable” reports
Status information
- Number of devices up to date/in compliance
- Devices running older OSes
Determine best next steps
- A new vulnerability is announced
- How many systems are vulnerable?
Ad hoc information summaries
Archiving
It takes an average of about 9 months for a company to identify and contain a breach
- IBM security report, 2022
Access to data is critical
- Archive over an extended period
May have a mandate
- State for federal law
- Or organizational requirements
Alerting
Real-time notification of security events
- Increase in authentication errors
- Large file transfers
Actionable data
- Keep the right people informed
- Enable quick response and status information
Notification methods
- SMS/text
- Email
- Security console/SOC
Quarantine
- A foundational security response
- Prevent a potential security issue from spreading
Alert tuning
- A balancing act
- Prevent false positives and false negatives
An alert should be accurate
- This is an ongoing process
- The tuning gets better as time goes on
Security Content Automation Protocol (SCAP)
Many security tools on the market
- NGFWs, IPS, vulnerability scanners, etc.
- They all have their own way of evaluating a threat
Managed by National Institute of Standards and Technology (NIST)
Allows tools to identify and act on the same criteria
- Validate the security configuration
- Confirm patch installs
- Scan for a security breach
Using SCAP
SCAP content can be shared between tools
- Focused on configuration compliance
- Easily detect applications with known vulnerabilities
Especially useful in large environments
- Many OSes and applications
This specification standard enables automation
- Even between different tools
Automation types
- Ongoing monitoring
- Notification and alerting
- Remediation of noncompliant systems
Benchmarks
Apply security best-practices to everything
- OSes, cloud providers, mobile devices, etc.
- The bare minimum for security settings
Example: Mobile device
- Disable screenshots, disable screen recordings, prevent voice calls when locked, force encryption backups, disable additional VPN profiles, configure a “lost phone” message, etc.
Popular benchmarks — Center for Internet Security (CIS)
Agents/Agentless
Check to see if the device is in compliance
- Install a software agent onto the device
- Run an on-demand agentless check
Agents can usually provide more details
- Always monitoring for real-time notifications
- Must be maintained and updated
Agentless runs without a formal install
- Performs the check, then disappears
- Does not require ongoing updates to an agent
- Will not inform or alert if not running
SIEM
Security Information and Event Management
- Logging of security events and information
Log collection of security alerts
Log aggregation and long-term storage
- Usually includes advanced reporting features
Data correlation
Forensic analysis
- Gather details after an event
Anti-virus and Anti-malware
Anti-virus is the popular term
- Refers specifically to a type of malware
- Trojans, worms, macro viruses
Malware refers to the broad malicious software category
- Anti-malware stops spyware, ransomware, fileless malware
The terms are effectively the same these days
- The names are more of a marketing tool
- Anti-virus software is also anti-malware software now
- Make sure your system is using a comprehensive solution
Data Loss Prevention (DLP)
Where’s your data?
- Social Security Numbers, Credit Card Numbers, Medical Records
Stop the data before the attacker gets it
So many sources, so many destinations
- Often requires multiple solutions
- Endpoint clients
- Cloud-based systems
- Email, cloud storage, collaboration tools
SNMP
Simple Network Management Protocol
- A database of data (MIB) — Management Information Base
- The database contains OIDS — Object identifiers
- Poll devices over
udp/161
Request statistics from a device
- Server, firewall, workstation, switch, router, etc.

Graphing with SNMP

SNMP traps
Most SNMP operations expect a poll
- Devices then respond to the SNMP request
- This requires constant polling
SNMP traps can be configured on the monitored device
- Communicates over
udp/162
Set a threshold for alerts
- If the number of CRC errors increases by 5, send a trap
- Monitoring station can be reacted immediately
NetFlow
Gather traffic statistics from all the traffic flows
- Shared communication between devices
NetFlow
- Standard collection method
- Many products and options
Probe and collector
- Probe watches network communication
- Summary records are sent to the collector
Usually a separate reporting app
- Closely tied to the collector



Vulnerability Scanner
Usually minimally invasive
- Unlike a penetration test
Port scan
- Poke around and see what’s open
Identify systems
Test from the outside and inside
- Don’t dismiss insider threats
Gather as much information as possible
- We’ll separate wheat from chaff later

Enterprise Security
Firewalls
Network-based Firewalls
Filter traffic by port number of application
Encrypt traffic
Most firewalls can be layered 3 devices (router)
- Often sits on the ingress/egress of the network
- Network Address Translation (NAT)
- Dynamic routing
Next-generation Firewalls (NGFW)
The OSI Application Layer
Can be called different names
- Application layer gateway
- Stateful multilayer inspection
- Deep packet inspection
Requires some advanced decodes
- Every packet must be analyzed, categorized, and a security decision determined
Ports and Protocols
Make a forwarding decisions based on protocols (TCP or UDP) and port number
- Traditional port-based firewalls
- Add to an NGFW for additional security policy options
Based on destination protocol and port
- Web server: tcp/80, tcp/443
- SSH server: tcp/22
- Microsoft RDP: tcp/3389
- DNS query: udp/53
- NTP:udp/123
Firewall Security Policies:

Firewall Rules
A logical path
Can be very general or very specific
- Specific rules are usually at the top
Implicit deny
- Most firewalls include deny at the bottom
- Even if you didn’t put one
Access control lists (ACLS)
- Allow or disallow traffic
- Groupings of categories — Source IP, Destination IP, port number, time of day, application, etc.
Web Server Firewall Ruleset

Screened subnet
An additional layer of security between you and the Internet
- Public access to public resources
- Private data remains inaccessible

IPS Rules
Intrusion Prevention System
- Usually integrated into an NGFW
Different ways to find malicious traffic
- Look at traffic as it passes by
Signature-based
Anomaly-based
- Build a baseline of what’s “normal”
- Unusual traffic patterns are flagged

You determine what happens when unwanted traffic appears
- Block, allow, send an alert, etc.
Thousands of rules
Rules can be customized by group
This can take time to find the right balance
- Security/alert “noise”/false positives

Web Filtering
Content filtering
Control traffic based on data within the content
- URL filtering, website category filtering
Corporate control of outbound and inbound data
Control of inappropriate content
- Not safe for work
- Parental controls
Protection against evil
URL Scanning
Allow or restrict on Uniform Resource Locator (URL)
- Also called a Uniform Resource Identifier (URI)
- Allow list/Block list
Managed by category
- Auction, hacking, malware, travel, recreation, etc.
Can have limited control
- URLs aren’t the only way to surf
Often integrated into an NGFW
- Filters traffic based on category or specific URL
Agent Based
Install client software on the user’s device
- Usually managed from a central console
Users can be located anywhere
- The local agent makes the filtering decisions
- Always-on, always filtering
Updates must be distributed to all agents
- Cloud-based updates
- Update status shown at the console
Proxies
- Sits between the users and the external network
- Receive the user requests and sends the request on their behalf (the proxy)
- Useful for caching information, access control, URL filtering, content scanning
- Applications may need to know how to use the proxy (explicit)
- Some proxies are invisible (transparent)
Forward Proxy
A centralized “internal proxy”
- Commonly used to protect and control user access to the Internet

Block Rules
Based on specific URL
- *.professormesser.com:Allow
Category of site content
- Usually divided into over 50 different topics
- Adult, Educational, Gambling, Government, Home and Garden, Legal, Malware, News, etc.
Different dispositions
- Educational: Allow
- Home and Garden: Allow and Alert
- Gambling: Block
Reputation
Filters URLs based on perceived risk
- A good reputation is allowed
- A bad reputation is blocked
- Risk: Trustworthy, Low risk, Medium risk, Suspicious, High risk
Automated reputation
- Sites are scanned and assigned a reputation
Manual reputation
- Managers can administratively assign a rep
Add these dispositions to the URL filter
- High risk: Block, Trustworthy: Allow
DNS filtering
Before connecting to a website, get the IP address
DNS is updated with real-time threat intelligence
- Both commercial and public lists
Harmful sites are not connection
- No IP address, no connection
This works for any DNS lookup
Operating System Security
Active Directory
A database of everything on the network
- Computers, user accounts, file shares, printers, groups, and more
- Primarily Windows-based
Manage authentication
- Users login using their AD credentials
Centralized access control
- Determine which users can access resources
Commonly used by the help desk
- Reset passwords, add and remove accounts
Group Policy
Manage the computers or users with Group Policies
- Local and Domain policies
- Group Policy Management Editor
A central console
- Login scripts
- Network configurations (QoS)
- Security parameters
Comprehensive control
- Hundreds of configuration options
Security-Enhanced Linux (SELinux)
Security patches for Linux Kernel
- Adds mandatory access control (MAC) to Linux
- Linux traditionally uses discretionary Access Control (DAC)
Limits application access
- The Least privilege
- A potential breach will have limited scope
Open-source
- Already included as an option with many Linux distributions
Secure Protocols
Unencrypted Network Data
Network traffic is important data
- Everything must be protected
Some protocols aren’t encrypted
- All traffic sent in the clear
- Telnet, FTP, SMTP, IMAP
Verify with a packet capture
- View everything sent over the network
Protocol Selection
Use a secure application protocol
A secure protocol may not be available
- This may be a deal-breaker

Port Selection
Secure and insecure application connections may be available
- It’s common to run secure and insecure on different ports
HTTP and HTTPS
- In-the-clear and encryption web browsing
- HTTP: Port 80
- HTTPS: Port 443
The port number does not guarantee security
- Confirm the security features are enabled
- Packet captures may be necessary

Transport method
Don’t rely on the application
- Encrypt everything over the current network transport
802.11 Wireless
- Open access point: No transport-level encryption
- WPA3: All user data is encrypted
Virtual Private Network (VPN)
- Create an encrypted tunnel
- All traffic is encrypted and protected
- Often requires third-party services and software
VPN Tunnel:

Email Security
Email Security Challenges
The protocols used to transfer emails include relatively few security checks
- It’s very easy to spoof an email
Spoofing happens all the time
The email looks as if it originated from james@professormesser.com
- But did it? How can you tell?
A reputable sender will configure email validation
- Publicly available on the sender’s DNS server
Mail Gateway
The gatekeeper
- Evaluates the source of inbound email messages
- Blocks it at the gateway before it reaches the user
- On-site or cloud-based

Sender Policy Framework (SPF)
SPF protocol
- Sender configures a list of all servers authorized to send emails for a domain
List of authorized mail servers are added to a DNS TXT record
- Receiving mail servers perform a check to see if incoming mail really did come from an authorized host

Domain Keys Identified Mail (DKIM)
A mail server digitally signs all outgoing mail
- The public key is in the DKIM TXT record
The signature is validated by the receiving mail servers
- Not usually seen by the end user

DMARC
Domain-based Message Authentication, Reporting, and Conformance (DMARC)
- An extension of SPF and DKIM
The domain owner decides what receiving email servers should do with emails not validating using SPF and DKIM
- That policy is written into a
DNS TXT record
- Accept all, send to spam, or reject the email
Compliance reports are sent to the email administrator
- The domain owner can see how emails are received

Monitoring Data
FIM (File Integrity Monitoring)
Some files change all the time
- Some files should NEVER change
Monitor important OS and application files
- Identify when changes occur
Windows — SFC (System File Checker)
Linux — Tripwire
Many host-based IPS options
Data Loss Prevention (DLP)
Where’s your data?
- Social Security Numbers, credit card numbers, medical records
Stop the data before the attackers get it
So many sources, so many destinations
- Often requires multiple solutions in different places
Data Loss Prevention (DLP) Systems
On your computer
On your network
On your server
USB Blocking
DLP on a workstation
- Allow or deny certain tasks
November 2008 — U.S. Department of Defense
- Worm virus “agent.btz” replicates using USB storage
- Bans removable flash media and storage devices
All devices had to be updated
- Local DLP agent handled USB blocking
Ban was lifted in February 2010
- Replaced with strict guidelines
Cloud-based DLP
Located between users and the Internet
- Watch every byte of network traffic
- No hardware, no software
Block custom defined data strings
- Unique data for your organization
Manage access to URLs
- Prevent file transfers to cloud storage
Block viruses and malware
- Anything traversing the network
DLP and Email
Email continue to be the most critical risk vector
- Inbound threats, outbound data loss
Check every email inbound and outbound
- Internal system or cloud-based
Inbound
- Block keywords, identify impostors, quarantine email messages
Outbound
- Fake wire transfers, W-2 transmissions, employee information
Emailing a spreadsheet template
November 2016
Boeing employee emails spouse a spreadsheet to use as a template
Contained the personal information of 36000 Boeing employees
- In hidden columns
- Social security numbers, data of birth, etc.
Boeing sells its own DLP software
- But only uses it for classified work
Endpoint Security
The endpoint
The user’s access
Stop the attackers
- Inbound attacks
- Outbound attacks
Many platforms
Protection is multi-faceted
Edge vs. Access Control
Control at the edge
- Your Internet link
- Managed primarily through firewall rules
- Firewall rules rarely change
Access control
- Control from wherever you are
- Access can be based on many rules
- By user, group, location, application, etc.
- Access can be easily revoked or changed
- Change your security posture at any time
Posture Assessment
You can’t trust everyone’s computer
- BYOD (Bring Your Own Device)
- Malware infections/missing anti-malware
- Unauthorized applications
Before connecting to the network, perform a health check
- Is it a trusted device?
- Is it running anti-virus? Which one? Is it updated?
- Are corporate applications installed?
- Is it a mobile device? Is the disk encrypted?
- The type of device doesn’t matter — Windows, Mac, Linux, iOS, Android
Health Checks/Posture Assessment
Persistent agents
- Permanently installed onto a system
- Periodic updates may be required
Dissolvable agents
- No installation is required
- Runs during the posture assessment
- Terminates when no longer required
Agentless NAC
- Integrated with AD
- Checks are made during login and logoff
- Can’t be scheduled
Failing your Assessment
What happens when a posture assessment fails?
- Too dangerous to allow access
Quarantine network, notify administrators
- Just enough network access to fix the issues
Once resolved, try again
- May require additional fixes
Endpoint Detection and Response (EDR)
A different method of threat protection
- Scale to meet the increasing number of threats
Detect a threat
- Signatures aren’t the only detection tool
- Behavioral analysis, machine learning, process monitoring
- Lightweight agent on the endpoint
Investigate the threat
Respond to the threat
- Isolate the system, quarantine the threat, rollback to a previous config
- API driven, no user or technician intervention required
Extended Detection and Response (XDR)
An evolution of EDR
- Improve missed detections, false positives, and long investigation times
- Attacks involve more than just the endpoint
Add network-based detection
- Investigate and respond to network anomalies
Correlate endpoint, network, and cloud data
- Improve detection rates
- Simplify security event investigation
User Behavior Analytics
XDR commonly includes user behavior analytics
- Extend the scope of anomaly detection
Watch users, hosts, network traffic, data repositories, etc.
- Create a baseline or normal activity
- Requires data analysis over an extended period
Watch for anything unusual
- Use a set of rules, pattern matching, statistical analysis
Real-time detection of unusual activity
Identity and Access Management
Identity and Access Management (IAM)
Identity lifecycle management
- Every entity (human and non-human) gets a digital identity
Access control
- An entit only get access to what they need
Authentication and authorization
- Entities must prove they are who they claim to be
Identity governance
- Track an entity’s resource access
- It may be a regulatory requirement
Provisioning/De-provisioning User Accounts
The user account creation process
- And the account removal process
Provisioning and de-provisioning occurs for certain events
- Hiring, transfers, promotions, job separation
Account details
- Name, attributes, group permissions, other permissions
An important part of the IAM process
- An initial checkpoint to limit access
- Nobody gets Administrator access
Permission Assignments
Each entity gets limited permissions
- Just enough to do their job
- Group assignments are common
Storage and files can be private to that user
- Even if another person is using the same computer
No privilege access to the OS
- Specifically not allowed on a user account
Identity Proofing
I could be anyone
- The IAM process should confirm who I am
Resolution
- Who the system thinks you are
Validation
- Gathering information from the user (password, security questions, etc.)
Verification/Attestation
- Passport, in-person meeting, etc.
- Automated verification is also an option
Gaining Access:

Single sign-on (SSO)
Provide credentials one time
- Get access to all available or assigned resources
- No additional authentication required
Usually limited by time
- A single authentication can work for 24 hours
- Authenticate again after the timer expires
The underlying authentication infrastructure must support SSO
LDAP (Lightweight Directory Access Protocol)
Protocol for reading and writing directories over an IP network
- An organized set of records, like a phone directory
X.500 specification was written by the International Telecommunications Union (ITU)
DAP ran on the OSI protocol stack
LDAP is the protocol used to query and update an X.500 directory
- Used in Windows Active Directory, Apple OpenDirectory, Novell eDirectory, etc.
X.500 Distinguished Names
attribute = value pairs
Most specific attribute is listed first
- This may be similar to the way you already think
CN=WIDGETWEB, OU=Marketing, O=Widget, L=London, ST=London, C=GB, DC=com

Hierarchical structure
Container objects
- Country, organization, organizational units
Leaf objects
- Users, computers, printers, files

Security Assertion Markup Language (SAML)
Open Standard for authentication and authorization
- You can authenticate through a third party to gain access
- One standard does it all, sort of
Not originally designed for mobile apps
- This has been SAML’s largest roadblock
The SAML Authentication Flow:

OAuth
Authorization framework
- Determines what resources a user will be able to access
Created by Twitter, Google, and many others
- Significant industry support
Not an authentication protocol
- OpenID Connect handles the single sing-on authentication
- OAuth provides authorization between applications

Federation
Provide network access to others
- Not just employees — Partners, suppliers, customers, etc.
- Provides SSO and more
Third-parties can establish a federated network
- Authenticate and authorize between the two organizations
- Login with your Facebook credentials
The third party must establish a trust relationship
- And the degree of the trust

Interoperability
Many ways to communicate with an authentication server
- More than a simple login process
Often determined by what is at hand
- VPN concentrator can talk to an LDAP server
- We have an LDAP server
A new app uses OAuth
- Need to allow authentication API access
The interoperability is dependent on the environment
- This is often part of a much larger IAM strategy
Access Controls
Authorization
- The process of ensuring only authorized rights are exercised
- Policy enforcement
- The process of determining rights
- Policy definition
User receive rights based on Access Control models
- Different business needs or mission requirements
Least Privilege
Rights and permissions should be set to the bare minimum
- You only get exactly what’s needed to complete your objective
All user accounts must be limited
- Applications should run with minimal privileges
Don’t allow users to run with administrative privileges
- Limits the scope of malicious behavior
Mandatory Access Control (MAC)
The OS limits the operation on an object
- Based on security clearance levels
Every object gets a label
- Confidential, secret, top secret, etc.
Labeling of objects uses predefined rules
- The administrator decides who gets access to what security level
- Users cannot change these settings
Discretionary Access Control (DAC)
Used in most OSes
- A familiar access control model
You create a spreadsheet
- As the owner, you control who has access
- You can modify access at any time
Very flexible access control
Role-based Access Control (RBAC)
You have a role in your organization
- Manager, director, team lead, project manager
Administrators provide access based on the role of the user
- Rights are gained implicitly instead of explicitly
On Windows, use Groups to provide role-based access control
- You are in shipping and receiving, so you can use the shipping software
- You are the manager, so you can review shipping logs
Generic term for following rules
- Conditions other than who you are
Access is determined through system-enforced rules
- System administrators, not users
The rule is associated with the object
- System checks the ACLs for that object
Rules examples
- Lab network access is only available between 9 AM and 5 PM
- Only Chrome browsers may complete this web form
Attribute-based Access Control (ABAC)
Users can have complex relationships to application and data
- Access may be based on many criteria
ABAC can consider many parameters
- A “next-generation” authorization model
- Aware of context
Combine and evaluate multiple parameters
- Resource information, IP address, time of day, desired action, relationship to the data, etc.
Time-of-day Restrictions
Almost all security devices include a time-of-day option
- Restrict access during certain times or days of the week
- Usually not the only access control
Can be difficult to implement
- Especially in a 24-hour environment
Time-of-day restrictions
- Training room network is inaccessible between midnight and 6 AM
- Conference room access is limited after 8 PM
- R&D databases are only after between 8 AM and 6 PM
Multifactor Authentication
Prove who you are
- Use different methods
- A memorized password
- A mobile app
- Your GPS location
Factors
- Something you know
- Something you have
- Something you are
- Somewhere you are
There are other factors as well
Something You Know
Password
- Secret word/phrase, string of characters
- Very common authentication factor
PIN
- Personal Identification Number
- Not typically contained anywhere on a smart card or ATM card
Pattern
- Complete a series of patterns
- Only you know the right format
Something You Have
Smart card
- Integrates with devices
- May require a PIN
USB security key
- Certificate is on the USB devices
Hardware or software tokens
- Generates pseudo-random authentication codes
Your phone
Something You are
Biometric authentication
- Fingerprints, iris scan, voiceprint
Usually stores a mathematical representation of your biometric
- Your actual fingerprint isn’t usually saved
Difficult to change
- You can change your password
- You can’t change your fingerprint
Used in very specific situations
Somewhere You are
Provide a factor based on your location
- The transaction only completes if you are in a particular geography
IP address
- Not perfect, but can help provide more info
- Works with IPv4, not so much with IPv6
Mobile device location services
- Geolocation to a very specific area
- Must be in a location that can receive GPS information or near an identified mobile or 802.11 network
- Still not a perfect identifier of location
Password Security
Password Complexity and Length
Make your password strong
- Resist guessing or brute-force attack
Increase password entropy
- No single words, no obvious passwords
- Mix upper and lower case letters, numbers, and special characters
Stronger passwords are commonly at least 8 characters
- These requirements change as processing speed gets faster
- Consider a phrase or set of words
Password Age and Expiration
Password age
- How long since a password was modified
Password expiration
- Password works for a certain amount of time
- 30 days, 60 days, 90 days, etc.
- After the expiration date, the password doesn’t work
- System remembers password history, requires unique passwords
Critical systems might change more frequently
- Every 15 days or every week
Password Managers
Important to use different passwords for each account
- Remembering all of them would be impractical
Store all of your passwords in a single database
- Encrypted, protected
- Can include multifactor tokens
Built-in, many OSes
Enterprise password managers
- Centralized management and recovery options
Passwordless Authentication
Many breaches are due to poor password control
- Weak passwords, insecure implementation
Authenticate without a password
- This solves many password management issues
You may already be passwordless
- Facial recognition, security key, etc.
Passwordless may not be the primary authentication method
- Used with a password or additional factors
Just-in-time permissions
In many organizations, the IT team is assigned administrator/root elevated account rights
- This would be a great account to attack
Grant admin access for a limited time
- No permanent administrator rights
- The principles of least privilege
A breached user account never has elevated rights
- Narrow the scope of a breach
Request access from a central clearinghouse
- Grants to denies based on predefined security policies
Password vaulting
- Primary credentials are stored in password vault
- The vault controls who get access to credentials
Accounts are temporary
- Just-in-time process creates a time-limited account
- Administrator receives ephemeral credentials
- Primary passwords are never released
- Credentials are used for one session then deleted
Automation and Orchestration
Scripting and Automation
Automate and orchestrate
- You don’t have to be there
- Solve problems in your sleep
- Monitor and resolve problems before they happen
The need for speed
- The script is as fast as the computer
- No typing or delays
- No human error
Automate mundane tasks
- You can do something more creative
Automation Benefits
Save time
- No typing required
- Run multiple times, over and over
Enforce baselines
- Missing an important security patch
- Automatically install when identified
Standard infrastructure configurations
- Use a script to build a default router config
- Add firewall rules to a new security appliance
- IP configurations, security rules, standard configuration options
Secure scaling
- Orchestrate cloud resources
- Quickly scale up and down
- Automation ensures proper security also scales
Employee retention
- Automate the boring stuff
- Ease the workload
- Minimize the mundane tasks
- Employees work is rewarding instead of repetitive
Reaction time
- The computer is much faster than you
- An event can be addressed immediately
- A script doesn’t need a wake-up call
Workforce multiplier
- Scripting works 24/7
- Allows the smart people to do smarter work somewhere else
Cases for automation
User and resource provisioning
- On-boarding and off-boarding
- Assign access to specific resources
Guard rails
- A set of automated validations
- Limit behaviors and responses
- Constantly check to ensure proper implementation
- Reduce errors
Security groups
- Assign (or remove) group access
- Constant audits without human intervention
Ticket creation
- Automatically identify issues
- Script email submissions into a ticket
Escalation
- Correct issues before involving a human
- If issue isn’t resolved, contact the on-call tech
Controlling services and access
- Automatically enable and disable services
- No set and forget
Continuous integration and testing
- Constant development and code updates
- Securely test and deploy
Integrations and application programming interfaces (APIs)
- Interact with third-party devices and services
- Cloud services, firewalls, OSes
- Talk their language
Scripting considerations
Complexity
- Many moving parts
- All the parts have to reliably work together
Cost
- It takes money to create the script
- It takes money to implement the automation
Single point of failure
- What happens if the script stops working?
- This could be a significant deal-breaker
Technical debt
- Patching problems may push the issue down the road
- It’s going to be more expensive to fix later
Ongoing supportability
- The script works great today
- The script may not work great tomorrow
- Plan for changes and updates
Incident Response
Incident Response
Security incidents
User clicks an email attachment and executes malware
- Malware then communicates with external servers
DDoS
Confidential information is stolen
- Thief wants money, or it goes public
User installs peer-to-peer software and allows external access to internal servers
NIST SP800-61
National Institute of Standards and Technology
- NIST Special Publication 800-61 Revision 2
- Computer Security Incident Handling Guide
The incident response lifecycle:
- Preparation
- Detection and Analysis
- Containment, Eradication, and Recovery
- Post-incident Activity
Preparing for an Incident
Communication methods
- Phones and contact information
Incident handling hardware and software
- Laptops, removable media, forensic software, digital cameras, etc.
Incident analysis resources
- Documentation, network diagrams, baselines, critical file hash values
Incident mitigation software
- Clean OS and application images
Policies needed for incident handling
- Everyone knows what to do
The Challenge of Detection
Many detection sources
- Different levels of detail, different levels of perception
A large amount of “volume”
- Attacks are incoming all the time
- How do you identify the legitimate threats?
Incidents are almost always complex
- Extensive knowledge needed
Analysis
An incident might occur in the future
Web server log
- Vulnerability scanner in use
Exploit announcement
- Monthly Microsoft patch release, Adobe PDF software update
Direct threats
- A hacking group doesn’t like you
An attack is underway
- Or an exploit is successful
Buffer overflow attempt
- Identified by an intrusion detection/prevention system
Anti-virus software identifies malware
- Deletes from OS and notifies administrator
Host-based monitor detects a configuration change
- Constantly monitors system files
Network traffic flows detect deviate from the norm
- Requires constant monitoring
Isolation and Containment
Generally a bad idea to let things run their course
- an incident can spread quickly
- It’s your fault at that point
Sandboxes
- An isolated OS
- Run malware and analyze the results
- Clean out the sandbox when done
Isolation can be sometimes be problematic
- Malware or infections can monitor connectivity
- When connectivity is lost, everything could be deleted/encrypted/damaged
Recovery after an Incident
Get things back to normal
- Remove the bad, keep the good
Eradicate the bug
- Remove malware
- Disable breached user accounts
- fix vulnerabilities
Recover the system
- Restore from backups
- Rebuild from scratch
- Replace compromised files
- Tighten down the perimeter
Lessons Learned
Learn and improve
Post-incident meeting
- Invite everyone affected by the incident
Don’t wait too long
- Memories fade over time
- Some recommendations can be applied to the next event
Answer the Tough Questions
What happened, exactly?
How did your incident plans work?
- Did the process operate successfully?
What would you do differently next time?
- Retrospective views provide context
Which indicators would you watch next time?
- Different precursors may give you better alerts
Training for an Incident
There is limited on-the-job training when a security event occurs
- Be ready when an incident is identified
Train the team prior to an incident
- Initial response
- Investigation plans
- Incident reporting
- And more
This can be an expensive endeavor
- Especially with larger response teams
Incident Planning
Exercising
Test yourselves before an actual event
- Scheduled update sessions (annual, semi-annual, etc.)
Use well-defined rules of engagement
- Do not touch the production systems
Very specific scenario
- Limited time to run the event
Evaluate response
Tabletop Exercises
Performing a full-scale disaster drill can be costly
Many of the logistics can be determined through analysis
- You don’t physically have to go through a disaster or drill
Get key players together for a tabletop exercise
- Talk through a simulated disaster
Simulation
Test with a simulated event
- Phishing attack, password requests, data breaches
Going phishing
- Create a phishing email attack
- Send to your actual user community
- See who bites
Test internal security
- Did the phishing get past the filter?
Test the users
- Who clicked?
- Additional training may be required
Root Cause Analysis
Determine the ultimate cause of an incident
- Find the root cause by asking “why”
Create a set of conclusions regarding the incident
Don’t get tunnel vision
- There can be more than a single root cause
Mistakes happen
- The response to the mistake is the difference
Threat Hunting
The constant game of cat and mouse
- Find the attacker before they find you
Strategies are constantly changing
- Firewalls get stronger, so phishing gets better
Intelligence data is reactive
- You can’t see the attack until it happens
Speed up the reaction time
Digital Forensics
Collect and protect information relating to an intrusion
- Many data sources and protection mechanisms
RFC 3227 — Guidelines for Evidence Collection and Archiving
- A good set of best practices
Standard digital forensic process
- Acquisition, analysis, and reporting
Must be detail oriented
Legal Hold
A legal technique to preserve relevant information
- Prepare for impending litigation
- Initiated by legal counsel
Hold notification
- Custodians are instructed to preserve data
Separate repository for electronically stored information (ESI)
- Many data sources and types
- Unique workflow and retention requirements
Ongoing preservation
- Once notified, there’s an ongoing obligation to preserve data
Chain of Custody
Control evidence
Everyone who contacts the evidence
- Use hashes and digital signatures
- Avoid tampering
Label and catalog everything
- Digitally tag all items for ongoing documentation
- Seal and store
Acquisition
Obtain the data
- Disk, RAM, firmware, OS files, etc.
Some data may not be on a single system
- Servers, network data, firewall logs
For virtual systems, get a snapshot
- Contains all files and information about a VM
Look for any left-behind digital items
- Artifacts
- Log information, recycle bins, browser bookmarks, saved logins, etc.
Reporting
Document the findings
- For internal use, legal proceedings, etc.
Summary information
- Overview of the security event
Detailed explanation of data acquisition
- Step-by-step method of the process
The findings
Conclusion
- Professional results, given the analysis
Preservation
Handling evidence
- Isolate and protect the data
- Analyze the data later without any alterations
Manage the collection process
- Work from copies
- Manage the data collection from mobile devices
Live collection has become an important skill
- Data may be encrypted or difficult to collect after powering down
Follow best practices to ensure admissibility of data in court
- What happens now affects the future
E-discovery
Electronic discovery
- Collect, prepare, review, interpret, and produce electronic documents
E-discovery gathers data required by the legal process
- Does not generally involve analysis
- There’s no consideration of intent
Works together with digital forensics
- The e-discovery process obtains a storage drive
- Data on the drive is smaller than expected
- Forensics experts determine that data was deleted and attempt to recover the data
Security Data Sources
Log Data
Security Log Files
Detailed security-related information
- Blocked and allowed traffic flows
- Exploit attempts
- Blocked URL categories
- DNS sinkhole traffic
Critical security information
- Documentation of every traffic flow
- Summary of attack info
- Correlate with other logs
Firewall logs
Traffic flows through the firewall
- Source/destination IP, port numbers, dispositions
Next Generation Firewalls (NGFW)
- Logs the application used, URL filtering categories, anomalies and suspicious data

Application Logs
Specific to the application
- Information varies widely
Windows
- Event Viewer/Application Log
Linux/macOS
Parse the log details on the SIEM
Endpoint Logs
Attackers often gain access to endpoints
- Phones, laptops, tablets, desktops, servers, etc.
There’s a lot of data on the endpoint
- Logon events, policy changes, system events, processes, account management, directory services, etc.
Everything rolls up to the SIEM
- Security Information and Event Manager
Use with correlation of security events
- Combine IPS events with endpoint status
OS-specific Security Logs
OS security events
- Monitoring apps
- Brute-force, files changes
- Authentication details
Find problems before they happen
- Brute force attacks
- Disabled services
May require filtering
IPS/IDS Logs
IPS/IDS
- Usually integrated into an NGFW
Logs contain information about predefined vulnerabilities
- Known OS vulnerabilities, generic security events
Common data points
- Timestamps
- Type or class of attack
- Source and destination IP
- Source and destination port

Network Logs
Switches, routers, access points, VPN concentrators
- And other infrastructure devices
Network changes
- Routing updates
- Authentication issues
- Network security issues

Metadata
- Data that describes other data sources
Email
- Header details, sending servers, destination address
Mobile
- Type of phone, GPS location
Web
- OS, browser type, IP address
Files
- Name, address, phone number, title

Vulnerability Scan
Lack of security controls
- No firewall
- No anti-virus
- No anti-malware
Misconfigurations
Real vulnerabilities
- Especially newer ones
- Occasionally the old ones
Automated Reports
Most SIEMs include a report generator
- Automate common security reports
May be easy or complex to create
- The SIEM may have its own report generator
- Third-party report generators may be able to access the database
Requires human intervention
- Someone has to read the reports
These can be involved to create
- Huge data storage and extensive processing time
Dashboards
Real-time status information
- Get summaries on a single screen
Add or remove information
- Most SIEMs and reporting systems allow for customization
Shows the most important data
- Not designed for long-term analysis

Packet Captures
Solve complex application issues
Gathers packets on the network
- Or in the air
- Sometimes built into the device
View detailed traffic information
- Identify unknown traffic
- Verify packet filtering and security controls
- View a plain-language description of the application data
Security Governance
Security Policies
Security Policies Guidelines
What rules are you following to provide CIA?
- Confidentiality, Integrity, and Availability
High level strategies
- Data storage requirements, security events procedures
Detailed security goals
- Appropriate Wi-Fi usage, requirements for remote access
Security policies answer the “what” and “why”
- Technical security controls answer the “how”
The big list of all security-related policies
- A centralized resource for processes
Compliance requirements
- Can be critical to an organization
Detailed security procedures
A list of roles and responsibilities
This is just words and letters
- An organization must enforce the policy
Acceptable Use Policies (AUP)
What is acceptable use of company assets?
- Detailed documentation
- May be documented in the Rules of Behavior
Covers many topics
- Internet use, telephones, computers, mobile devices, etc.
Used by an organization to limit legal liability
- If someone is dismissed, these are the well-documented reasons why
Business Continuity
Not everything goes according to plan
- Disasters can cause a disruption to the norm
We rely on our computer systems
There needs to be an alternative
- Manual transactions
- Paper receipts
- Phone calls for transaction approvals
These must be documented and tested before a problem occurs
Disaster Recovery Plan
If a disaster happens, IT should be ready
- Part of business continuity planning
- Keep the organization up and running
Disasters are many and varied
- Natural disasters
- Technology or system failures
- Human-created disasters
A comprehensive plan
- Recovery location
- Data recovery method
- Application restoration
- IT team and employee availability
Security Incidents
User clicks an email attachment and executes malware
- Malware then communicates with external servers
DDoS
Confidential information is stolen
- Thief wants money, or it goes public
Incident Response Roles
Incident response team
- Specialized group, trained and tested
IT security management
Compliance officers
- Intricate knowledge of compliance rules
Technical staff
- Your team in the trenches
User community
NIST SP800-61
National Institute of Standards and Technology
- NIST Special Publication 800-61 Revision 2
- Computer Security Incident Handling Guide
The incident response lifecycle
- Preparation
- Detection and Analysis
- Containment, Eradication, and Recovery
- Post-incident Activity
Software Development Lifecycle (SDLC)
Systems development life cycle
- Or application development life cycle
Many ways to get from idea to app
- And many moving parts
- Customer requirements
- Keep the process on schedule
- Stay in budget
There is no “best way”
- But it helps to have a framework
- There are many options

Change Management
How to make a change
- Upgrade software, change firewall configuration, modify switch ports
One of the most common risks in the enterprise
Often overlooked or ignored
Have clear policies
- Frequency, duration, installation process, fallback procedures
Sometimes extremely difficult to implement
- It’s hard to change organizational culture
Security Standards
A formal definition for using security technologies and processes
- Complete documentation reproduces security risk
- Everyone understands the expectations
These may be written in-house
- Your requirements may be unique
Many standards are already available
- ISO (International Organization for Standardization)
- NIST (National Institute of Standards and Technology)
Password
What makes a good password?
- Every organization has their own requirements
- Create a formal password complexity policy
Define acceptable authentication methods
- No local accounts, only LDAP to the AD database, etc.
Create policies for secure password resets
- Avoid unauthorized resets and access
Other password policies
- Password change frequency, secure password storage requirements, password manager options, etc.
Access Control
How does an organization control access to data?
- Determine which information, at what time
- And number which circumstances
Define which access control types can be used
- No discretionary, mandatory only, etc.
Determine how a user gets access
- Require privilege documentation
Document how access may be removed
- Security issues, expiration, contract renewals, etc.
Physical Security
Rules and policies regarding physical security controls
- Doors, building access, property security
Granting physical access
- Different for employees vs. visitors
Define specific physical security systems
- Electronic door locks, ongoing monitoring, motion detection, etc.
Additional security concerns
- Mandatory escorts, off-boarding, etc.
Encryption
Define specific standards for encrypting and securing data
- All things cryptographic
- Can include implementation standards
Password storage
Data encryption minimums
- Algorithms for data in use, data in transit, data at rest
- Will probably be different for each data state
Security Procedures
Change Management
A formal process for managing change
- Avoid downtime, confusion, and mistakes
Nothing changes without the process
- Determine the scope of the change
- Analyze the risk associated with the change
- Create a plan
- Get end-user approval
- Present the proposal to the change control board
- Have a backout plan if the change doesn’t work
- Document the changes
On-boarding
Bring a new person into the organization
IT agreements need to be signed
- May be part of the employee handbook or a separate AUP
Create accounts
- Associate the user with proper groups and departments
Provide required IT hardware
- Laptops, tablets, etc.
- Preconfigured and ready to go
Off-boarding
All good things…
- But you know this day would come
This process should be pre-planned
- You don’t want to decide how to do things at this point
What happens to the hardware?
What happens to the data?
Account information is usually deactivated
Playbooks
Conditional steps to follow; a broad process
- Investigate a data breach, recover from ransomware
Step-by-step set of processes and procedures
- A manual checklist
- Can be used to create automated activities
Often integrated with a SOAR platform
- Security Orchestration, Automation, and Response
- Integrate third-party tools and data sources
- Make security teams more effective
Monitoring and Revision
IT security is constantly changing
- Processes and procedures also must change
Update to security posture
- Tighter change control, additional playbooks
Change to individual procedure
- Update the playbooks, include additional checks
New security concerns
- Protect against emerging threats
Governance Structures
Boards
- A panel of specialists
- Sets the tasks or requirements for the committees
Committees
- Subject-matter experts
- Considers the input from a board
- Determines next steps for a topic at hand
- Presents the results to the board
Government entities
- A different kind of machine
- Legal concerns, administrative requirements, political issues
- Often open to public
Centralized/decentralized
- The source of the processes and procedures
- Centralized governance is located in one location with a group of decision makers
- Decentralized governance spreads the decision-making process around to other individuals or locations
Security Considerations
Regulatory
Regulations are often mandated
- Security processes are usually a foundational consideration
- Logging, data storage, data protection, and retention
Sarbanes-Oxley Act (SOX)
- The Public Company Accounting Reform and Investor Protection Act of 2002
The Health Insurance Portability and Accountability Act (HIPAA)
- Extensive healthcare standards for storage, use, and transmission of health care information
Legal
The security team is often tasked with legal responsibilities
- Reporting illegal activities
- Holding data required for legal proceedings
Security breach notifications
- A legal requirement in many jurisdictions
Cloud computing can make this challenging
- Data moves between jurisdictions without human intervention
- The security team must follow legal guidelines
Industry
The industry may require specific security considerations
- Every market is a bit different
Electrical power and public utilities
- Isolated and protected system controls
Medical
- Highly secure data storage and access logs
- Data encryption and protection
Geographical Security
Local/regional
- City and state government records
- Uptime and availability of end-user services
National
- Federal governments and national defense
- Multi-state organizations
- State secrets remain secret
Global
- Large multinational companies
- Global financial markets
- Legal concerns will vary widely
Data Roles and Responsibilities
Data Responsibilities
High-level data relationships
- Organizational responsibilities, not always technical
Data owner
- Accountable for specific data, often a senior officer
- VP of Sales owns the customer relationship data
- Treasurer owns the financial information
Date Roles
Data controller
- Manages the purposes and means by which personal data is processed
Data processor
- Processes data on behalf of the data controller
- Often a third-party or different group
Payroll controller and processor
- Payroll department (data controller) defines payroll amounts and timeframes
- Payroll company (data processor) processes payroll and stores employee information
Data custodian/steward
- Responsible for data accuracy, privacy, and security
Works directly with the data
- Associates sensitivity labels to the data
- Ensures compliance with any applicable laws and standards
- Manages the access rights to the data
- Implements security controls
Risk Management
Risk Management
Risk Identification
The only certainty is uncertainty
- Risk management helps to understand potential risks
- Identify weaknesses before they become an issue
An important part of any organization
- Growth brings risk
- It’s useful to get ahead of any potential problems
Risk management
- Manage potential risk
- Qualify internal and external threats
- Risk analysis helps plan for contingencies
Not all risk requires constant evaluation
- Or it might be required to always assess the amount of risk
One-time
- The assessment may be part of a one-time project
- Company acquisition, new equipment installation, unique new security threats, etc.
Continuous assessments
- May be part of an existing process
- Change control requires a risk assessment as part of the change
Ad HOC Assessment
An organization may not have a formal risk assessment process
- Perform an assessment when the situation requires
CEO is back from a conference
- Wants to know if the organization is protected from a new attack type
A committee is created, and the risk assessment proceeds
- Once the assessment is complete, the committee is disbanded
- There may not be a need to investigate this specific risk again
Recurring Assessment
Recurring assessments
- The evaluation occurs on standard intervals
An internal assessment
- Performed every three months at the beginning of the quarter
A mandated risk assessment
- Required by certain organizations
- Some legal requirements will mandate an assessment
- PCI DSS requires annual risk assessments
Risk Analysis
Qualitative Risk Assessment
Identify significant risk factors
- Ask opinions about the significance
- Display visually with traffic light grid or similar method

ARO (Annualized Rate of Occurrence)
- How likely is that a hurricane will hit? In Montana? In Florida?
Asset value (AV)
- The value of asset to the organization
- Includes the cost of the asset, the effect of company sales, potential regulatory fines, etc.
Exposure factor (EF)
- The percentage of the value lost due to an incident
- Losing a quarter of the value is
.25
- Losing the entire asset is
1.0
SLE (Single Loss Expectancy)
- What is the monetary loss if a single event occurs?
Asset value (AV) x Exposure factor (EF)
Laptop stolen = $1000 (AV) x 1.0 (EF) = $1000 (SLE)
ALE (Annualized Loss Expectancy)
Annualized Rate of Occurrence (ARO) x SLE
Seven laptops stolen a year (ARO) x $1000 (SLE) = $7000
The business impact can be more than monetary
Quantitative vs. qualitative
Impact
Life
- The most important consideration
Property
- The risk to buildings and assets
Safety
- Some environments are too dangerous to work
Finance
- The resulting financial cost
Likelihood and Probability
Risk likelihood
- A qualitative measurement of risk
- Rare, possible, almost certain, etc.
Risk probability
- A quantitative measurement of risk
- A statistical measurement
- Can be used based on historical performance
Often considered similar in scope
- Can be used interchangeably in casual conversation

Risk Appetite and Tolerance
Risk appetite
- A broad description of risk-taking deemed acceptable
- The amount of accepted risk before taking any action to reduce that risk
Risk appetite posture
- Qualitative description for readiness to take risk
- Conservative, neutral, and expansionary
Risk tolerance
- An acceptable variance (usually larger) from the risk appetite
Risk appetite example:
- A highway’s speed limit
- Government authorities have set the speed limit
- The limit is an acceptable balance between safety and convenience
Risk tolerance example:
- Drivers will be ticketed when the speed limit is violated
- Ticketing usually occurs well above the posted limit
- This tolerance can change with road conditions, weather, traffic, etc.
Risk Register
Every project has a plan, but also has risk
- Identify and document the risk associated with each step
- Apply possible solutions to the identified risks
- Monitor the results
Key risk indicators
- Identify risks that could impact the organization
Risk owners
- Each indicator is assigned someone to manage the risk
Risk threshold
- The cost of mitigation is at least equal to the value gained by mitigation

Risk Management Strategies
Accept with exemption
- A security policy or regulation cannot be followed
- May be based on available security controls, size of the organization, total assets, etc.
- Exemption may need approval
Accept with exception
- Internal security policies are not applied
- Monthly security updates must be applied within 3 calendar days
- The monthly updates cause a critical software package to crash
- An exception is made to the update timeframe
Avoid
- Stop participating in a high-risk activity
- This effectively removes the risk
Mitigate
- Decrease the risk level
- Invest in security systems
Risk Reporting
A formal document
- Identifies risk
- Detailed information for each risk
Usually created for senior management
- Make decisions regarding resources, budgeting, additional security tasks
Commonly includes critical and emerging risks
- The most important consideration
Business Impact Analysis
Recovery
Recovery time objective (RTO)
- Get up and running quickly
- Get back to a particular service level
- You’re not up and running until the database and web server are operational
- How long did that take?
Recovery point objective (RPO)
- How much data loss is acceptable?
- Bring the system back online; how far back does data go?
- The database is up, but only provides the last twelve months of data
Meantime to repair (MTTR)
- Average time required to fix an issue
- This includes time spent diagnosing the problem
- An important metric for determining the cost and time associated with unplanned outages
Mean time between failures (MTBF)
- The time between outages
- Can be used as a prediction or calculated based on historical performance
Total Uptime/Number of Breakdowns
- Statistically plan for possible outages
Third Party Risk
Third-party Risk Assessment
Every organization works with vendors
- Payroll, customer relationship management, email marketing, travel, raw materials
Important company data is often shared
- May be required for cloud-based services
Perform a risk assessment
- Categorize risk by vendor and manage the risk
Use contracts for clear understanding
- Make sure everyone understands the expectations
- Use the contract to enforce a secure environment
Penetration Testing
Pentest
Similar to vulnerability scanning
- Except we actually try to exploit the vulnerabilities
Often a compliance mandate
- May include a legal requirement
Regular penetration testing by a 3rd-party
- Very specialized
- Third-party experts are well-versed
Rules of Engagement
An important document
- Defines purpose and scope
- Makes everyone aware of the test parameters
Type of testing and schedule
- On-site physical breach, internal test, external test
- Normal working hours, after 6 PM only, etc.
The rules
- IP address ranges
- Emergency contacts
- How to handle sensitive information
- In-scope and out-of-scope devices or applications
Right-to-audit Clauses
Common to work business partners
Third-party providers
- Can hold all the data
- Manage internet access
- Are they secure?
Right-to-audit should be in the contract
- A legal agreement to have the option to perform a security audit at any time
- Everyone agrees to the terms and conditions
- Ability to verify security before a breach occurs
Evidence of Internal Audit
Evaluate the effectiveness of security controls
- Have a third party perform an audit
May be required for compliance
- It’s a good idea, even without industry standards
Check for security controls and processes
- Access management, off boarding, password security, VPN controls, etc.
- There’s always an opportunity for improvement
Perform at a reasonable frequency
- A single audit isn’t very helpful in the long-term
Supply Chain Analysis
The system involved when creating a product
- Involves organizations, people, activities, and resources
Supply chain analysis
- Get a product or service from supplier to customer
- Evaluate coordination between groups
- identify areas of improvement
- Assess the IT systems supporting the operation
- Document the business process changes
Software update installs malware: March-June 2020
- Announced December 2020 by SolarWinds
- Malware deployed with a valid SolarWinds digital signature
- At least 18,000 of 300,000 customers potentially impacted
Independent Assessments
Bring in a smart person or team to evaluate security and provide recommendations
Specialists in their field
- They do this all day, every day
They’ve seen it all
- And can provide options you may not have considered
Vendor Selection Process
Due diligence
- Check a company out before doing business
- Investigate and verify information
- Financial status, pending or past legal issues, etc.
- Background checks, personnel interviews
Conflict of interest
- A personal interest could compromise judgment
- A potential partner also does business with your largest competitor
- A third-party employs the brother of the CFO
- A third-party offers gifts if a contract is signed
Vendor Monitoring
Ongoing management of the vendor relationship
- This doesn’t end when the contract is signed
Reviews should occur on a regular basis
- Financial health check, IT security reviews, news articles, social media posts
Different vendors may be checked for different indicators
- Quantitative and qualitative analysis
Assign a person to be in charge of the vendor relationship
- They will manage the monitoring process
Questionnaires
An important part of due diligence and ongoing vendor monitoring
- Get answers directly from the vendor
Security-related questions
- What is the vendor’s due diligence process?
- What plans are in place for disaster recovery?
- What secure storage method is used for company data?
- And more
Results are used to update a vendor risk analysis
- Updated during the life of the vendor relationship
Agreement Types
Common Agreements
Service Level Agreement (SLA)
- Minimum terms for services provided
- Uptime, response time agreement, etc.
- Commonly used between customers and service providers
Contract with an Internet provider
- SLA is no more than four hours of unscheduled downtime
- Technician will be dispatched
- May require customer to keep spare equipment on-site
Memorandum of Understanding (MOU)
- Both sides agree in general to the contents of the memorandum
- Usually states common goals, but not much more
- May include statements of confidentiality
- Informal letter of intent; not a signed contract
Memorandum of Agreement (MOA)
- The next step above a MOU
- Both sides conditionally agree to the objectives
- Can also be a legal document, even without legal language
- Unlike a contract, may not contain legally enforceable promises
Master Service Agreement (MSA)
- Legal contract and agreement of terms
- A broad framework to cover later transactions
- Many detailed negotiations happen here
- Future projects will be based on this agreement
Work order (WO)/Statement of Work (SOW)
- Specific list of items to be completed
- Used in conjunction with an MSA
- Details the scope of the job, location, deliverables schedule, acceptance criteria, and more
- Was the job done properly? Let’s refer to the SOW.
Business Partners Agreement (BPA)
- Going into business together
- Owner stake
- Financial contract
Decision-making
- Who makes the business decisions?
- The BPA lists specific individuals and scope
Prepare for contingencies
- Financial issues
- Disaster recovery
Non-disclosure Agreement (NDA)
Confidentiality agreement between parties
- Information in the agreement should not be disclosed
Protects confidential information
- Trade secrets
- Business activities
- Anything else listed in the NDA
Unilateral or bilateral (or multilateral)
- One-way NDA or mutual NDA
Formal contract
- Signatures are usually required
Security Compliance
Compliance
Compliance
- Meeting the standards of laws, policies, and regulations
A healthy catalog of rules
- Across many aspects of business and life
- Many are industry-specific or situational
Penalties
- Fines, loss of employment, incarceration
Scope
- Domestic and international requirements
Compliance Reporting
Internal
- Monitor and report on organizational compliance efforts
- Large organizations have a Central Compliance Officer (CCO)
- Also used to provide details to customers or potential investors
External
- Documentation required by external or industry regulators
- May require annual or ongoing reporting
- Missing or invalid reporting could result in fines and/or sanctions
Regulatory Compliance
Sarbanes-Oxley Act (SOX)
- The Public Company Accounting Reform and Investor Protection Act of 20002
The Health Insurance Portability and Accountability Act (HIPAA)
- Extensive healthcare standards for storage, use, and transmission of health care information
The Gramm-Leach-Bliley Act of 1999 (GLBA)
- Disclosure of privacy information from financial institutions
HIPAA Non-Compliance Fines and Sanctions
↵ Fine of up to $50,000, or up to 1 year in prison, or both; (Class 6 Felony)
↵ Under false pretenses; a fine of up to $100,000, up to 5 years in prison, or both; (Class 5 Felony)
↵ Intent to sell, transfer, or use individually identifiable health information for commercial advantage, personal gain, or malicious harm, a fine up to $250,000, or up to 10 years in prison, or both; (Class 4 Felony)
↵ Civil fines; maximum is $100 for each violation, with the total amount not to exceed $25,000 for all violations of an identical requirement or prohibition during a calendar year; (Class 3 Felony)
Reputational Damage
Getting hacked isn’t a great look
- Organizations are often required to disclose
- Stock prices drop, at least for the short term
October 2016 — Uber Breach
- 25.6 million Names, email addresses, mobile phone numbers
Didn’t publicly announce it until November 2017
- Allegedly paid the hackers $100,000 and had them sign an NDA
- 2018 — Uber paid $148 million in fines
Hackers pleaded guilty in October 2019
- May 2023 — Uber’s former Chief Security Officer sentenced
- Three years probation and a $50,000 fine
Other Consequences
Loss of license
- Significant economic sanction
- Organization cannot sell products
- Other cannot purchase from a sanctioned company
- May be expensive to re-license
Contractual impacts
- Some business deals may require a minimum compliance level
- Without compliance, the contract may be in breach
- May be resolved with or without a court of law
Compliance Monitoring
Compliance monitoring
- Ensure compliance in day-to-day operations
Due diligence/care
- A duty to act honestly and in good faith
- Investigate and verify
- Due care tends to refer to internal activities
- Due diligence is often associated with third-party activities
Attestation and acknowledgement
- Someone must “sign off” on formal compliance documentation
- Ultimately responsible if the documentation is incorrect
Internal and external
- Monitor compliance with internal tools
- Provide access or information to third-party participants
- May require ongoing monitoring of third-party operations
Automation
- A must-have for large organizations
- Can be quite different across vertical markets
- Many third-party monitoring systems
- Collect data from people and systems
- Compile the data and report
Privacy
Privacy legal implications
A constantly evolving set of guidelines
- We are all concerned about privacy
Local/regional
- State and local governments set privacy limits
- Legal information, vehicle registration details, medical licensing
National
- Privacy laws for everyone in a country
- HIPAA, online privacy for children under 13, act.
Global
- Many countries are working together for privacy
GDPR — General Data Protection Regulation
European Union Regulation
- Data protection and privacy for individuals in the EU
- Name, address, photo, email address, bank details, posts on social networking websites, medical information, a computer’s IP address, etc.
Controls export of personal data
- Users can decide where their data goes
- Can request removal of data from search engines
Gives “data subjects” control of their personal data
Data Subject
Any information relating to an identified or identifiable person
- An individual with personal data
This includes everyone
- Name, ID number, address information, genetic makeup, physical characteristics, location, etc.
- You are the data subject
Laws and regulations
- Privacy is ideally defined from the perspective of the data subject
Data Responsibilities
High-level data relationships
- Organizational responsibilities, not always technical
Data owner
- Accountable for specific data, often a senior officer
- VP of Sales owns the customer relationship data
- Treasurer owns the financial information
Data Roles
Data controller
- Manages the purposes and means by which personal data is processed
Data processor
- Processes data on behalf of the data controller
- Often a third-party or different group
Payroll controller and processor
- Payroll department (data controller) defines payroll amounts and timeframes
- Payroll company (data processor) processes payroll and stores employee information
Data Inventory and Retention
What data does your organization store?
- You should document your data inventory
Data inventory
- A listing of all managed data
- Owner, update frequency, format of the data
Internal use
- Project collaboration, IT security, data quality checks
External use
- Select data to share publicly
- Follow existing laws and regulations
Audits and Assessments
Audits and Assessments
Not just for taxes
- There are good reasons to audit your technology
Cybersecurity audit
- Examines the IT infrastructure, software, devices, etc.
- Checks for effectiveness of policies and procedures
- Find vulnerabilities before the attackers
- Can be performed internally or by a third party
Attestation
- Provides an opinion of truth or accuracy of a company’s security positioning
- An auditor will attest to a company’s cybersecurity posture
Internal Audits
Audits aren’t just for third-parties
- You should also have internal audits
Compliance
- Is your organization complying with regulatory or industry requirements?
Audit committee
- Oversees risk management activities
- All audits start and stop with the committee
Self-assessments
- Have the organization perform their own checks
- Consolidate the self-assessments into ongoing reports
External Audits
Regulatory requirements
- An independent third-party may be required to perform the audit
- Audit type and frequency are often based on the regulation
Examinations
- Audits will often require hands-on research
- View records, compile reports, gather additional details
Assessment
- Audit will assess current activities
- May also provide recommendation for future improvements
Penetration Tests
Physical Penetration Testing
OS security can be circumvented by physical means
- Modify the boot process
- Boot from other media
- Modify or replace OS files
Physical security is key
- Prevent access by unauthorized individuals
Assess and test physical security
- Can you enter a building without a key?
- What access is available inside?
- Doors, windows, elevators, physical security processes
Pentesting Perspectives
Offensive
- The red team
- Attack the systems and look for vulnerabilities to exploit
Defensive
- The blue team
- Identify attacks in real-time
- Prevent any unauthorized access
Integrated
- Create an ongoing process
- Identify and patch exploitable systems and services
- Test again
Working Knowledge
How much do you know about the test?
Known environment
Partially known environment
- A mix of known and unknown
- Focus on certain systems or applications
Unknown environment
- The pentester knows nothing about the systems under attack
- “Blind” test
Reconnaissance
Need information before the attack
- Can’t rush blindly into battle
Gathering a digital footprint
Understand the security posture
- Firewalls, security configuration
Minimize the attack area
Create a network map
- Identify routers, networks, remote sites
Passive Reconnaissance
↻ Learn as much as you can from open sources
- There’s a lot of information out there
- Remarkably difficult to protect or identify
↻ Social media
↻ Corporate website
↻ Online forums, Reddit
↻ Social Engineering
↻ Dumpster diving
↻ Business organizations
Active Reconnaissance
↻ Trying the doors
- Maybe one is unlocked
- Don’t open it yet
- Relatively easy to be seen
↻ Visible on network traffic and logs
↻ Ping scans, port scans
↻ DNS scans, OS fingerprinting
↻ Service scans, version scans
Security Awareness
Security Awareness
Phishing Campaigns
How many employees would click a link in a phishing email
Many companies will perform their own phishing campaign
- Send a phishing email to your employees
An automated process
- Centralized reporting for incorrect clicks
- Users can receive immediate feedback and security training
- Some organizations will schedule in-person training
Recognize a phishing attempt
- Spelling and grammatical errors
- Domain name and email inconsistencies
- Unusual attachments
- Request for personal information
Tip
With the rise of Large language models, phishing campaigns has become more sophisticated and personalized.
Respond to reported suspicious messages
- Email filtering can get the worst offenders
- Never click a link in an email
- Never run an attachment from an email
- All organizations should have a process for reporting phishing

Anomalous Behavior Recognition
Risky behavior
- Modifying hosts file
- Replacing a core OS file
- Uploading sensitive files
Unexpected behavior
- Logon from another country
- Increase in data transfers
Unintentional behavior
- Typing the wrong domain name
- Misplacing USB drives
- Misconfiguring security settings
Reporting and Monitoring
Track and analyze security awareness metrics
- Automated
- Phishing click rates
- Password manager adoption, MFA use, password sharing
Initial
- First occurrence is an opportunity for user training
- Work towards avoiding the issue in the future
Recurring
- The value of long-term monitoring
- Identify high-frequency security issues
- Help users with multiple occurrences
Development
Create a Security Awareness team
- Determine roles for training, monitoring, policy creation, etc.
Establish a minimum awareness level
- Information delivery (emails, posters, notices, training)
- Depth of training based on job function
Integrate compliance mandates
- PCI DSS, HIPAA, GDPR, etc.
Define metrics
- Assess the performance of security awareness programs
- Make updates in lower-performance areas
Execution
Create the training materials
- Provided to users in different forms
Document success measurements
- How will we know the awareness is working?
Identify the stakeholders
- Provide ongoing metrics and performance data
Deploy the training material
- Classroom training, posters, weekly emails, etc.
Track user training efforts
- Ongoing monitoring, usually with an automated reporting system
User Training
Security Awareness Training
Before providing access, train your users
- Detailed security requirements
Specialized training
- Each user role has unique security responsibilities
Also applies to third-parties
- Contractors, partners, suppliers
Detailed documentation and records
- Problems later can be severe for everyone
User Guidance and Training
Policy/handbooks
- Document all security requirements
- Provide access online in policy guidelines
- Reference the policies in the employee handbook
Situational awareness
- Users should always be looking for threats
- Software attacks: Email links, attachments, unusual URLs, text messages, etc.
- Physical Attacks: USB drives in a FedEx envelope, unlocked building doors, etc.
- Be ready for anything
Insider threat
- Difficult to guard against
- Add multiple approvals for critical processes
- Monitor files and systems as much as possible
Password management
- Many standards to choose from
- Guide users with standard requirements (length, complexity, etc.)
- This is often controlled using technology (Group Policy)
Removable media and cables
- Unknown USB drives can contain malware
- Unknown cables can be malicious
Social engineering
- Extensive and ongoing training
- The attackers are very good
- The users are your front line defense
Operational security
- View security from the attacker’s perspective
- Users need to identify sensitive data
- Keep the sensitive data private
Hybrid/remote work environments
- Working at home brings unusual security risks
- No access to family and friends
- Additional endpoint security
- Security policies for VPN access
