Wireless Devices

Wireless Technologies

IEEE standards

  • Institute of Electrical and Electronics Engineers
  • 802.11 committee
  • Everyone follows these standards

Also referenced as a generation

  • 802.11ac is Wi-Fi 5
  • 802.11ax is Wi-Fi 6 and Wi-Fi 6E (extended)
  • 802.11be is Wi-Fi 7
  • Future versions will increment accordingly

Frequencies

  • 2.4 GHz, 5 GHz, and 6GHz
  • Sometimes a combination

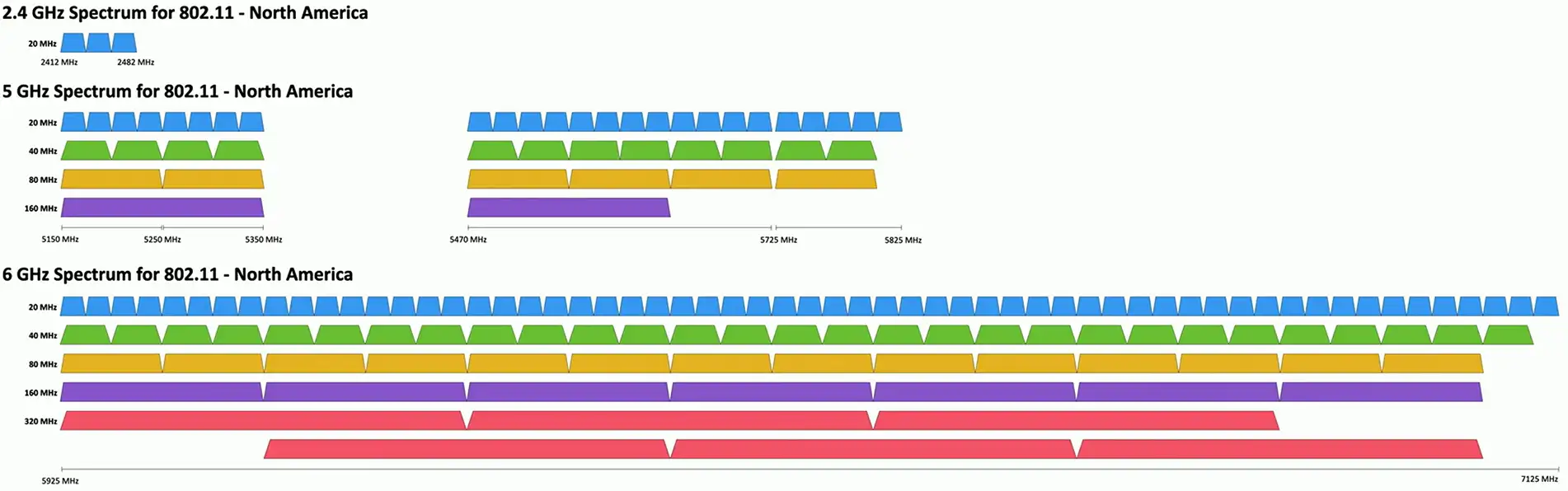

Channels

  • Groups of frequencies, numbered by the IEEE
  • Using non-overlapping channels would be optimal

Bandwidth

  • Amount of frequency in use
  • 20 MHz, 40 MHz, 80 MHz, 160 MHz

Band Selection and Bandwidth

Band steering

Many frequencies to choose from

  • Not all of them are optimal

Some devices may only use one frequency

  • Older devices, specialized systems, etc.

Other devices may have a choice

  • 2.4 GHz, 5 GHz, or 6 GHz

Use band steering to direct clients to the best frequency

  • 2.4 GHz and 5 GHz without band steering = strongest frequency
  • 2.4 GHz and 5 GHz with band steering = 5 GHz connection

Regulatory Impacts

Managing the wireless spectrum is a challenge

  • Individuals, companies, organizations, countries

The world is constantly changing

  • Frequency allocations can be fluid

Industry standards are also often worldwide standards

  • We all have to work together

IEEE 802.11h standard

  • Add interoperability features to 802.11

The 802.11h standard

802.11 wireless complies with ITU guidelines

  • A worldwide approach
  • Now part of the 802.11 standard

DFS (Dynamic Frequency Selection)

  • Avoid frequency conflict
  • Access point can switch to an unused frequency
  • Clients move with the access point

TPC (Transmit Power Control)

  • Avoid conflict with satellite services
  • Access point determines power output of the client

Wireless Networking

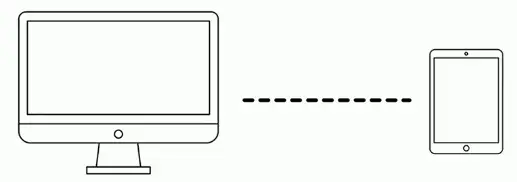

Independent Basic Service Set (IBSS)

Two devices communicate directly to each other using 802.11

  • No access point required

Ad hoc

  • Created for a particular purpose without any previous planning
  • Without an AP

Temporary or long-term communication

  • Connect to a device with an ad hoc connection
  • Configure it with the access point settings and credentials

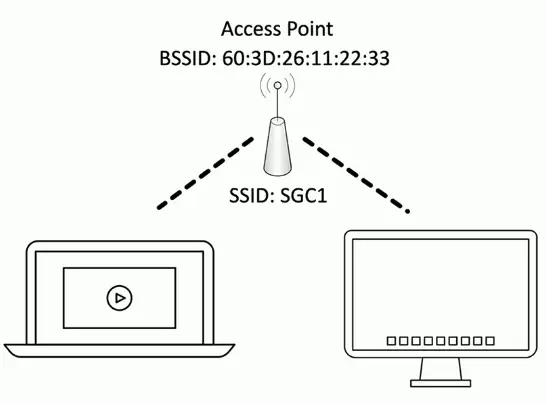

SSID and BSSID

Every wireless network needs a name

  • SSID (Service Set Identifier)

There might be multiple access points supporting an SSID

  • How does your computer tell them apart?
  • The hardware address of an access point is a BSSID (Basic Service Set Identifier)
  • The MAC (Media Access Control) address

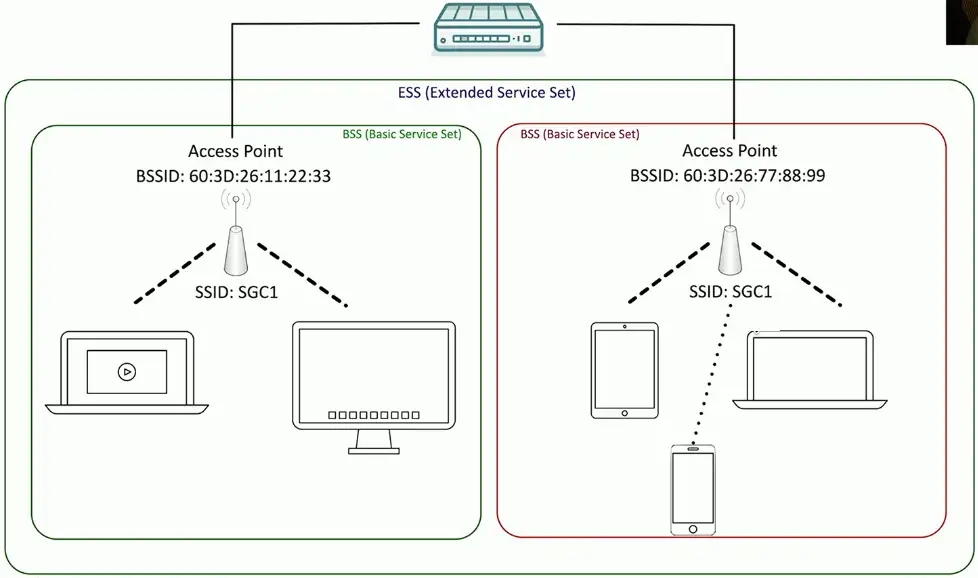

Extending the network

Most organizations have more than one access point

  • Tens or hundreds

Wireless network names can be used across access points

  • Makes it easier to roam from one part of the network to another

The network name shared across access points is an ESSID

  • Extended Service Set Identifier

Your device automatically roams when moving between access points

  • You don’t have to manually reconnect

ESSID (Extended Service Set Identifier)

Captive Portal

Authentication to a network

  • Common on wireless network

Access table recognizes a lack of authentication

  • Redirects your web access to a captive portal page

Username/Password

  • And additional authentication factors

Once proper authentication is provided, the web session continues

  • Until the captive portal removes your access (could be 24h timer)

Wireless Security modes

Configure the authentication on your wireless access point/wireless router

Open system

  • No authentication password is required

WPA/2/3-Personal/WPA/2/3-PSK

  • WPA2 or WPA3 with a pre-shared key
  • Everyone uses the same 256-bit key

WPA/2/3-Enterprise/WPA/2/3-802.1X

  • Authenticates users individually with an authentication server (i.e., RADIUS, LDAP, etc.)

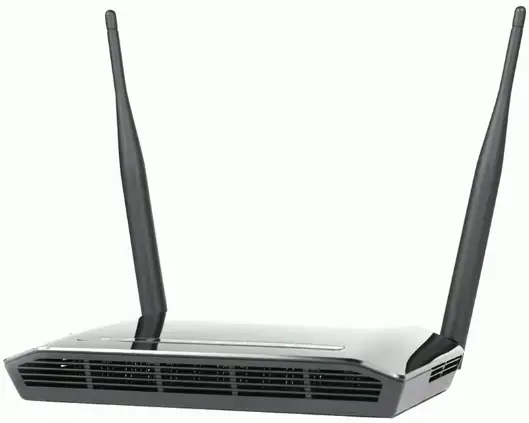

Omnidirectional Antennas

One of the most common

  • Included on most access points

Signal is evenly distributed on all sides

  • Omni = all

Good choice for most environments

  • You need coverage in all directions

No ability to focus the signal

  • A different antenna will be required

Directional Antennas

Focus the signal

  • Increased distances

Send and receive in a single direction

  • Focused transmission and listening

Antenna performance is measured in dB

  • Double power every 3dB of gain

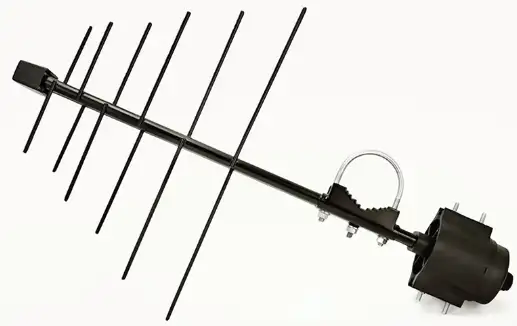

Yagi antenna

  • Very directional and high gain

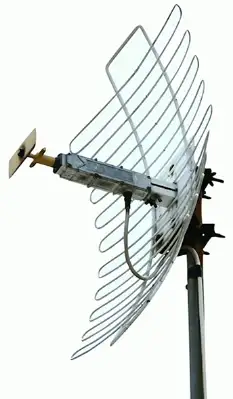

Parabolic antenna

  • Focus the signal to a single point

Managing Wireless Configurations

Autonomous access points

  • The access point handles most wireless tasks
  • The switch is not wireless-aware

Lightweight access points

  • Just enough to be 802.11 wireless
  • The intelligence is in the switch
  • Less expensive

Control and provision

  • CAPWAP is an RFC standard
  • Control and Provisioning of Wireless Access Points
  • Manage multiple access points simultaneously

Wireless LAN Controllers

Centralized management of access points

  • A single “pane of glass”

Deploy new access points

Performance and security monitoring

Configure and deploy changes to all sites

Report on access point use

Usually a proprietary system

  • The wireless controller is paired with the access point

Network Types

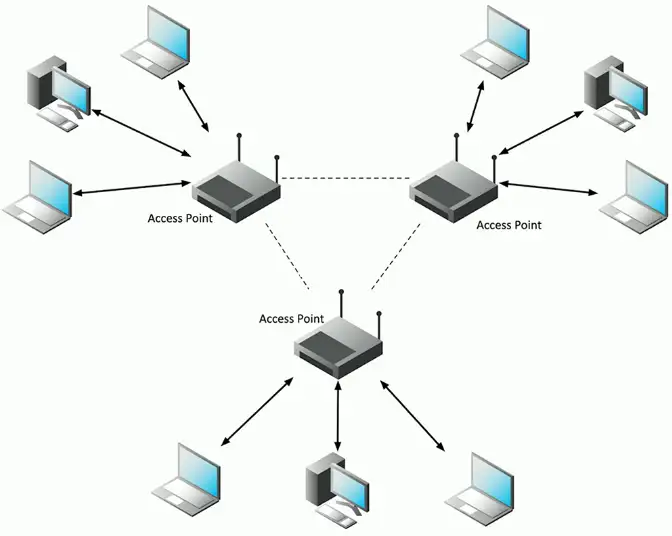

Wireless mesh

Multiple access points

  • Access points bridge the gap
  • Clients across an extended distance can communicate with each other

Ad hoc devices work together to form a mesh “cloud”

  • Self form and self-heal

Ad hoc mode

Ad hoc

  • Created for a particular purpose without any previous planning
  • Without an AP

Two devices communicate directly to each other using 802.11

  • No access point required
  • Independent basic service set (IBSS)

Temporary or long-term communication

  • Connect to a device with an ad hoc connection
  • Configure it with the access point settings and credentials

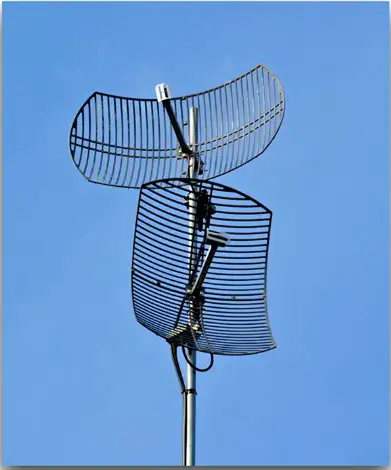

Point to point mode

Connect two access points together

  • Extend a wired network over a distance
  • Building to building
  • Site to site

May require specialized wireless equipment

  • Outdoor antennas and access point
  • Power adjustments
  • Frequency options

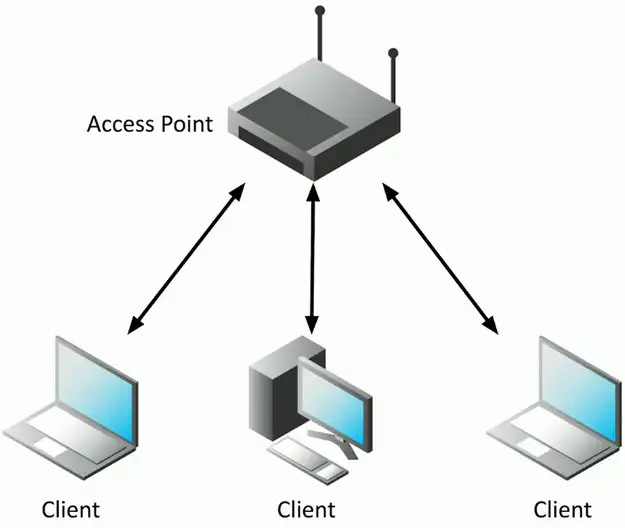

Infrastructure mode

Clients communicate to an access point

  • Access point forwards traffic

Clients can communicate to a wired network

  • Access point bridges the networks

Clients can communicate to each other

  • If the access point allows

Wireless Encryption

Securing a wireless network

An organization’s wireless network can contain confidential information

  • Not everyone is allowed access

Authenticate the users before granting access

  • Who gets access to the wireless network?
  • Username, password, multifactor authentication

Ensure that all communication is confidential

  • Encrypt the wireless data

Verify the integrity of all communication

  • The received data should be identical to the original sent data
  • A message integrity check (MIC)

WPA (Wi-Fi Protected Access)

2002: WPA was the replacement for serious cryptographic weaknesses in WEP (Wired Equivalent Privacy)

  • Don’t use WEP

Needed a short-term bridge between WEP and whatever would be the successor

  • Run on existing hardware

WPA2 and CCMP

Wi-Fi Protected Access II (WPA2)

  • WPA2 certification began in 2004

CCMP block cipher mode

  • Counter Mode with Cipher Block Chaining Message Authentication Code Protocol, or Counter/CBC-MAC Protocol

CCMP security services

  • Data confidentiality with AES encryption
  • Message Integrity Check (MIC) with CBC-MAC

WPA3 and GCMP

Wi-Fi Protected Access 3 (WPA3)

  • introduced in 2018

GCMP block cipher mode

  • Galois/Counter Mode Protocol
  • A stronger encryption than WPA2

GCMP security services

  • Data confidentiality with AES
  • Message Integrity Check (MIC) with Galois Message Authentication Code (GMAC)
