Network Access

VPNs

Virtual Private Networks

  • Encrypted (private) data transversing a public network

Concentrator

  • Encryption/Decryption access device
  • Often integrated into a firewall

Many deployment options

  • Specialized cryptographic hardware
  • Software-based options available

Used with client software

  • Sometimes built into the OS

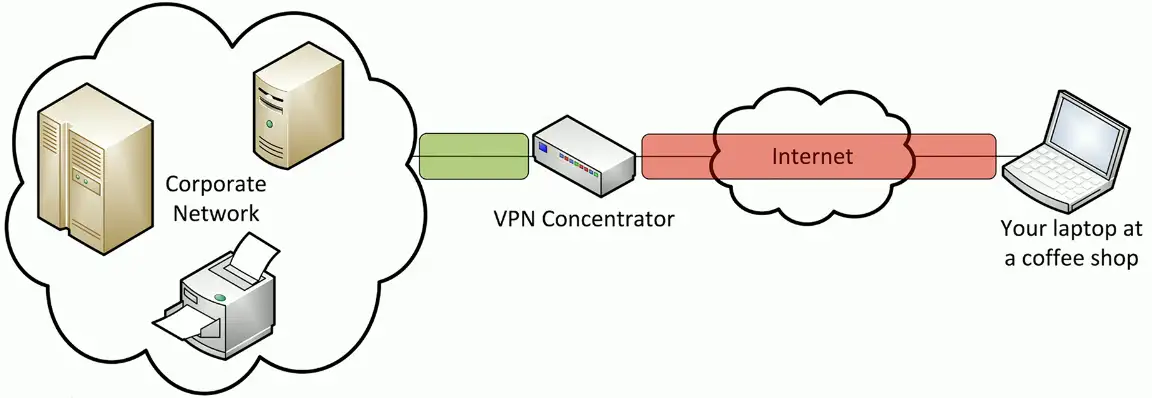

Client-to-site VPN

On-demand access from a remote device

  • Software connects to a VPN concentrator

Some software can be configured as always-on

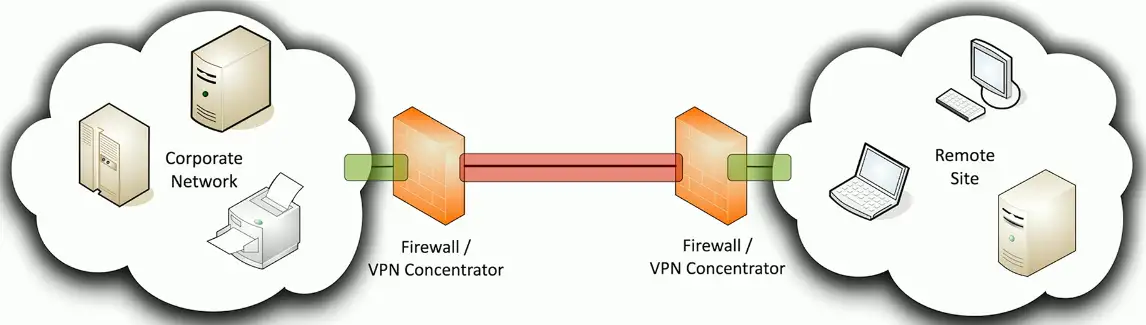

Site-to-site VPN

Always-on

  • Or almost always

Firewalls often act as VPN concentrators

  • Probably already have firewalls in place

Clientless VPNs

HyperText Markup Language version 5

  • The language commonly used in web browsers

Includes comprehensive API support

  • Application Programming Interface
  • Web cryptography API

Create a VPN tunnel without a separate VPN application

  • Nothing to install

Use an HTML5 compliant browser

  • Communicate directly to the VPN concentrator

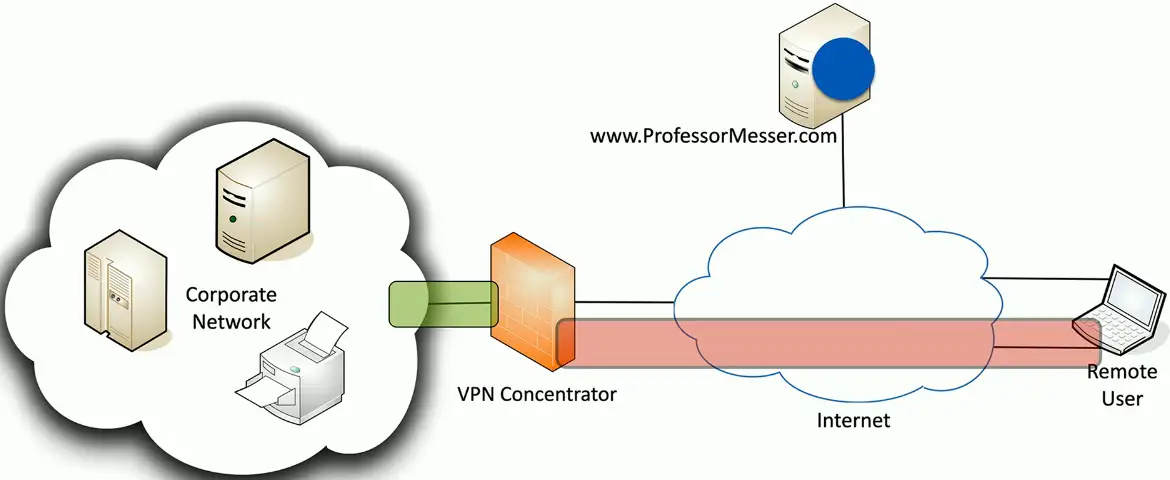

Split Tunnel vs. Full Tunnel

Full Tunnel

  • All traffic is sent through the VPN tunnel
  • The client makes no additional forwarding decisions
  • May require additional routing at the concentrator

Split Tunnel

  • VPN traffic is sent through the tunnel
  • Non-VPN traffic is sent normally
  • Configured in the VPN software

Remote Access

SSH (Secure Shell)

Encrypted console communication - tcp/22

Looks and acts the same as Telnet - tcp/23

Graphical User Interface (GUI)

Share a desktop from a remote location

  • It’s like you’re right there

RDP (Microsoft Remote Desktop Protocol)

  • Clients for macOS, Linux, and others as well

VNC (Virtual Network Computing)

  • Remote Frame Buffer (RFB) protocol
  • Clients for many OSes
  • Many are open source

Commonly used for technical support

  • And for scammers

API Integration

Control and manage devices

  • Hundreds of firewall, routers, switches, and servers
  • Log in to each device and make changes manually

Automate the command line

  • Bath processes
  • Very little control or error handling

Application programming interfaces (APIs)

  • Interact with third-party devices and services
  • Cloud services, firewalls, operating systems
  • Talk their language

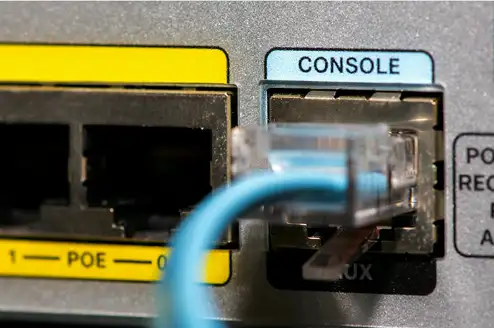

Console

Directly connect to the device

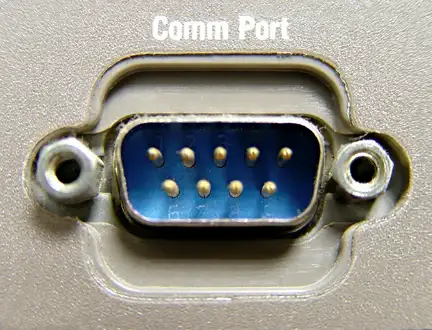

  • Traditionally a serial connection
  • DB9 connector, RJ45 serial, USB connection

When all else fails

  • The console will be available

A text-based serial interface

  • The console

Requires a serial or USB connection

  • May need a USB to DB9 serial adapter

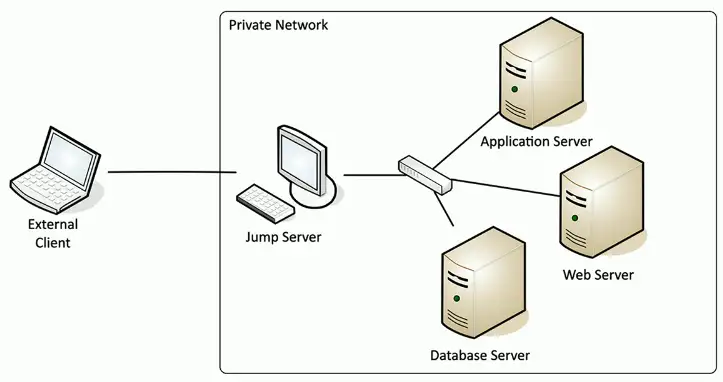

Jump-Box

Access secure network zones

  • Provides an access mechanism to a protected network

Highly-secured device

  • Hardened and monitored

SSH/Tunnel/VPN to the jump server

  • RDP, SSH, or jump from there

A significant security concern

  • Compromise of the jump server is a significant breach

In-band Management

Assign an IP address to a device

  • Switch, router, firewall, etc.

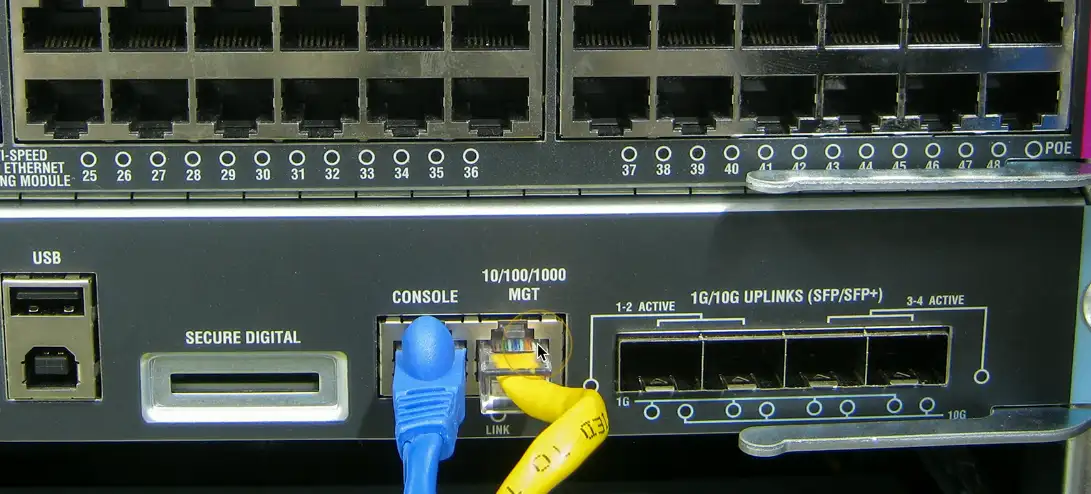

Maybe a separate Ethernet interface

  • Often marked on the device

May be accessible from any connected device

  • The IP address is inside the device

Access the device

  • SSH
  • Browser-based console

Out-of-band management

The network isn’t available

  • Or the device isn’t accessible from the network

Most devices have a separate management interface

  • Usually a serial connection/USB

Connect a modem to manage

  • Or cable, DSL, satellite, etc.

Console router/ comm server

  • Out-of-band access for multiple devices
  • Connect to the console router, then choose where you want to go
