Tools and Protocols

Software Tools

Protocol Analyzers

Solve complex application issues

• Get into the details

Gathers frames on the network

• Or in the air
• Sometimes built into the device

View traffic patterns

• Identify unknown traffic
• Verify packet filtering and security controls

Large scale storage

• Big data analytics

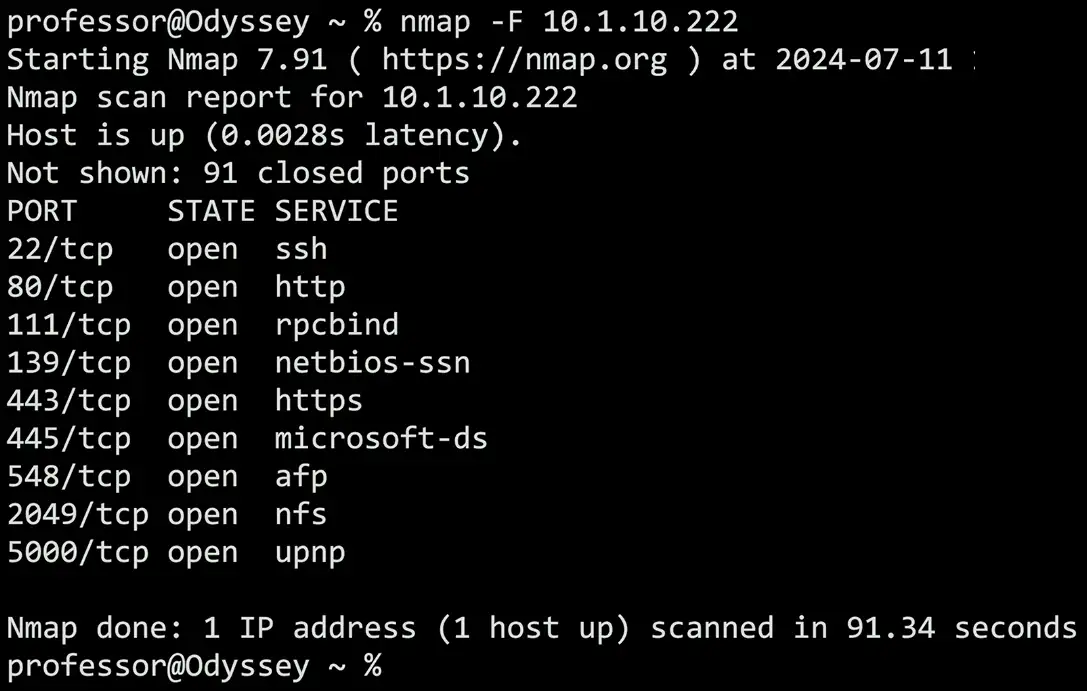

Nmap

Network mapper

• Find and learn more about network devices

Port scan

• Find devices and identify open ports

Operating system scan

• Discover the OS without logging in to a device

Service scan

• What service is available on a device? Name, version, details

Additional scripts

• Nmap Scripting Engine (NSE) — extend capabilities, vulnerability scans

Active — scan for IP addresses and open ports

• And OSes, services, etc.

Pick a range of IP addresses

• See who responds to the scan

Visually map the network

• Gather information on each device
• IP, OS, services, etc.

Rogue system detection

• It’s difficult to hide from a layer 2 ARP

Discovering network devices

Switched networks can be a challenge

• Many interfaces
• Each interface can have a very different configuration
• Identify the port number, MAC address, VLAN ID, etc.

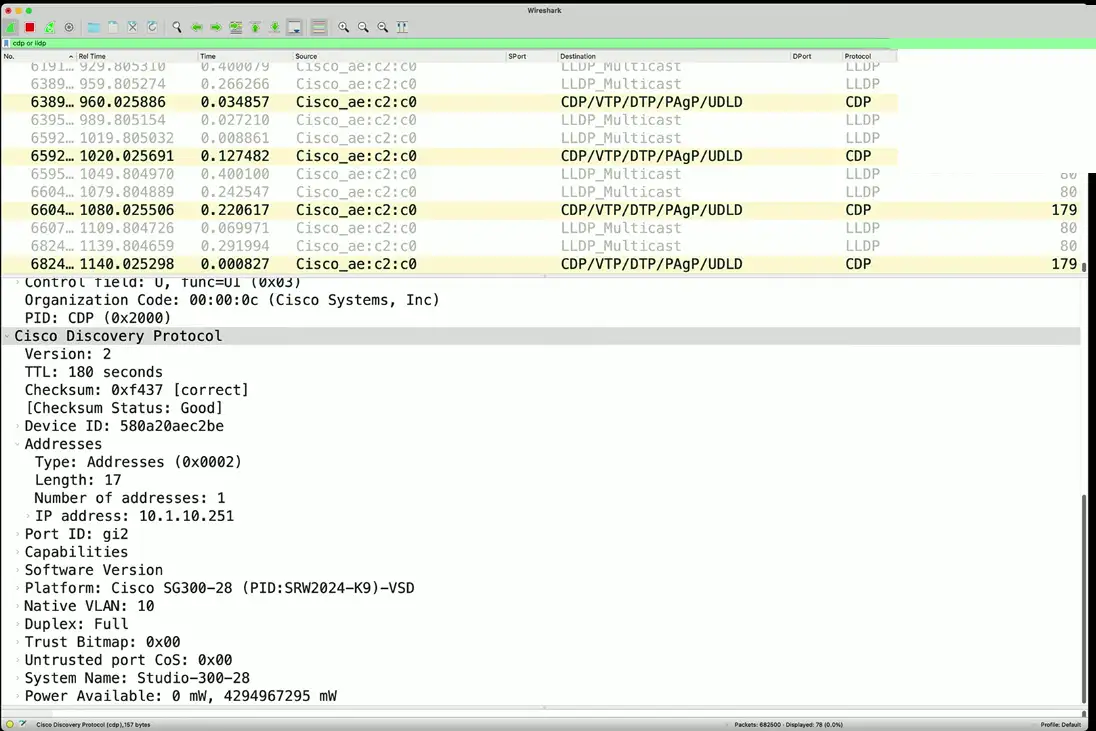

CDP — Cisco Discovery Protocol

• Proprietary Cisco Protocol
• Still very common

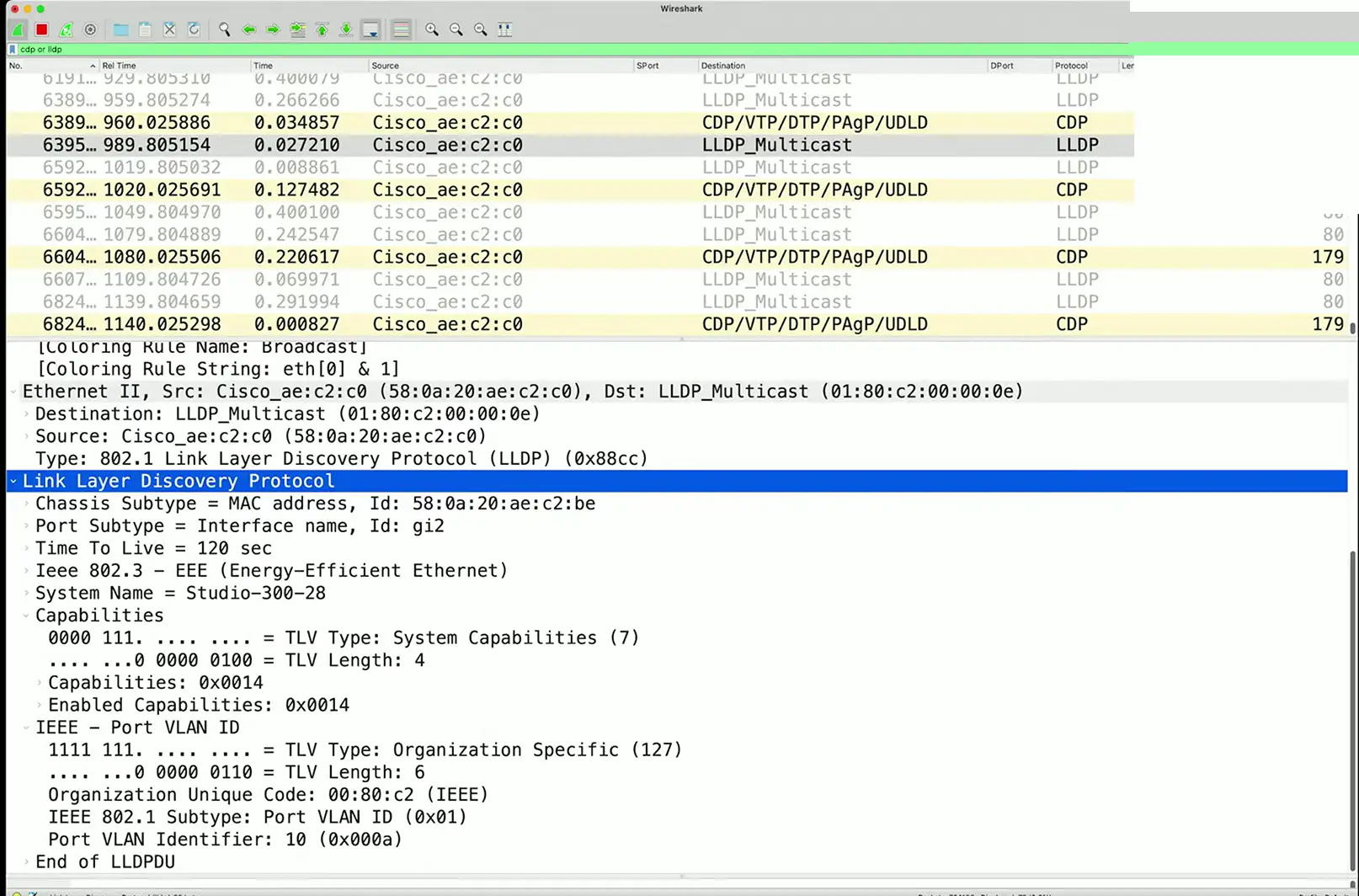

LLDP — Link Layer Discovery Protocol

• Vendor neutral
• A more common discovery method

Speed test sites

Bandwidth testing

• Transfer a file, measure the throughput

Provide useful pre- and post-change analysis

• Test, install firewall/packet shaper, test again

Measure at different times of the day

• Can be automated or manual

Not all sites are the same

• Number of servers (point of presence — POP)
• Bandwidth at the POP
• Testing methodology

ISP sites

• speedtest.xfinity.net
• www.att.com/speedtest

fast.com

Speedof.me

speedtest.net

testmy.net

Command Line Tools

ping

Test reachability

• Determines round-trip time
• Uses Internet Control Message Protocol (ICMP)

One of your primary troubleshooting tools

• Can you ping the host?

traceroute

Determine the route a packet takes to a destination

• Map the entire path
• tracert (Windows) or traceroute (Unix/Linux/macOS)

Take advantage of ICMP Time to Live Exceeded error message

• The time in TTL refers to hops, not seconds or minutes
• TTL = 1 is the first router, TTL = 2 is the second router, etc.

Not all devices will reply with ICMP Time Exceeded messages

• Some firewalls filter ICMP
• ICMP is low-priority for many devices

Flavors of traceroute

Not all traceroutes are the same

• Minor differences in the transmitted payload

Windows commonly sends ICMP echo requests

• Receives ICMP time exceeded messages
• And an ICMP echo reply from the final/destination device
• Unfortunately, outgoing ICMP is commonly filtered

Some operating systems allow you to specify the protocol used

• Linux, Unix, macOS, etc.

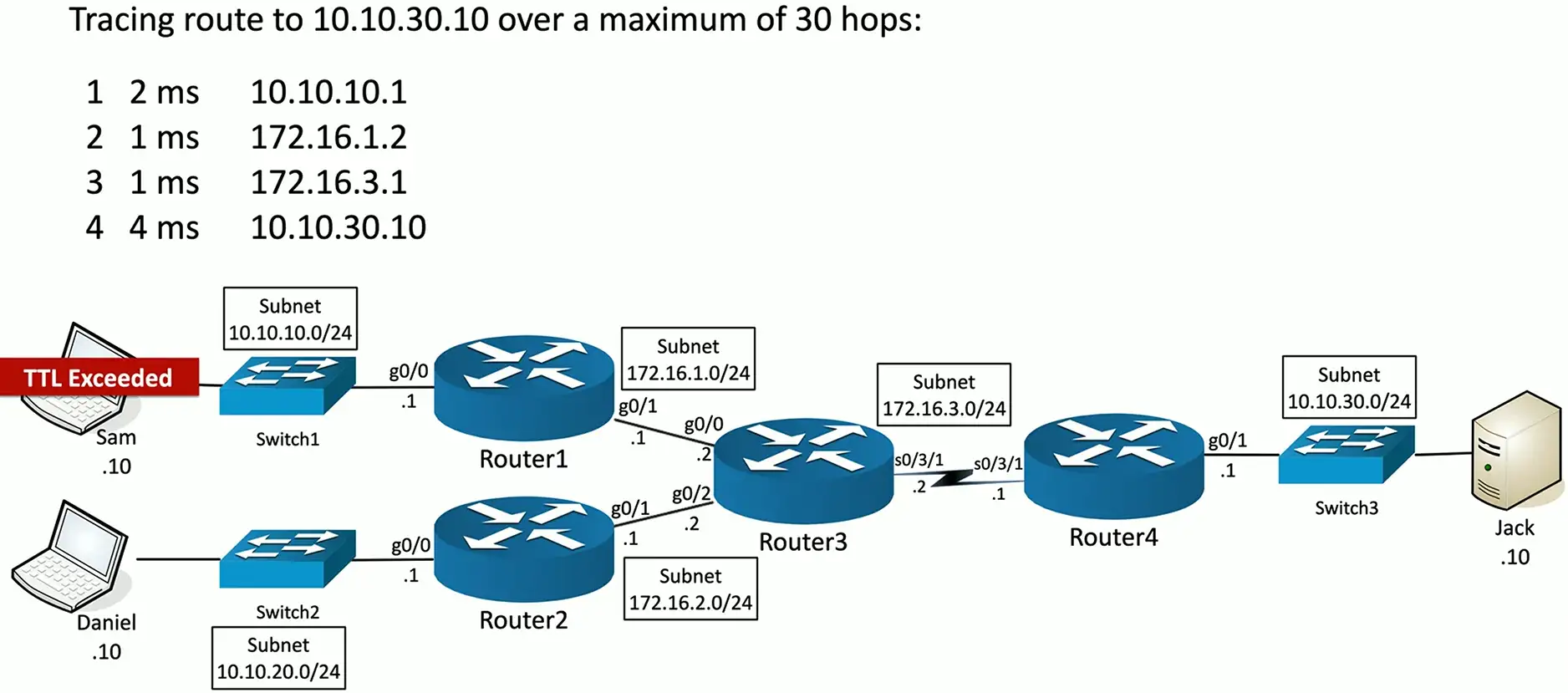

The mechanics of traceroute

nslookup And dig

Lookup information from DNS servers

• Canonical names, IP addresses, cache timers, etc.

nslookup

• Both Windows and POSIX-based
• Lookup names and IP addresses
• Deprecated (use dig instead)

dig (Domain Information Groper)

• More advanced domain information
• Probably your first choice
• Windows: https://www.isc.org/downloads/bind/

tcpdump

Capture packets from the command line

• Very convenient

Available in most Unix/Linux OSes

• Included with macOS, available for Windows (WinDump)

Apply filters, view in real-time

• Quickly identify traffic patterns

Save the data, use in another application

• Written in standard pcap format

Can be an overwhelming amount of data

• Takes a bit of practice to parse and filter

netstat

Network statistics

• Many OSes

netstat -a

• Show all active connections

netstat -b

• Show binaries (Windows)

netstat -n

• Do not resolve name (show only IPs)

ipconfig/ifconfig/ip

Most of your troubleshooting starts with your IP address

• Ping your local router/gateway

Determine TCP/IP and network adapter information

• And some additional IP details

ipconfig — Windows TCP/IP configuration ifconfig — Linux interface configuration ip addresss — The latest Linux utility

Address Resolution Protocol

Determine a MAC address based on an IP address

• You need the hardware address to communicate

arp -a

• View local ARP table

Hardware Tools

Tone generator

Where does that wire go?

• Follow the tone

Tone generator

• Puts an analog sound on the wire

Inductive probe

• Doesn’t need to touch the copper
• Hear through a small speaker

Using the tone generator and probe

Easy wire tracing

• Even in complex environments

Connect the tone generator to the wire

• Modular jack
• Coax
• Punch down connectors

Use the probe to locate the sound

• The two-tone sound is easy to find

Cable testers

Relatively simple

• Continuity test
• A simple wire map

Can identify missing pins

• Or crossed wires

Not usually used for frequency testing

• Crosstalk, signal loss, etc.

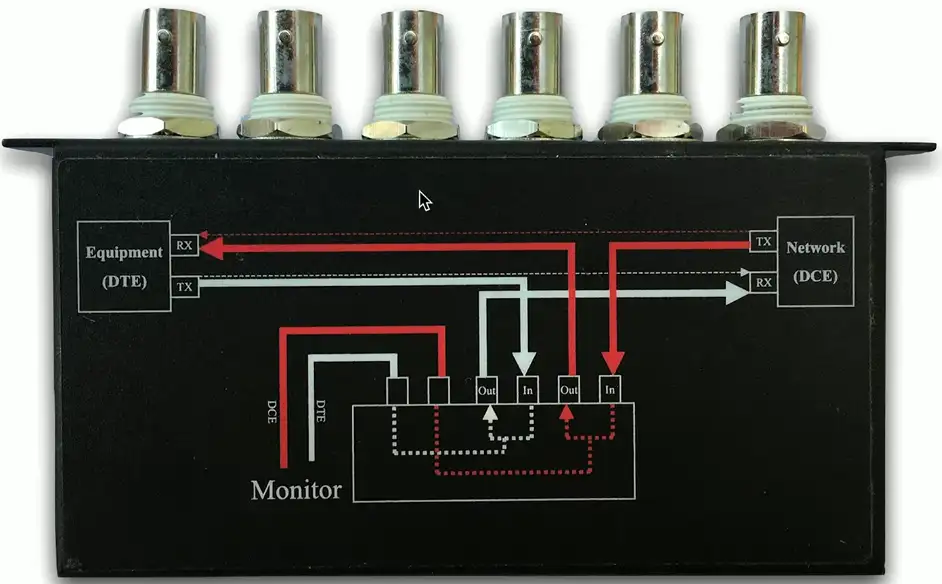

Taps and port mirrors

Intercept network traffic

• Send a copy to a packet capture device

Physical taps

• Disconnect the link, put a tap in the middle
• Can be an active or passive tap

Port mirror

• Port redirection, SPAN (Switched Port Analyzer)
• Software based tap
• Limited functionality, but can work well in a pinch

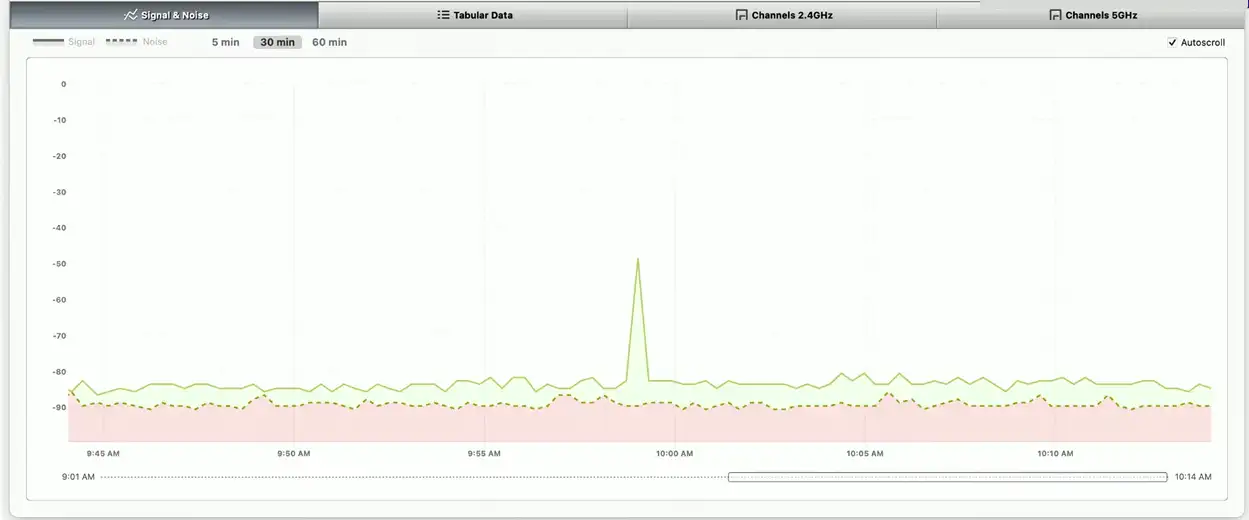

Wireless Survey Tools

• Signal coverage
• Potential interference
• Built-in tools

Wi-Fi Analyzer

Hardware-based Wi-Fi analysis

• Avoids OS limitations
• View all the 802.11 information in the air

View Wi-Fi information

• Frequencies/channels, signal strength, access points, interference, wireless devices

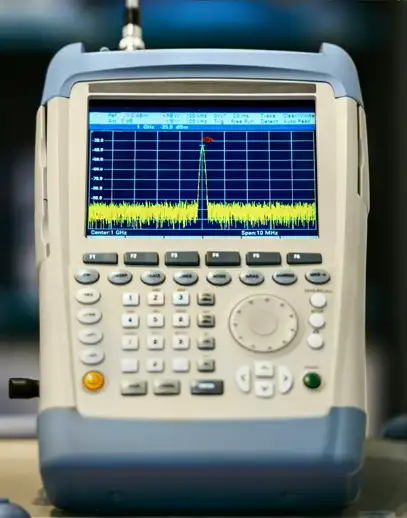

Get frequency information from a spectrum analyzer

• Useful when many devices are part of the bigger picture

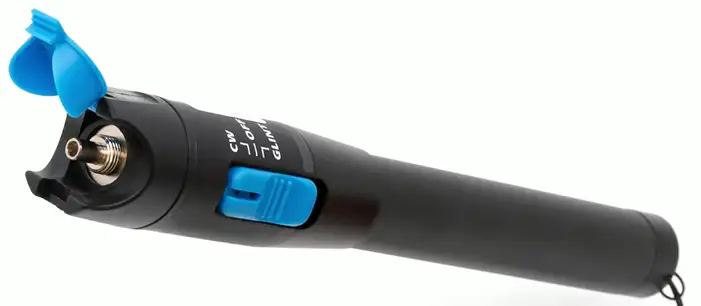

Visual fault locator

A flashlight for optical fiber

• Shine a bright light down the fiber

Light will show through the fiber jacket where fiber is broken

• You may need to turn the lights out

Relatively low-tech

• But very efficient

Basic Network Device Commands

Basic Platform Commands

There are some commands that are common across switch and router manufacturers

• It’s remarkable how similar they can be
• Once you know one, you effectively know them all

Not all devices use exactly the same syntax

• Refer to the documentation for specifics
• The fundamentals are the same, however

Learn the technology

• The commands will come naturally

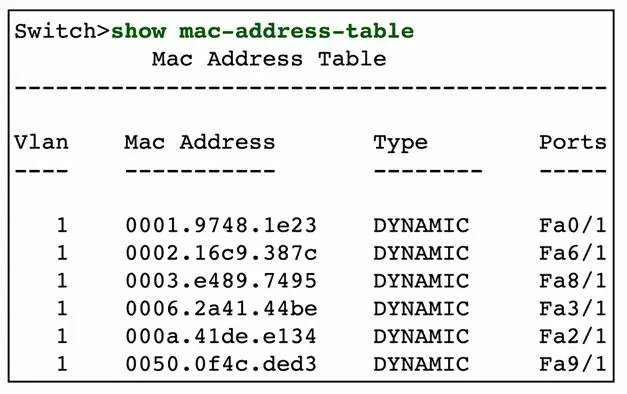

show mac-address-table

All switches maintain a MAC address table

• Media Access Control addresses
• The Ethernet hardware

View the MAC address table

• The show command
• Many options are available for showing information

Switch forwarding uses this table

• This MAC address is connected to this interface

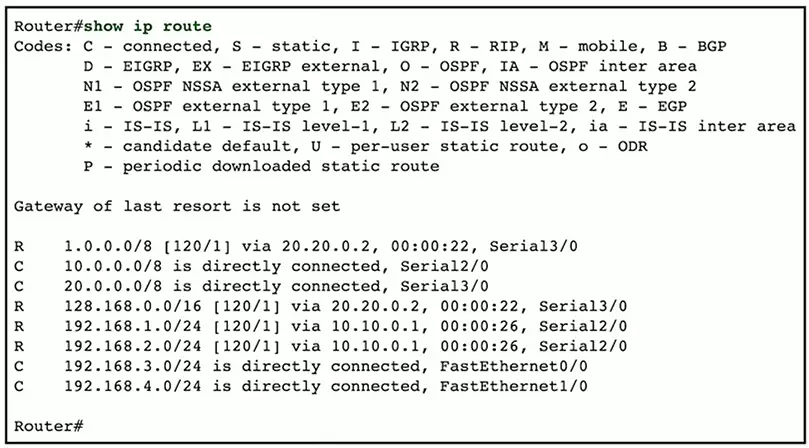

show route

Routers maintain a list of next hops

• The routing table

View the current routing table

• Dynamic routes can change
• Static routes must be manually configured

Use this list to find errors in the routes

• Or use the table to manually determine the next hop
• Useful when troubleshooting

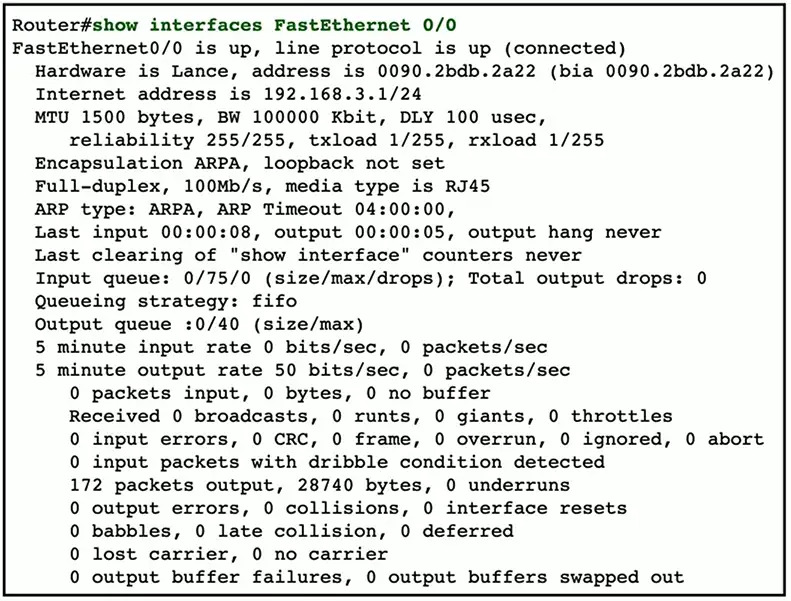

show interface

The status of an interface

• Up, down, connected, disabled, speed, duplex, etc.

View configuration information

• Speed, MTU, encapsulation, etc.

Identify errors

• Problems with the interface
• CRC errors, drops, input, and output errors

View overall performance

• Total frames, broadcasts
• Queue capacity

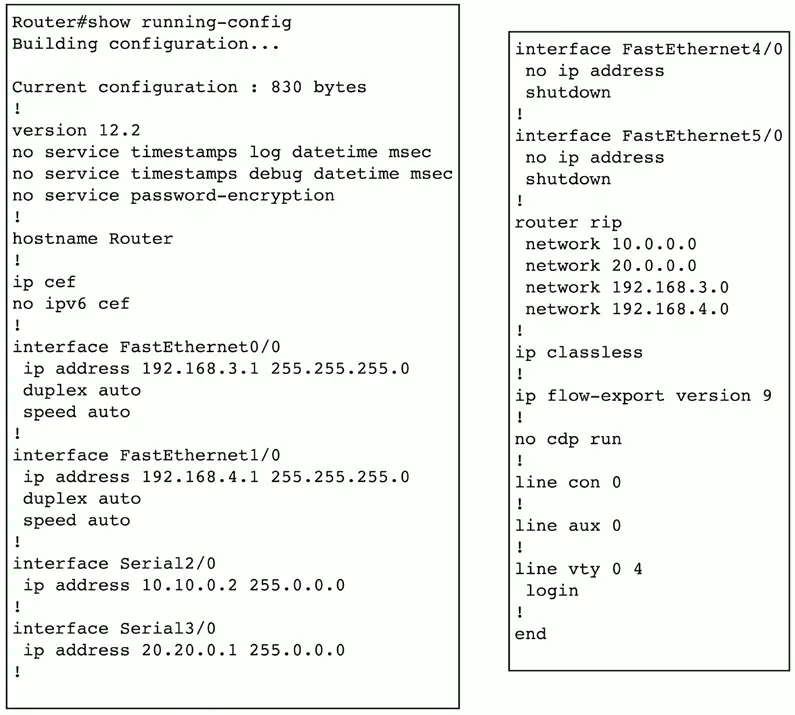

show config

Every device has a configuration

• View the device settings

Display the currently running configuration

• Or configuration settings stored on the device
• Everything in one place

Requires a bit of training

• Learn the syntax

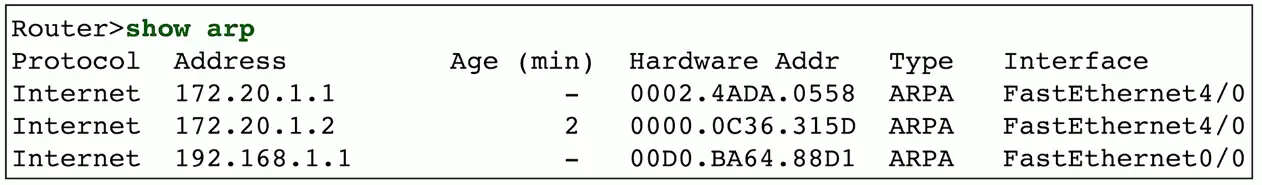

show arp

View ARP protocol information

• Address Resolution Protocol

Useful when troubleshooting connectivity

• Do we see the MAC address associated with an IP address?

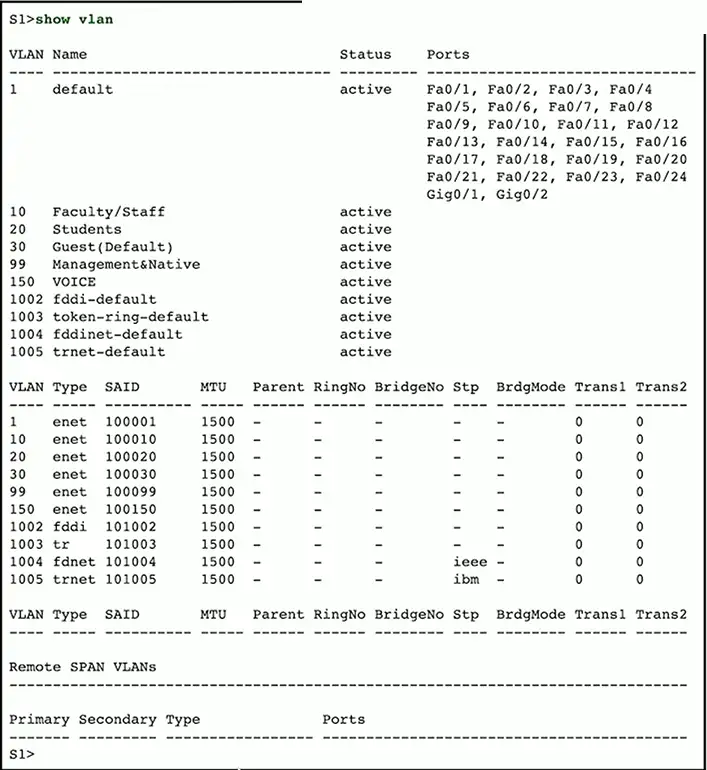

show vlan

View the VLANs associated with switch interfaces

• Virtual Local Area Network ID

View default VLAN ID and assigned VLAN ID numbers

• Confirm the assignment for each interface

show power

Display power-related information

• Power supply status, Power over Ethernet usage

Monitor power usage

• Available, used, and remaining power

Manage PoE devices

• Plan for future PoE devices and troubleshooting power issues
